Item name Contents
Computer name Computer name of the PC that stores the program list.
Ref. Local path of the folder, into which the program list is saved.
To make the selection with the computer name, this PC needs to be registered in Line Config.
To register the PC into Line Config, “IT-System Client” needs to be installed into the PC.
* For details, see the “IT-System Configuration Manual”.
Recommended setting
Item name Contents
Computer name Computer name of the PC, into which P-Tool has been installed.
Ref. Line folder of relevant line in the installation folder
Example) C:¥YFacT¥Line1
Program List Editor of P-Tool creates the program list in the line folder. As the line folder of
P-Tool is specified as reference destination, it can be interlock-used.
4.1.2 Operation procedure
Click [Setup Board]-[Open Board] button for a line you want to perform the setup.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
22/62
Select “Program List” in the “BoardData Type” combo-box.
The contents of the program list (ProgramList.csv) at the program list reference destination
are displayed.
To display other program list, select “Program List” in the “File Name” combo-box.
* The files with file extension “.csv” that exist at the program list reference destination are
selectable.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
23/62

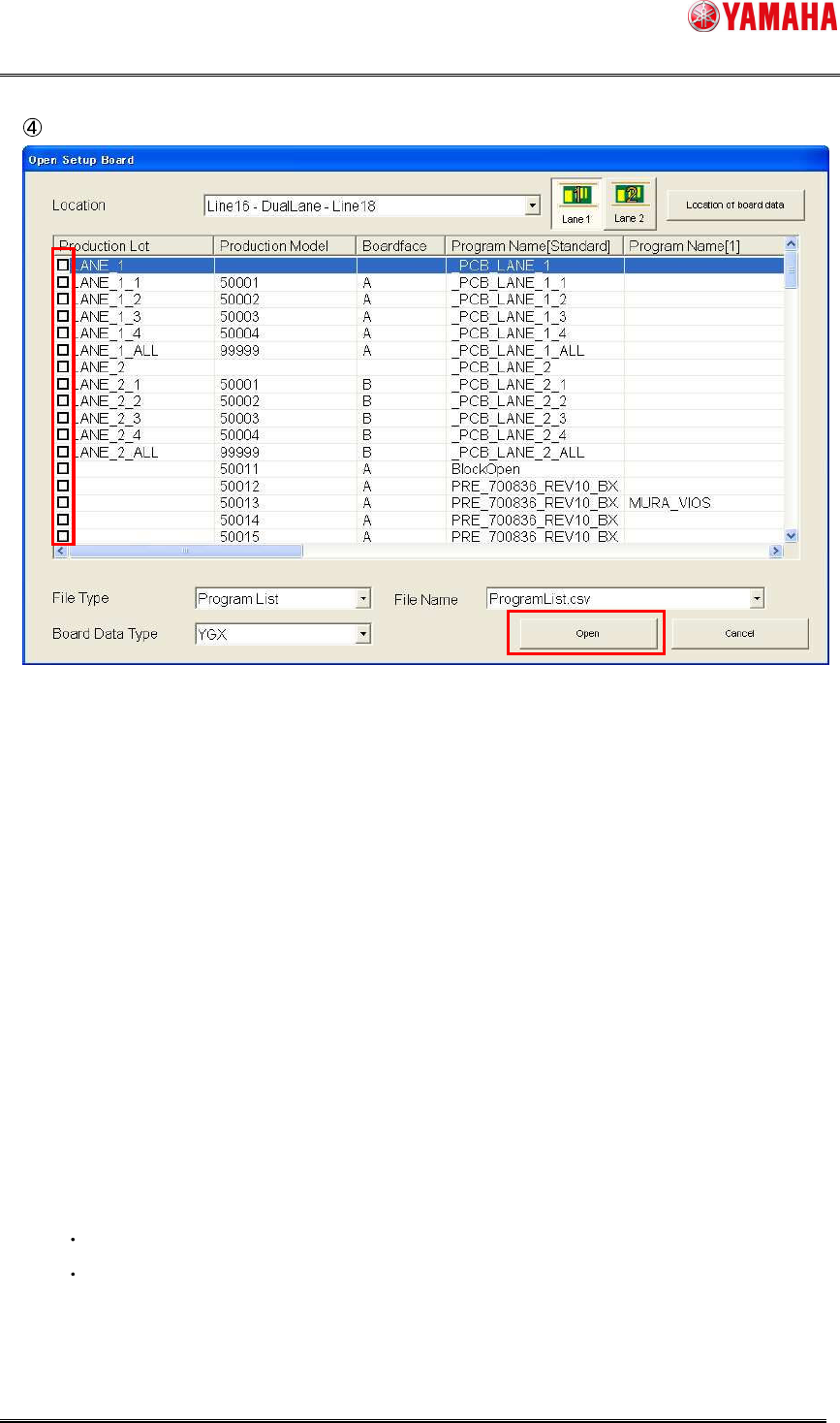

Select a production lot for the setup from the program list, and then click the [Open] button.
Board data reference destination for target
The board data reference destination selected in the “Location” combo-box becomes the
target.
* When the multi lane each folder function is set enabled, the board data reference
destination selected using the [Lane 1] button/[Lane 2] button becomes the target.
Board data type for target
The board program of the board data type selected in the “BoardData Type” combo-box
becomes the target.
When “YGX (Combined)” is selected, the combine board (CYGX) with the file name that
matches to the program name of the program list is loaded.
Board program name for target
Any of the following program names becomes the target according to the "Contrast
Program name num" of each machine application setting that is registered in IT-System
Server.
Program name [Standard]
Program name [1] to Program name [9]
* When “OP003: Auto Pgm Change Over” is used, the program name number conforms to
the "Contrast Program name num" in the option detail setting.
