* The extract data type name of the code format for the Auto Pgm Change Over function was
partially changed.
Extract Data Type Group New name Old name
Sign Board Setup Sign Board Production Lot Sign Board Lot Name
Board ID Setup Board ID Production Lot Board ID Lot Name
[ID Editor]-[Register ID Format]-[Specify Reading Data]-[Select Data]-[Sign Board Setup]
[ID Editor]-[Register ID Format]-[Specify Reading Data]-[Select Data]-[Board ID Setup]
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
49/62
5.3.1.2 Settings
When using “OP003: Auto Pgm Change Over”, the program list reference destination setting
procedure may vary from normal procedure. The “Auto Pgm Change Over” function operates
according to the contents set in Line Config of the IT-System Server. These settings are common
to “S-Tool: Setup Navi”.
Conceptual diagram
Y.FacT: P
-Tool
IT-System Server
Y.FacT: S
-Tool
Setup Navi
Program List Editor
Line Config
Production lot selection
Reference destination setting
Edit
Production lot selection
Program list
Production lot
Line 1
Program list
Production lot
Line 2
Line (mounter printer)
Line folder
Path and file name setting
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
50/62

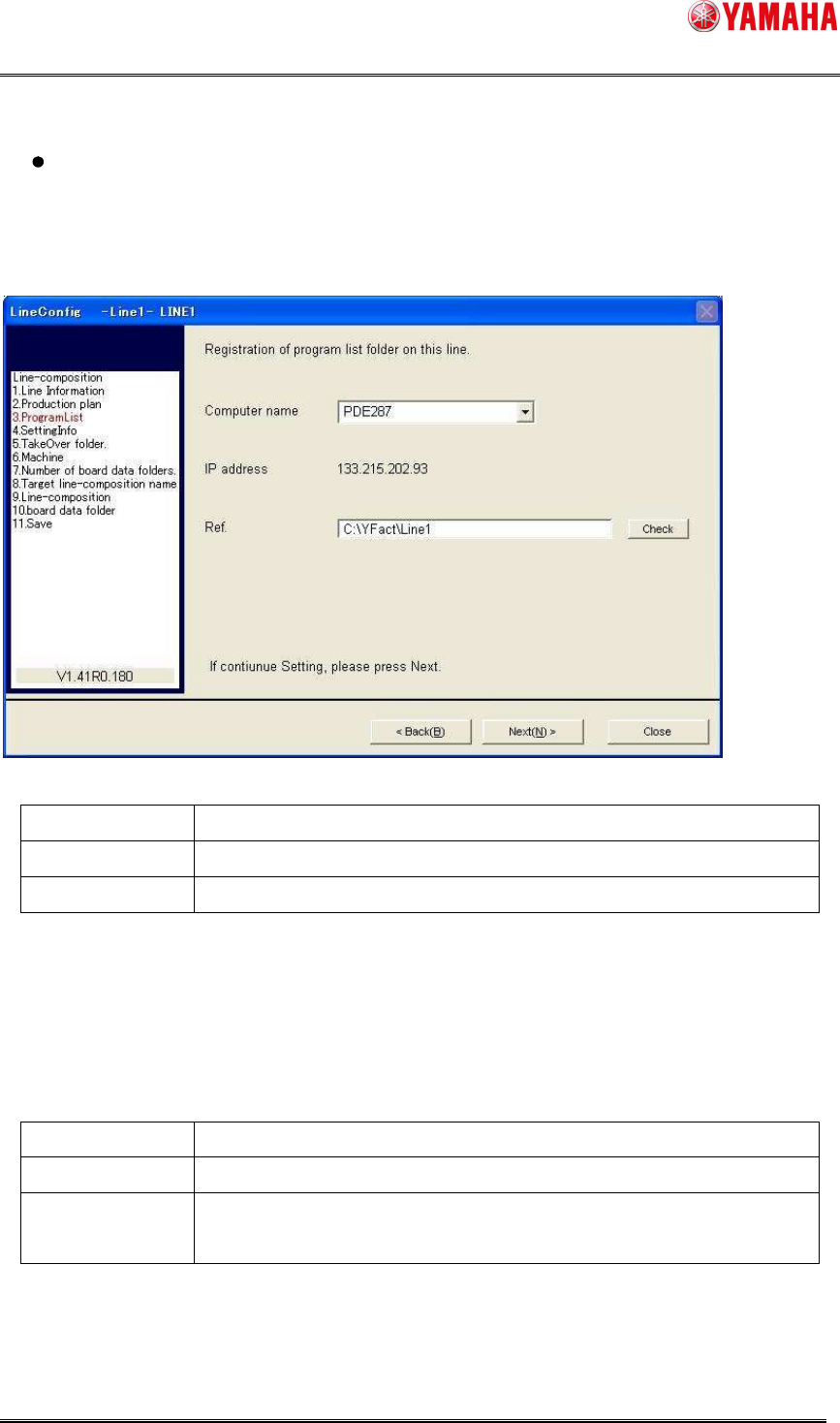

Program list reference destination
To allow the program list created using “3. P-Tool: Program List Editor” to be referred to by
“OP003: Auto Pgm Change Over”, set the program list reference destination using Line Config.
* For details about Line Config, see the “Server Utility Software User’s Manual”.
Item name Contents
Computer name Computer name of the PC that saves the program list.
Ref Local path of the folder that saves the program list.
To select the computer name, it is necessary that this PC has been registered in Line Config.
To register the PC into Line Config, it is necessary that “IT-System Client” has been installed
into this PC.
* For details, see the “IT-System Configuration Manual”.
Recommended setting
Item name Contents
Computer name Computer name of the PC, into which P-Tool has been installed.
Ref Line folder of relevant line in the installation folder.
Example) C:¥YFacT¥Line1
When using Program List Editor of P-Tool, a program list is created in the line folder.
As the line folder of P-Tool is specified as reference destination, it can be interlock-used.
