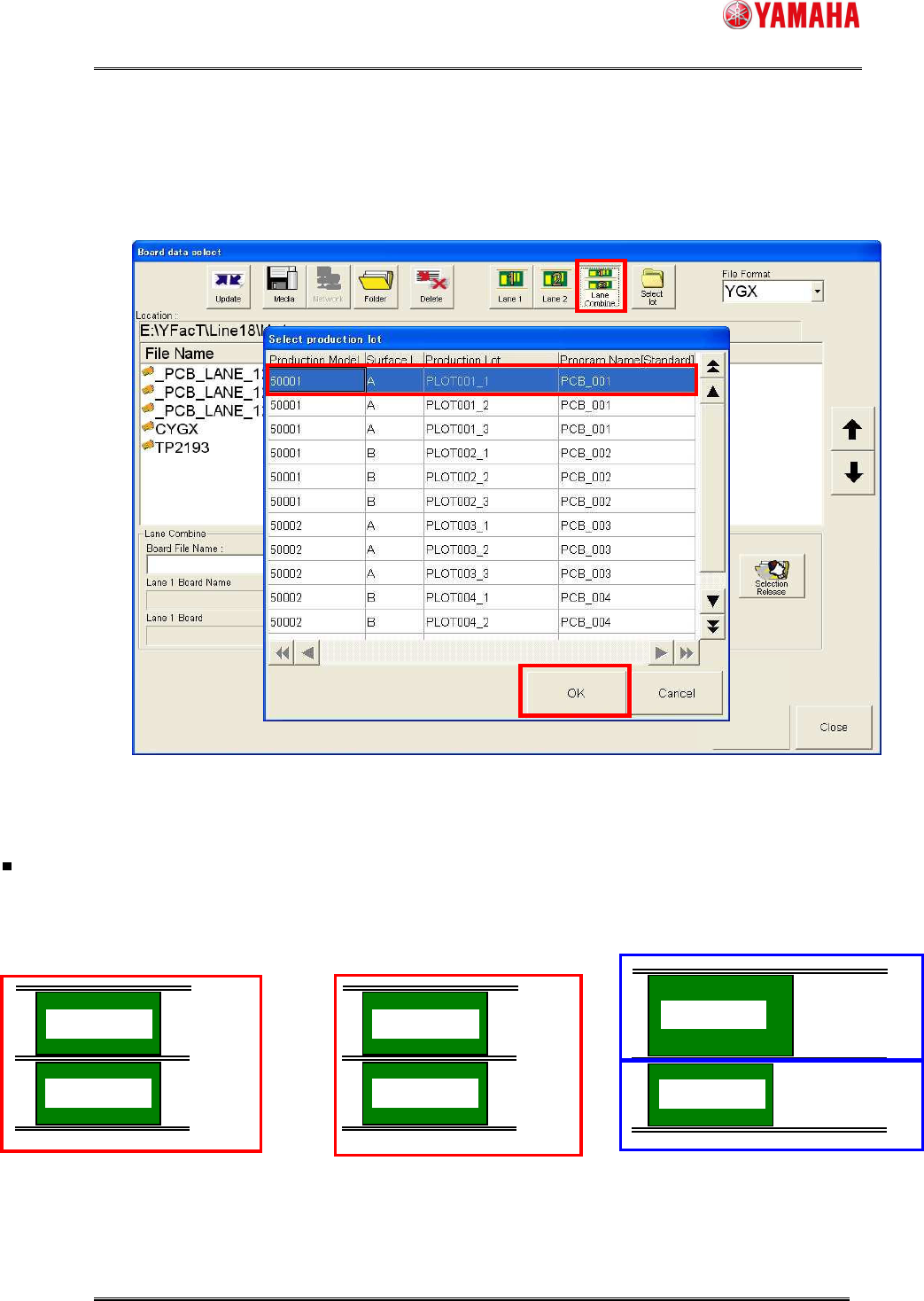

When the [Lane Combine] button is selected;
The normal [Select production lot] dialog box will appear.
Select a production lot and click the [OK] button. The combine board (CYGX) is then loaded.
The combine board (CYGX) with the file name that matches to the program name of the
program list is then loaded.
Applicable to one production lot pattern by combined board
* Combine board data with the file name that matches to
the program
name of the selected production lot is loaded.
TYPE-1
Same board
* Same production model and same surface
TYPE-N
Different production model
TYPE-2
Same width and different production model
* Mainly, same production model and A/B surfaces
Board 1-A surface
Board 1-A surface
Board 1-B surface
Board 1-A surface
Board 1-A surface
Board 2-A surface
Not applicable to individual
production lot pattern in board units.
Production lot B
Production lot A
Production lot A
Production lot A
* This pattern is made applicable by
loading individual board.
Relationship between production lot and combine board (CYGX)
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
41/62

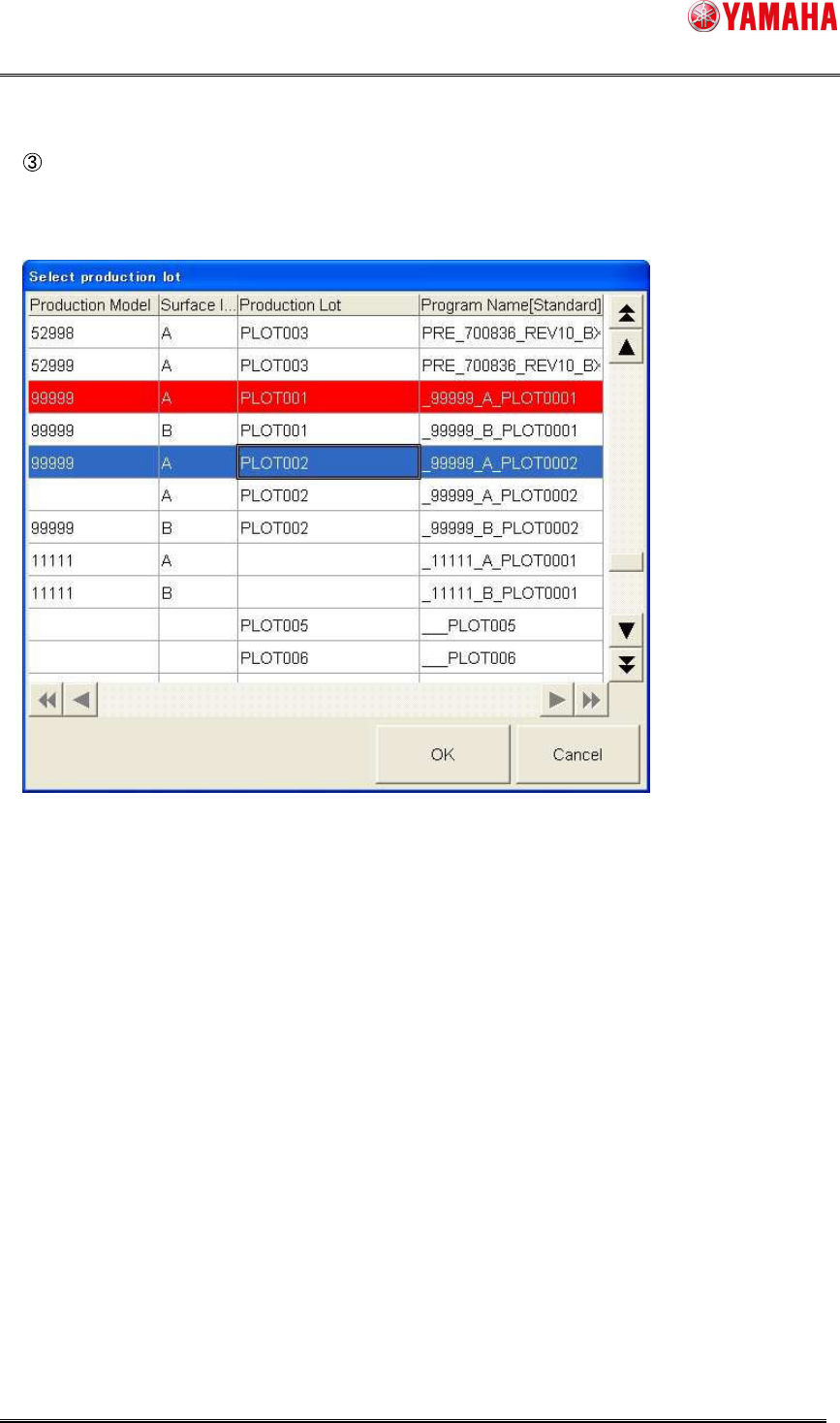

When [Select production lot] dialog box is displayed again after having read a board
program by production lot select, the line of the production lot that has been already read is
displayed with red.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
42/62
5.1.2.2 Log
The contents of the production lot are output to the logs shown below.
Additionally, “Production Model (ASSY)” and “Surface Info” are also output.
[MIS]-[Error log] screen
[MIS]-[Board log] screen
[MIS]-[Program log] screen
Item name Contents
Production Lot Production lot of the allocated program list
Production Model “Production Model (ASSY)” of the allocated program list
Surface Info “Surface Info” of the allocated program list
* The log saving conforms to each log.
* When the production lot operation is disabled, the Log screen is not displayed.
