SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
32/62
Check on the [Enable production lot operation] check box.
As the check box is checked on, the setting items become valid.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
33/62
Set the items as follows.
Item name Contents
Program list file path Specify a path for the target program list.
Program list file name Specify a file name for the target program list.
Contrast Program name num Select a board program name to be used for the own
equipment from [Standard] or [1] to [9].
The program list can be made as file that is common to the line.
Since the same file format as “OP003: Auto Pgm Change Over” is used, the common file
can be specified.
The contents of this setting are applicable when “OP003: Auto Pgm Change Over” is set
disabled. When “OP003: Auto Pgm Change Over” is set enabled, this setting conforms to the
setting of “OP003: Auto Pgm Change Over”.
* For details about the “Auto Pgm Change Over” function, see the “IT Option Auto Pgm
Change Over User’s Manual”.
Recommended setting
Item name Contents
Program list file path Line folder of relevant line in the P-Tool personal computer
Example) ¥¥P-ToolPC¥YFacT¥Line1
Program list file name ProgramList.csv
Contrast Program name num [Standard]
When using Program List Editor of P-Tool, the program list is created in the line folder. As the
line folder of P-Tool is specified as reference destination, it can be interlock-used.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
34/62

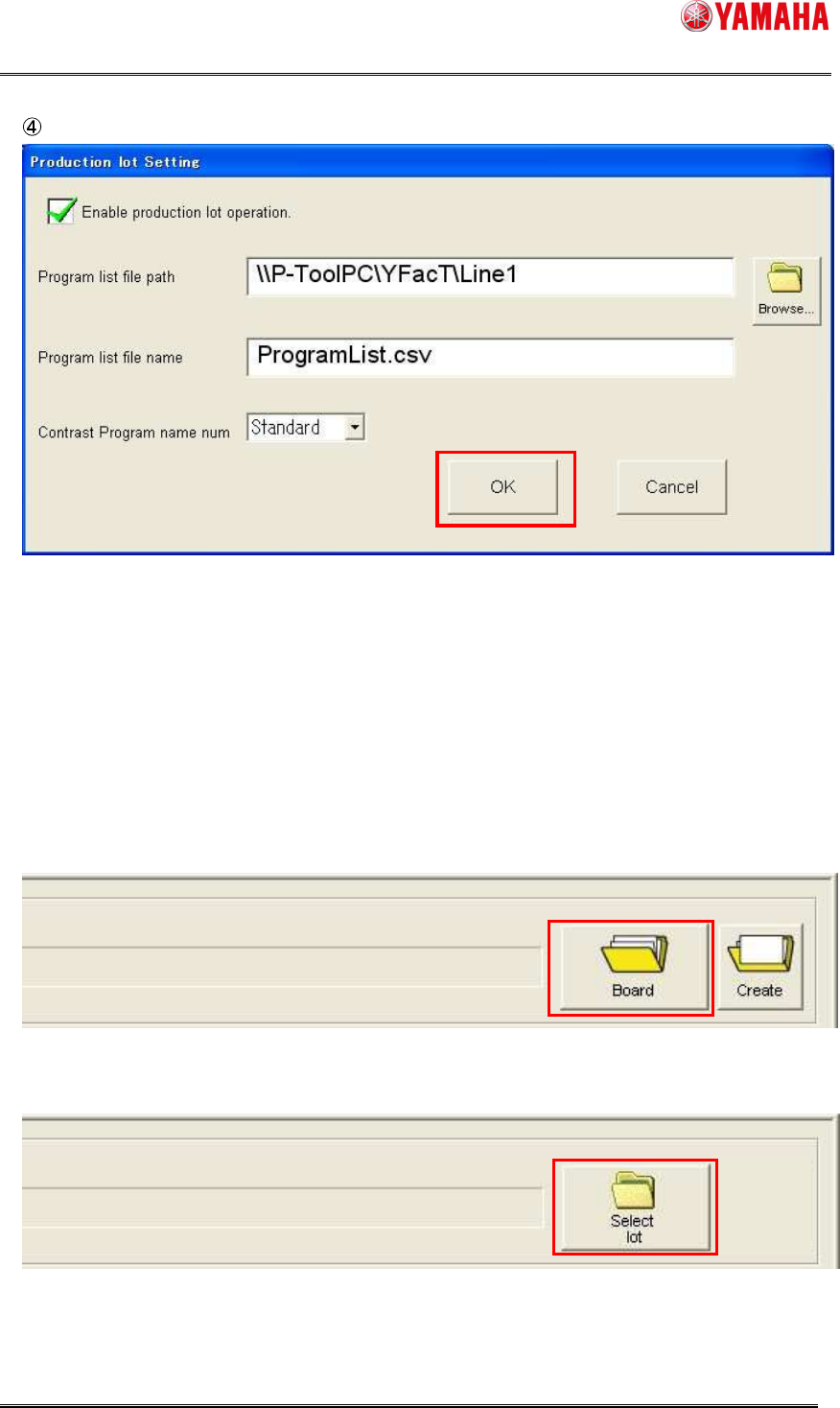

Click the [OK] button to exit the Setting screen.
When the production lot operation is enabled, the [Board] button changes to the [Select lot]
button.
In addition, the [Create] button will be hidden.
* The display conditions for the changed [Select lot] button are the same as those for the
[Board] button.
When the production lot operation is disabled;
When the production lot operation is enabled;
