Dual lane machine
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
55/62
5.3.2.2 MANUAL SELECT
As the protection lot is selected manually in the top machine of the line, the board program can
be changed. Furthermore, when the downstream machine operates in the “take over” mode, the
board program of the overall line can be changed as the downstream machine takes over the
production lot.

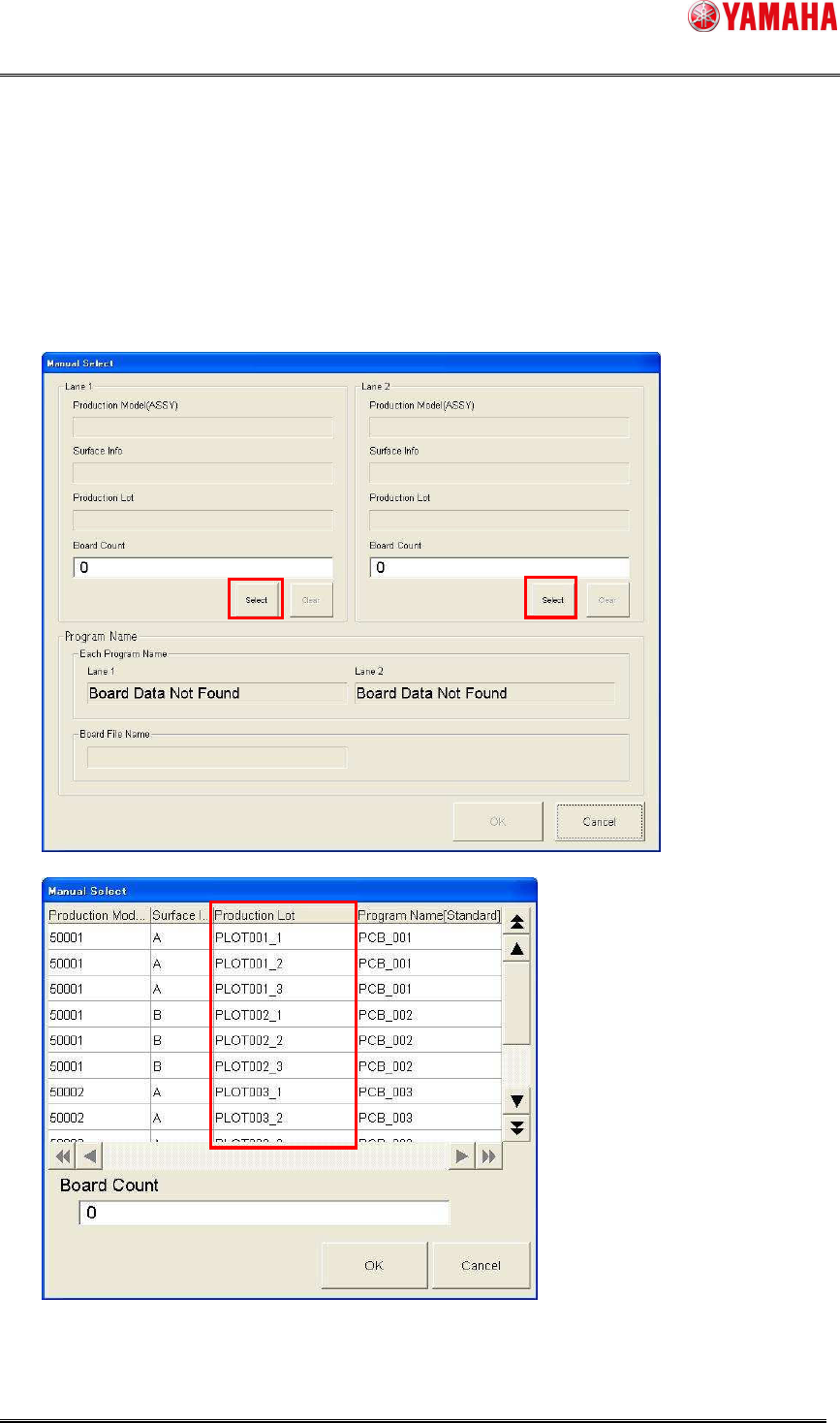

The production lot is displayed in the “Manual Select” dialog box.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
56/62
5.3.2.3 BOARD ID
As the fixed type reader (barcode reader or 2D code reader) installed at the exit of the
upstream process reads the production lot of the board ID attached to the board that arrives, the
board program is changed automatically. Furthermore, when the downstream machine operates
in the “take over” mode, the board program of the overall line can be changed as the
downstream machine takes over the production lot.

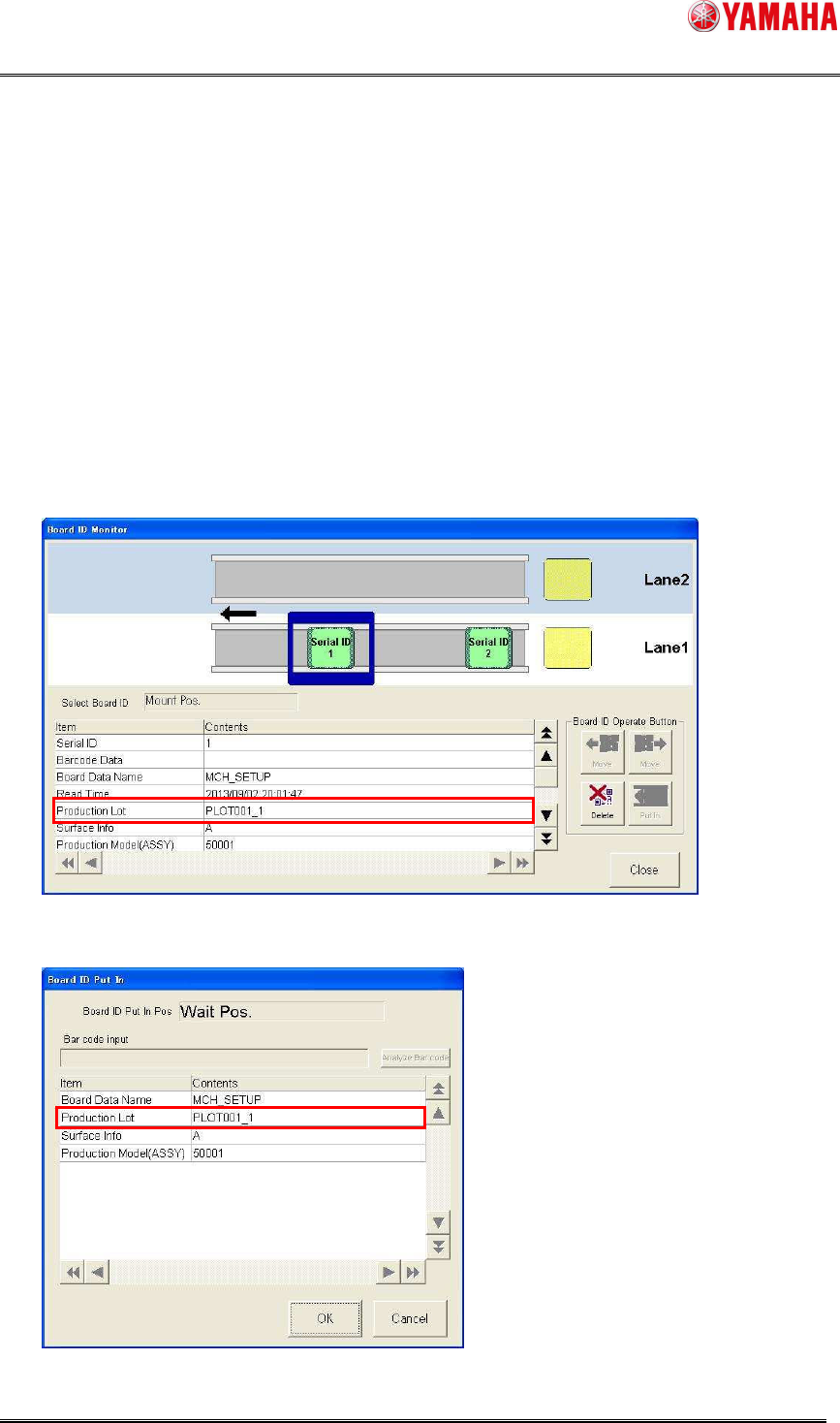

The contents of the production lot of the board ID that has been read are displayed in the
dialog box.
* The item name was changed from “Lot ID” to “Production Lot”.
Board ID Monitor
Board ID Put In
