2.3 Operation procedure
For details about how to operate the production lot, see each Chapter.
See “3. P-Tool: Program List Editor”.
See “4. S-Tool: Setup Navi”.
See “5. Production: Mounter”.
2.4 Restrictions
The number of machines to be simultaneously connected to the reference destination
PC of the program list is restricted as follows.
When the OS of the program list reference destination PC is WindowsXP, 10 machines
can be connected simultaneously.
When the OS of the program list reference destination PC is Windows7, 20 machines
can be connected simultaneously.
* If the number of simultaneous connections exceeds this limit, it is necessary to change
the reference destination to Windows Server OS and prepare CAL (Client Access
License) for the number of connections.
Add a production lot to the program list.
Select the production lot and perform the offline setup.
Select the production lot and perform the production.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
8/62
3. P-Tool: Program List Editor
3.1 Creating a program list
When performing the operation with the production lot, it is necessary to associate the
production lot with the board program name. This association information is used to allocate the
production board program name from the selected production lot information.
* For details about how to operate Program List Editor itself, see the “Y.FacT Common
Functions User’s Manual”. This section describes how to associate the production lot with the
program.
3.1.1 About program list
This list associates the production lot with the board program name. It is preconditioned that
the program list consists of one list per line.
Example
The recommended file name for the program list is “ProgramList.csv”.
3.1.2 Starting up Board Explorer
“Program List Editor” that allows you to edit the program list is started up from “Board Explorer”.
From the [Start] menu, select [YAMAHA Factory Tools P/M/S-Tool] [Board Explorer] to start up
Board Explorer.

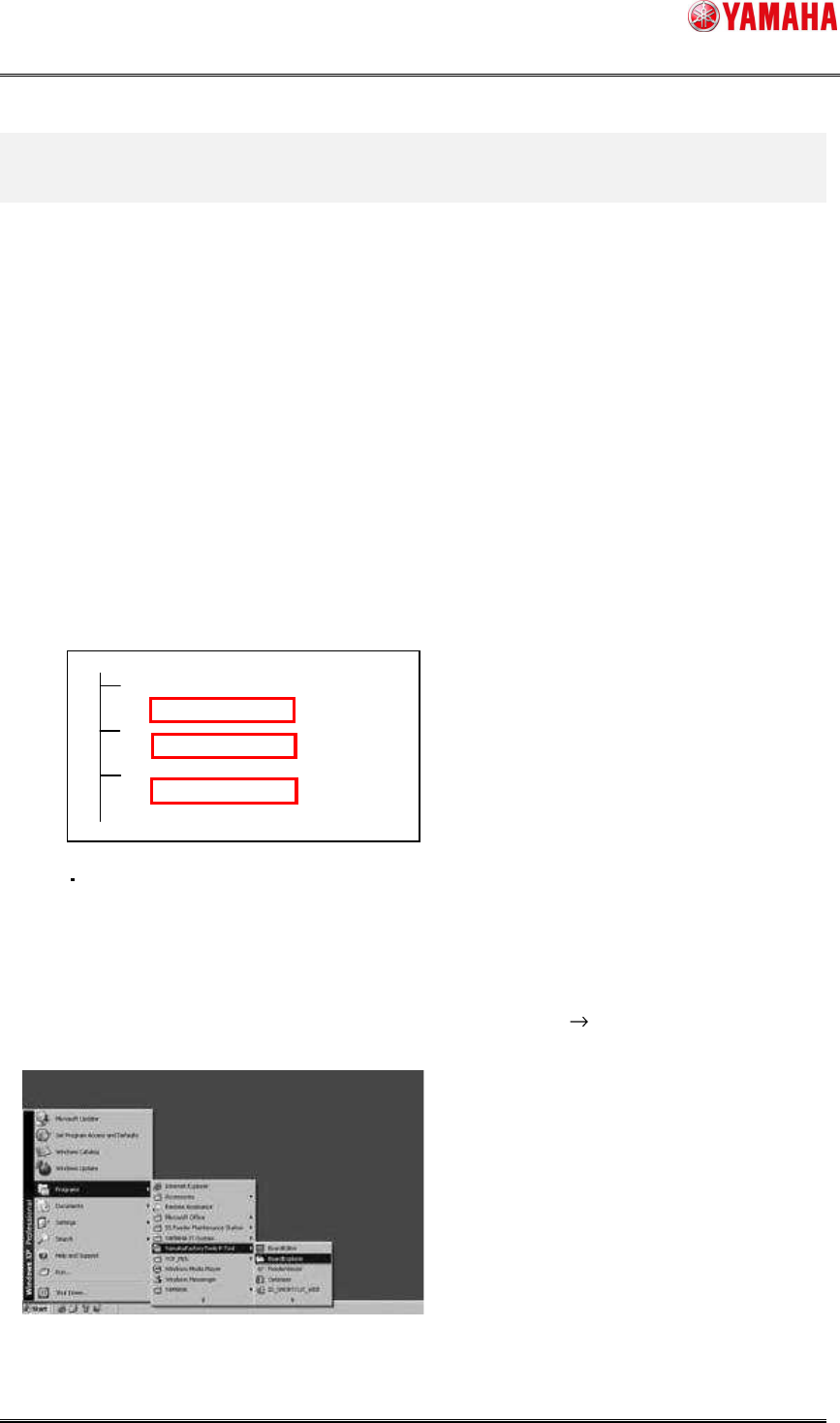

C:¥YFacT
Line1
ProgramList.csv
Line2
ProgramList.csv
Line3
ProgramList.csv
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
9/62
3.1.3 Starting up Program List Editor

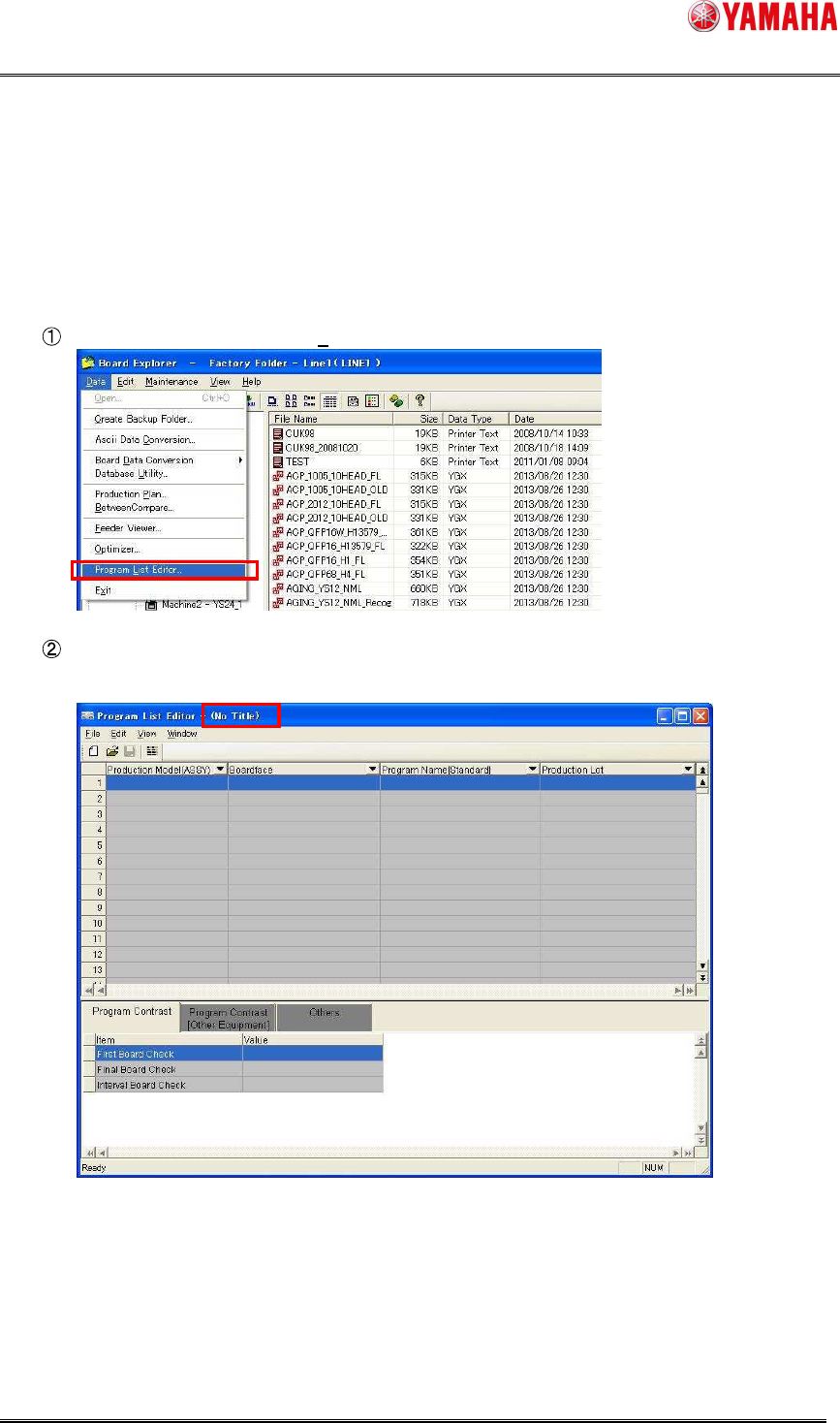

There are three kinds of startup methods available, “line non-designation startup”, “line
designation startup”, and “program name registration startup”.
1. “Line non-designation startup”
Select [Program List Editor (L)] from the [Data (P)] menu.
Program List Editor will start up without loading any program list.
(It is necessary to select a desired program list so as to load it.)
