(B01-13) Electrode Group Dat a The following parameters can be specified to classify some electrodes into a group(s). Fig. 44 (1) T ype No. Set the electrode type data No. related to the specified group. Unit: T ype Dat …
(B01-12) Electrode Type Data
Set the shape, the dimension, etc., of the electrode.
Fig. 40
(1) Shape
Set the shape of the electrode.
Only "Round" can be selected at present.
(2) Dim 1 [mm]
Set the diameter of the electrode.
Unit: mm
Data Input Range: 0.001 to 9.999
Fig. 43
Fig.42
Dim 1 [mm]
0.001
Fig.41
Shape
Round
0307-001 21 Tg0930-PM-SO
5.2 Parameters (B01-12)
(B01-13) Electrode Group Data
The following parameters can be specified to classify some electrodes
into a group(s).
Fig. 44
(1) Type No.
Set the electrode type data No. related to the specified group.
Unit: Type
Data Input Range: 1 to 3
(2) Gp Posn X [mm], Y [mm]
Set the center position of the electrode group based on the center of
the mold.
Unit: mm
Data Input Range:
X: -99.999 to +99.999
Y: -99.999 to +99.999
As the center of the electrode group is located at the center of the mold in
normal cases, the coordinates X and Y become "0" (zero). (X, Y = 0,0)
Fig. 47
Fig.45
Type No.
1
Note
0307-001 22 Tg0930-PM-SO
5.2 Parameters (B01-13)
Fig.46
Gp Posn
X [mm]
+00.000
Gp Posn
Y [mm]
+00.000

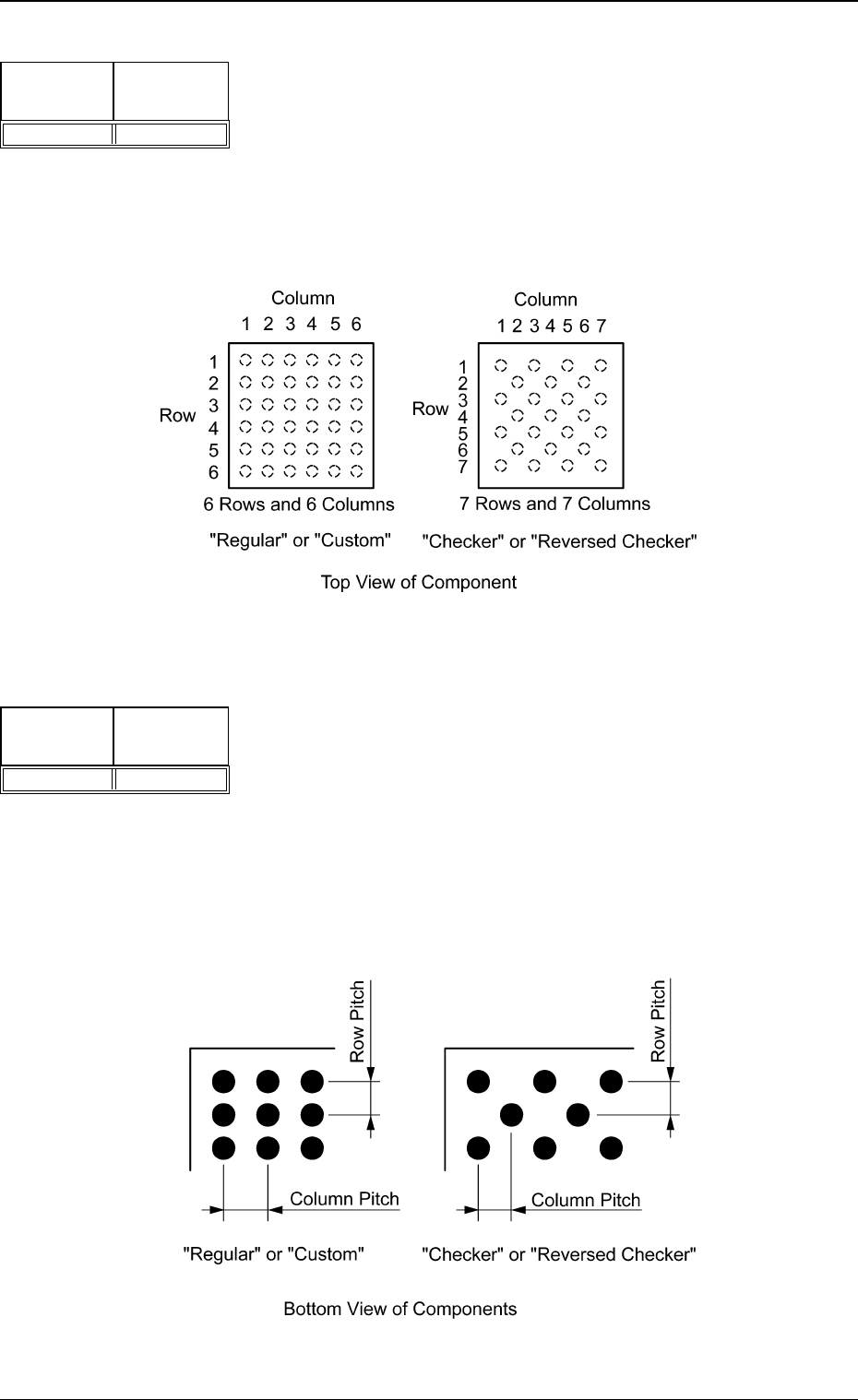

(3) # Of Rows [pcs.], # Of Cols [pcs.]
Set the number of rows and columns in which the electrodes are
arrayed.
Data Input Range: 1 to 255
Fig. 49
(4) Row Pitch [mm], Col Pitch [mm]
Set the pitches at which the electrodes are arrayed in each row and
column.
Unit: mm
Data Input Range: 0 to 99.999
Fig. 51
5.2 Parameters (B01-13)
Fig.48
# Of Rows
[pcs.]
001
0307-001 23 Tg0930-PM-SO
# Of Cols
[pcs.]
001
Col Pitch
[mm]
00.000
Row Pitch
[mm]
00.000
Fig.50
