Front  Lighting  1  (Inverted) Front  Lighting  2 (Coaxial) Front  Lighting  3 (BGA) Back  Lighting 12.1 Parts Location Recognition Lighting Section (TCM-X1 10J) 0307-001-(M810AEB--A0001) 70 Tg0930-PM-SO

0307-001 -(M801AEB--A0002) 69 Tg0930-PM-SO

12. Material

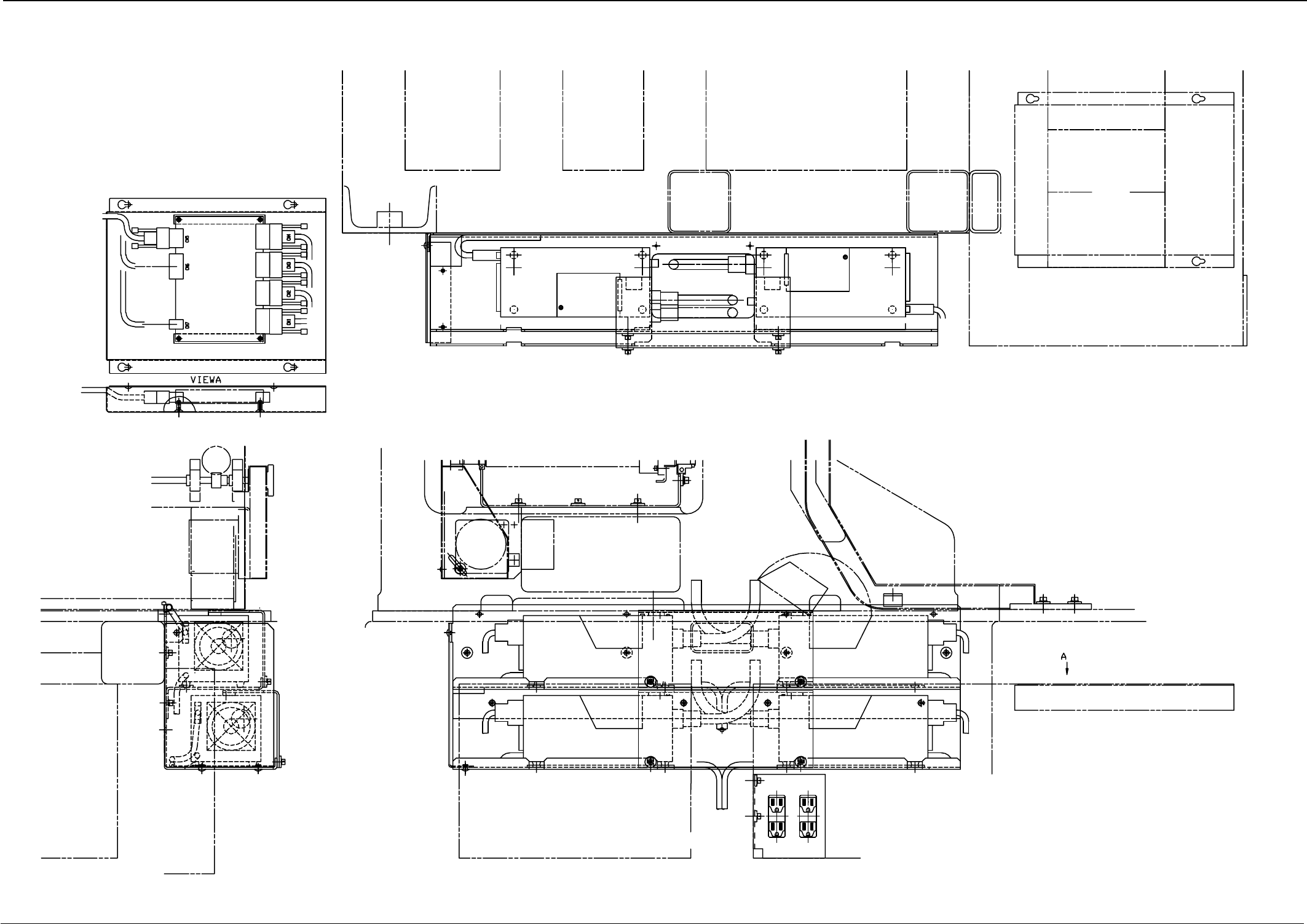

12.1 Parts Location

Recognition Lighting Section (TCM-X210)

12. Material

FrontLighting3(Ring)

Option

BackLighting

FrontLighting1(Ring)

FrontLighting2

(Coaxial)

Lighting

Controller

Option

Front

Lighting3

(Ring)

Front

Lighting2

(Ring)

Front

Lighting1

(Ring)

Back

Lighting

(Ring)

Front

Lighting3

(Ring)

FrontLighting1

(Inverted)

FrontLighting2

(Coaxial)

FrontLighting3

(BGA)

BackLighting

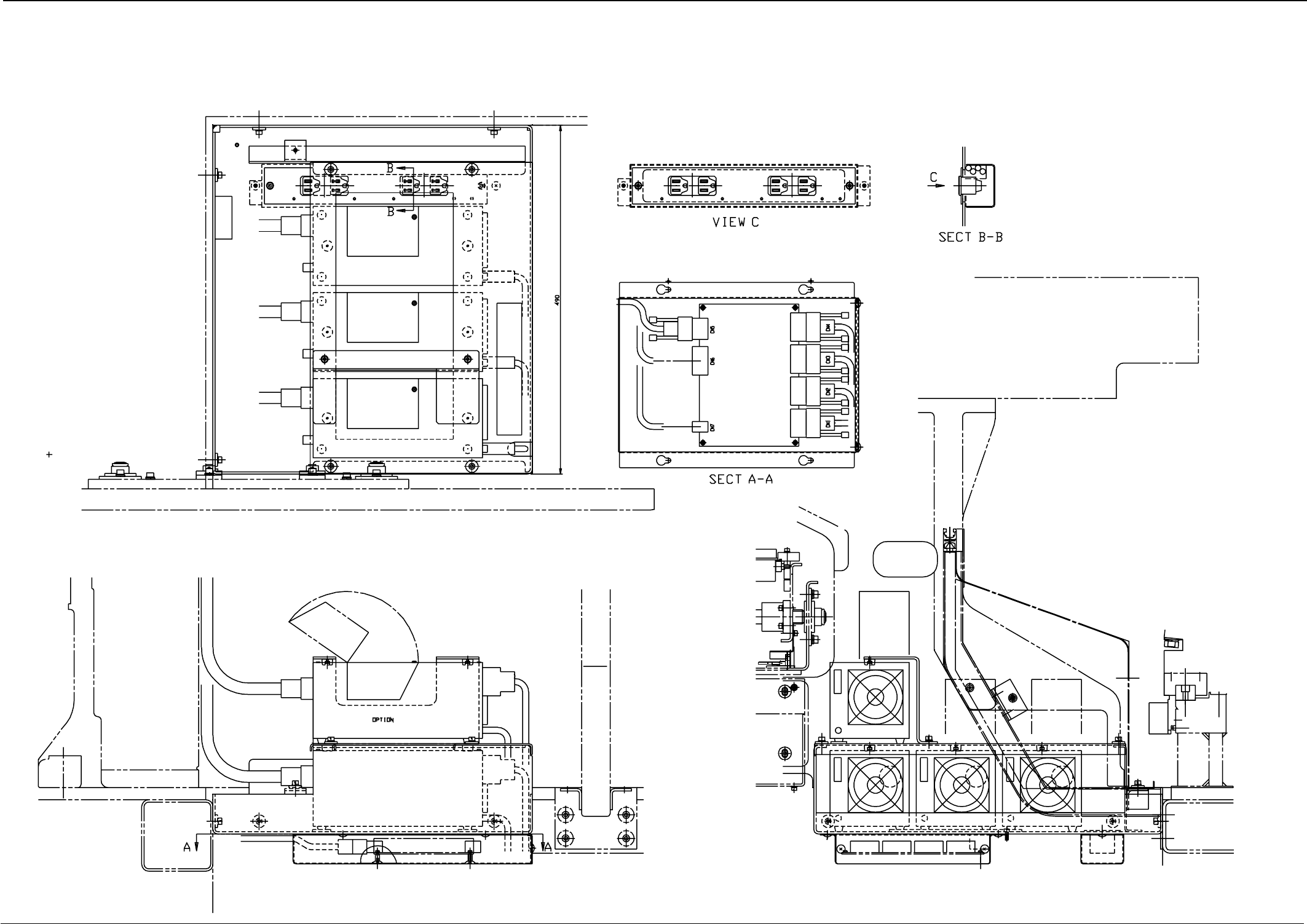

12.1 Parts Location

Recognition Lighting Section (TCM-X110J)

0307-001-(M810AEB--A0001) 70 Tg0930-PM-SO

The-markedareaisspeciallyspecified.

Recognition

Board

Recognition

Board

LampError

Shutter

LampError

Shutter

LampError

Shutter

LampError

Shutter

Component

Recognition

BackLighting

Component

Recognition

FrontLighting1(Ring)

Component

Recognition

FrontLighting2

(Coaxial)

Component

Recognition

FrontLighting3(Ring)

PowerOutlet

forLamp1

PowerOutlet

forLamp2

PowerOutlet

forLamp3

PowerOutlet

forLamp4

0307-001-(M801WR--A1001) 71 Tg0930-PM-SO

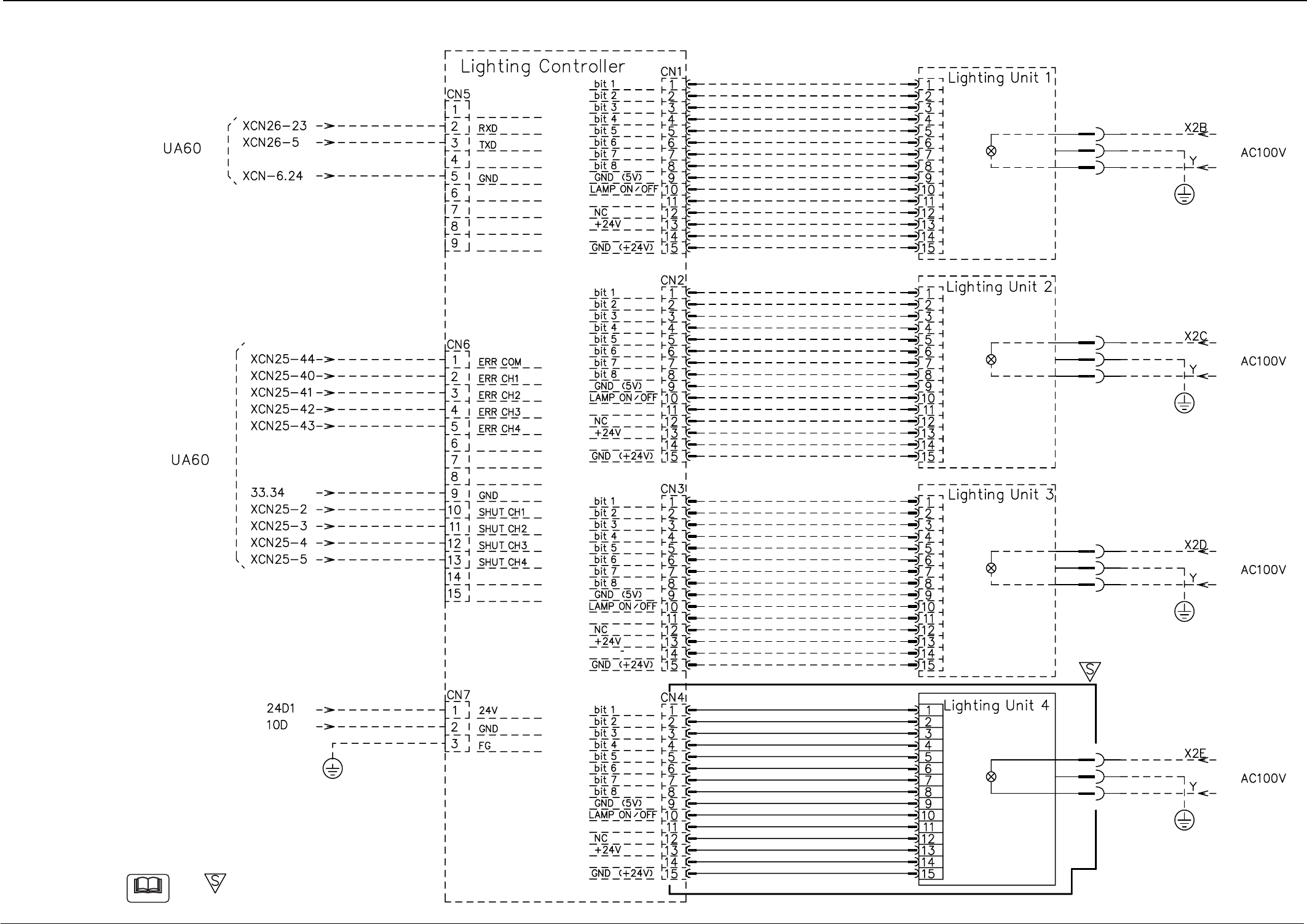

12.2 Electrical Circuit Diagram

Lighting Controller Circuit Diagram (TCM-X210)

12.2 Electrical Circuit Diagram
