2. S pecifications 0307-001 6 Tg0930-PM-SO

1. Scope

This specially specified function recognizes all electrodes of BGA and

CSP (BGA Type) components collectively, position the components

through image processing, and detect if the components have elec-

trodes or not, making it possible to place the components accurately.

2. Specifications

Table 1

1. Scope

0307-001 5 Tg0930-PM-SO

2. Specifications

0307-001 6 Tg0930-PM-SO

3. Rough View

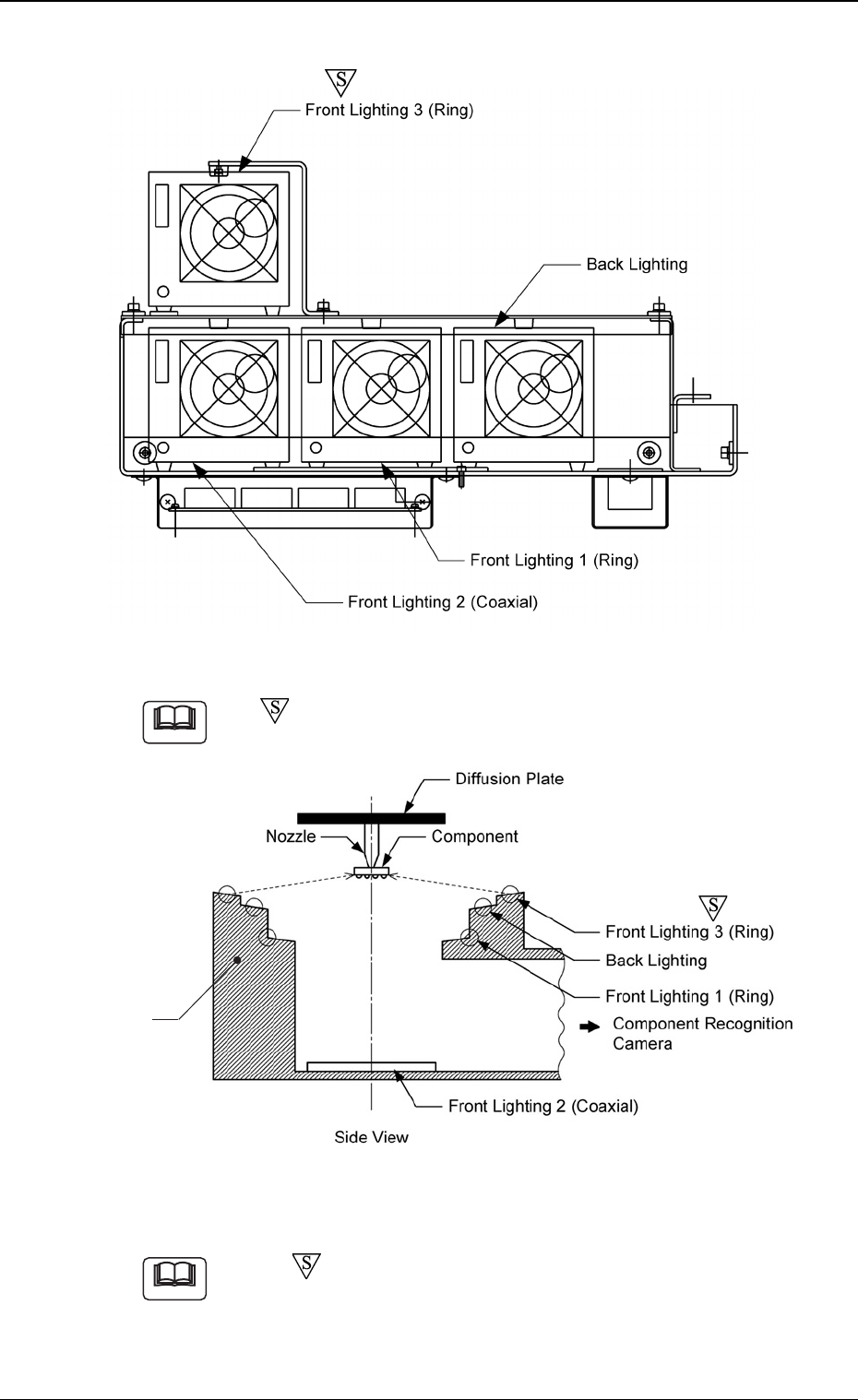

Fig. 1 Light Source Device (TCM-X210)

The

-marked area is specially specified.

Fig. 2 Lighting Unit

(a) The

-marked area shows the lighting (Front Lighting 3

Ring) for BGA/CSP components.

(b) It is necessary to replace the light guide with the one exclu-

sively for the BGA/CSP lighting.

3. Rough View

0307-001 7 Tg0930-PM-SO

Note

Light Guide
