8. "UNIT ADJ." Window (Submenu) • Window Layout When the [UNIT ADJ.] button on the submenu bar is pressed, the fol- lowing window opens. (Operation Sequence: [MAINT .] Button Æ [UNIT ADJ.] Button on Submenu Bar…

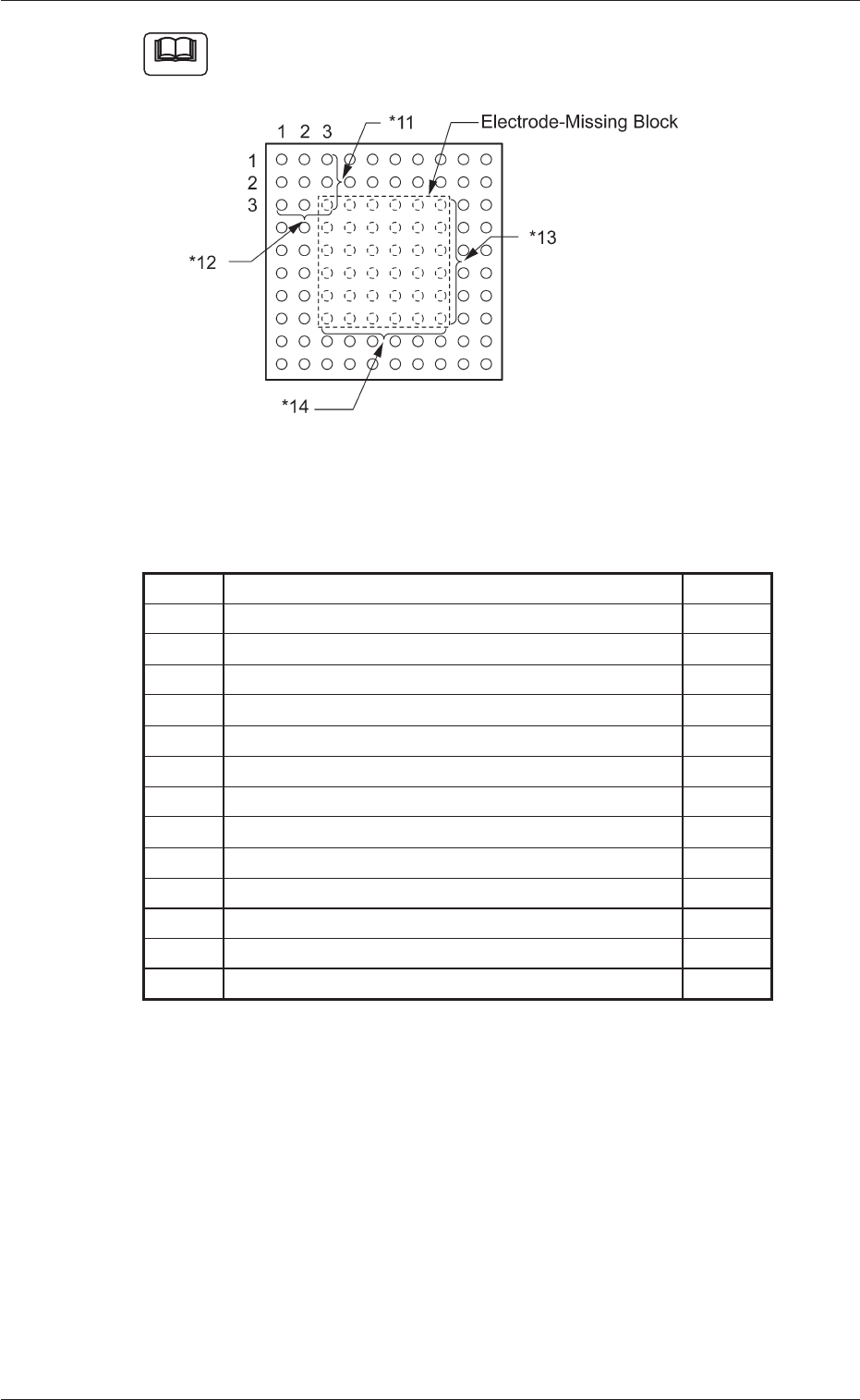

The figure shows the top view (electrode-missing side) of the

component.

Fig. 96

Individual Data Sheet (BGA/CSP)

Minimum Unit: 0.001 mm

*1 Mold size X [mm]

*2 Mold size Y [mm]

*3 Mold size t [mm] (thickness) [T [mm] (thickness)]

*4 Elctd Type #1 Dim 1 [mm]

*5 Gp Posn X [mm] of Gp No. 1

*6 Gp Posn Y [mm] of Gp No. 1

*7 Row Pitch [mm] of Gp No. 1

*8 Col Pitch [mm] of Gp No. 1

*9 # Of Rows [pcs.] of Gp No. 1

*10 # Of Cols [pcs.] of Gp No. 1

*11 Missing Stg Row of Elctd Grp No. 1

*12 Missing Stg Col of Elctd Grp No. 1

*13 # Of Missing Rows [pcs.] of Elctd Grp No. 1

*14 # Of Missing Cols [pcs.] of Elctd Grp No. 1

0307-001 42 Tg0930-PM-SO

7. Measurement of Component Dimensions

Note

8. "UNIT ADJ." Window (Submenu)

• Window Layout

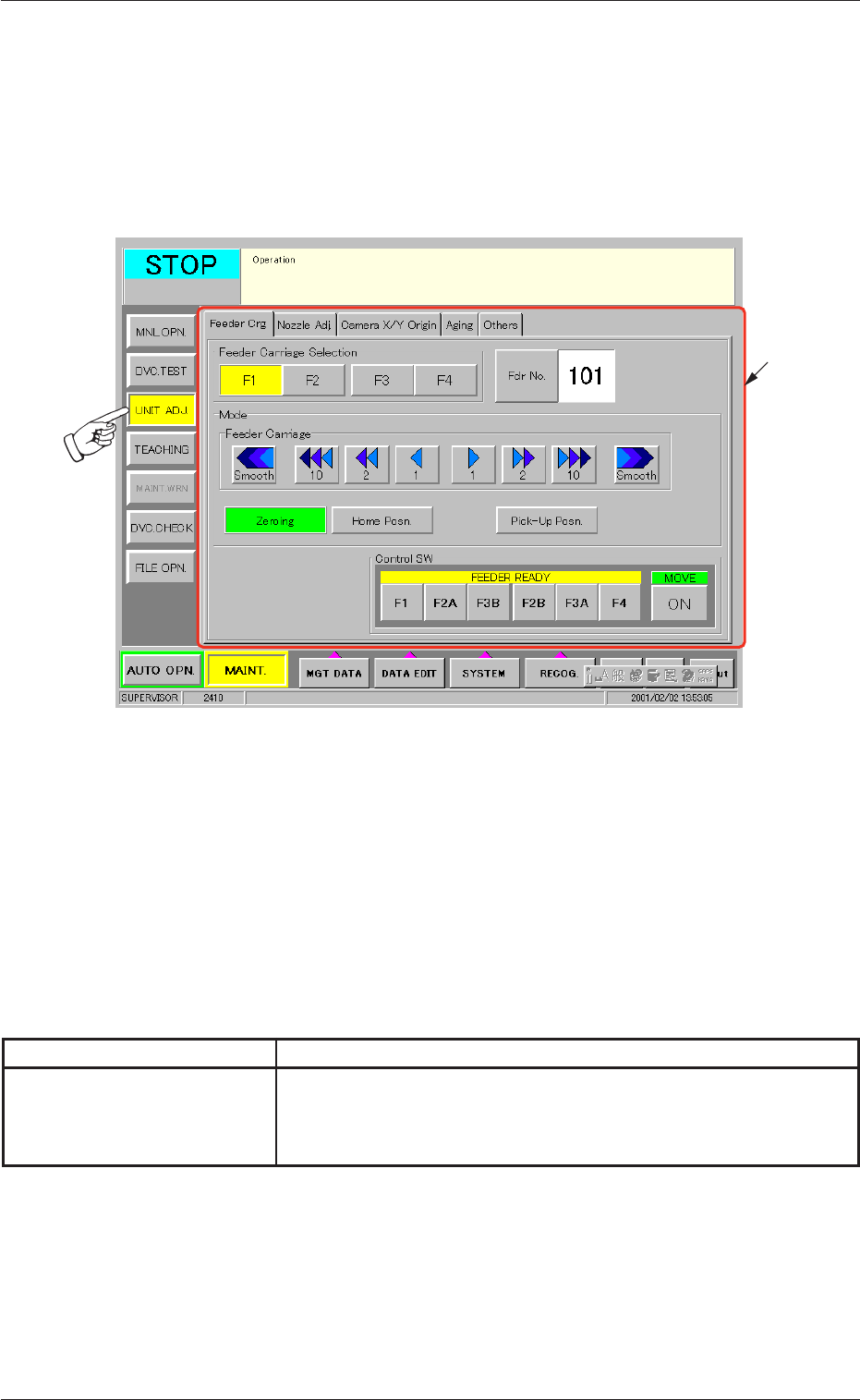

When the [UNIT ADJ.] button on the submenu bar is pressed, the fol-

lowing window opens. (Operation Sequence: [MAINT.] Button Æ [UNIT

ADJ.] Button on Submenu Bar Æ "UNIT ADJ." Window)

Fig. 97 "UNIT ADJ." Window (Submenu)

• Window Composition

*1 Tabs and Tab Sheets

The "UNIT ADJ." window (submenu) is provided with 5 tab

sheets. When each tab is pressed, the corresponding tab sheet

appears inside the window.

Table 14

Tab Description

Camera X/Y Origin This tab sheet enables the operator to perform the origin adjust-

ment of the image camera, the sensitivity adjustment of the CCD

camera, the intensity adjustment of front lighting, etc.

8. "UNIT ADJ." Window (Submenu)

0307-001 43 Tg0930-PM-SO

8.1 "Camera X/Y Origin" Tab

This tab sheet enables the operator to perform the origin adjustment of

the image camera, the sensitivity adjustment of the CCD camera, the

intensity adjustment of front lighting, etc.

• Sheet Layout

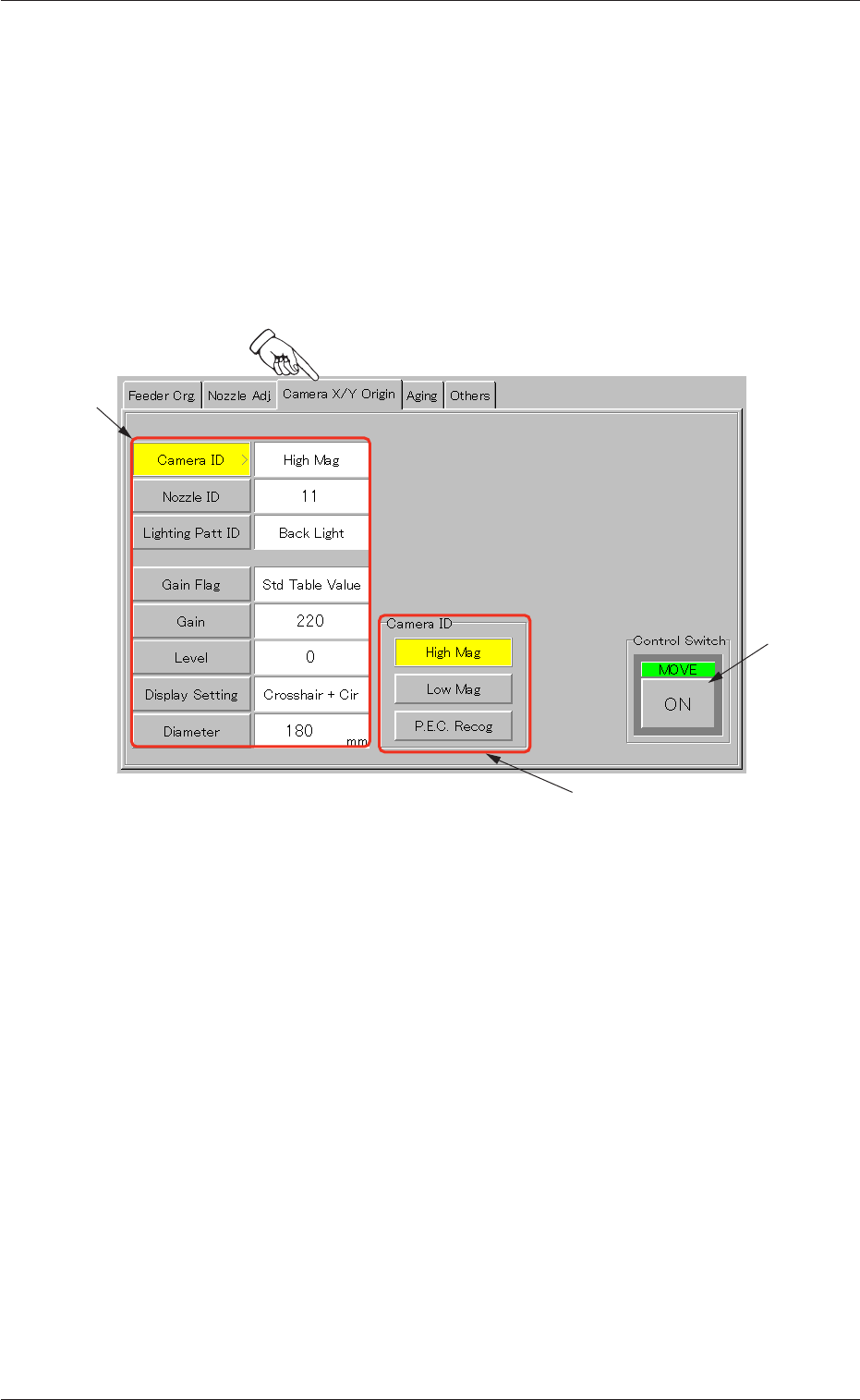

When the "Camera X/Y Origin" tab is pressed in the "UNIT ADJ." win-

dow (submenu), the following tab sheet appears.

Fig. 98 "Camera X/Y Origin" Tab Sheet

• Sheet Composition

*1 Operation Selection Buttons

When a button is pressed, it turns yellow, indicating that it is

selected.

[Camera ID] Button :

[Nozzle ID] Button :

[Lighting Patt ID] Button :

[Gain Flag] Button :

[Gain] Button :

[Level] Button :

[Display Setting] Button :

[Diameter] Button :

8.1 "Camera X/Y Origin" Tab

0307-001 44 Tg0930-PM-SO
