1. Scope This specially specified function recognizes all electrodes of BGA and CSP (BGA T ype) components collectively , position the components through image processing, and detect if the components have elec- trodes o…
0307-001 4 Tg0930-PN-SO
Contents
Page
11. Component Library Data Sheets . . . . . . . . . . . . . . . . . . . . . . . . 64
11.1 Sheets for BGA/CSP Components . . . . . . . . . . . . . . . . . . . . . 64
12. Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
12.1 Parts Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Recognition Lighting Section (TCM-X210) . . . . . . . . . . . . . . 69
Recognition Lighting Section (TCM-X110J) . . . . . . . . . . . . . 70
12.2 Electrical Circuit Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lighting Controller Circuit Diagram (TCM-X210) . . . . . . . . . 71
Lighting Controller Circuit Diagram (TCM-X110J) . . . . . . . . 72
12.3 Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Cord Connection Diagram
(Front Lighting 3) (TCM-X210) . . . . . . . . . . . . . . . . . 73
Cord Connection Diagram
(Front Lighting 3) (TCM-X110J) . . . . . . . . . . . . . . . . 74
1. Scope
This specially specified function recognizes all electrodes of BGA and
CSP (BGA Type) components collectively, position the components
through image processing, and detect if the components have elec-
trodes or not, making it possible to place the components accurately.

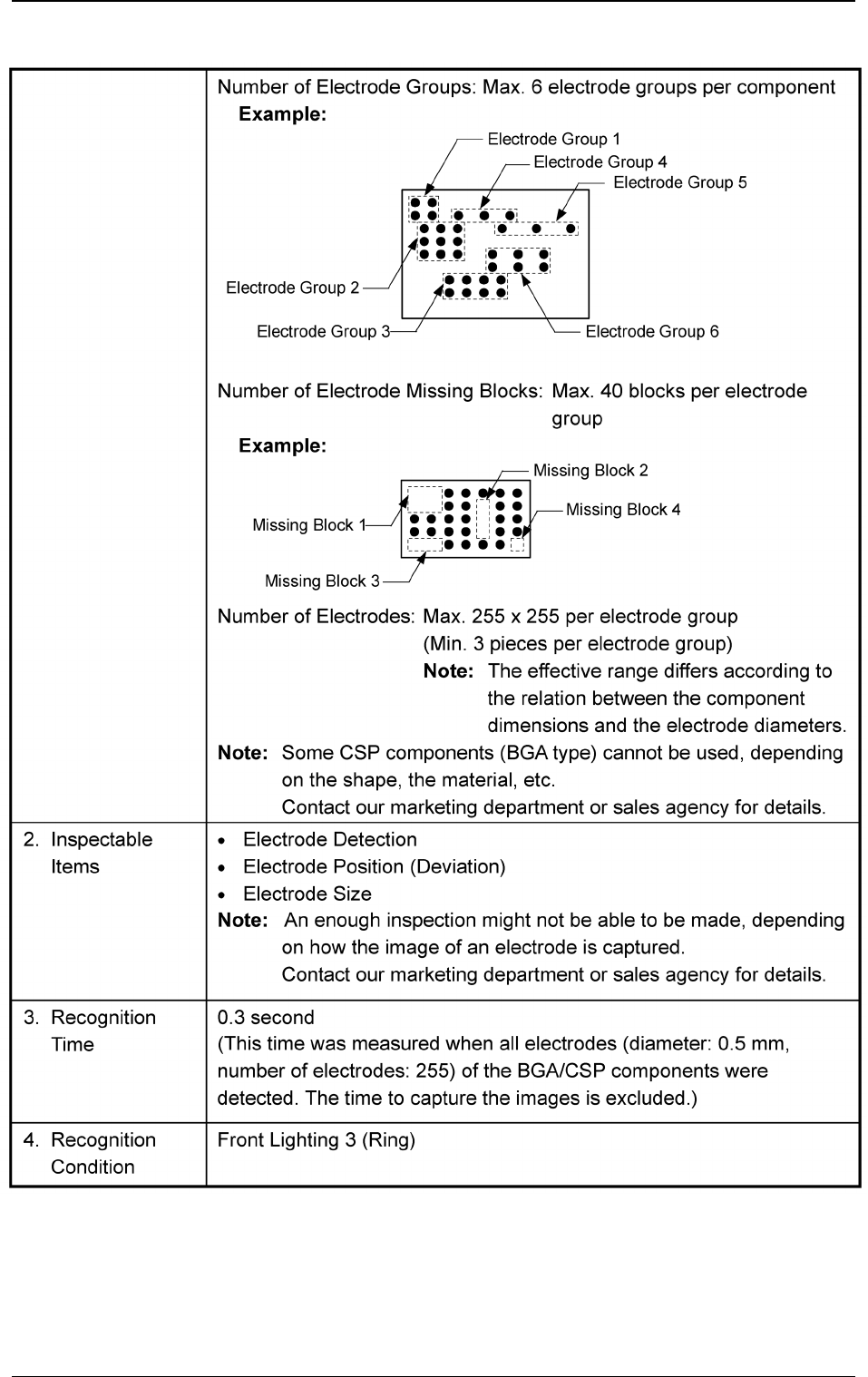

2. Specifications
Table 1
1. Scope
0307-001 5 Tg0930-PM-SO
2. Specifications
0307-001 6 Tg0930-PM-SO
