*2 Adjustment and Setting Buttons The displayed content s change as follows, depending on which button was selected in "*1". • When the [Lighting Patt ID] button is pressed, the following ad- justment and setti…

8.1 "Camera X/Y Origin" Tab

This tab sheet enables the operator to perform the origin adjustment of

the image camera, the sensitivity adjustment of the CCD camera, the

intensity adjustment of front lighting, etc.

• Sheet Layout

When the "Camera X/Y Origin" tab is pressed in the "UNIT ADJ." win-

dow (submenu), the following tab sheet appears.

Fig. 98 "Camera X/Y Origin" Tab Sheet

• Sheet Composition

*1 Operation Selection Buttons

When a button is pressed, it turns yellow, indicating that it is

selected.

[Camera ID] Button :

[Nozzle ID] Button :

[Lighting Patt ID] Button :

[Gain Flag] Button :

[Gain] Button :

[Level] Button :

[Display Setting] Button :

[Diameter] Button :

8.1 "Camera X/Y Origin" Tab

0307-001 44 Tg0930-PM-SO

*2 Adjustment and Setting Buttons

The displayed contents change as follows, depending on which

button was selected in "*1".

• When the [Lighting Patt ID] button is pressed, the following ad-

justment and setting buttons appear.

Fig. 99

When one of the buttons ([OFF], [Back Light], [Front Light 1], [Front

Light 2], and [Front Light 3 (Option)] buttons) is pressed, the speci-

fied item appears in the "Lighting Patt ID" text box.

*3 Control Switch

When the [ENABLE] button on the front operation panel is

pressed in 2 seconds after each parameter is specified in "*2"

and [ON] button is pressed, the machine performs the zeroing

adjustment.

8.1 "Camera X/Y Origin" Tab

0307-001 45 Tg0930-PM-SO

9. "TEACHING" Window (Submenu)

••

• Window Layout

When the [TEACHING] button on the submenu bar is pressed, the fol-

lowing window (submenu) opens. (Operation Sequence: [MAINT.] But-

ton Æ [TEACHING] Button on Submenu Bar Æ "TEACHING" Window)

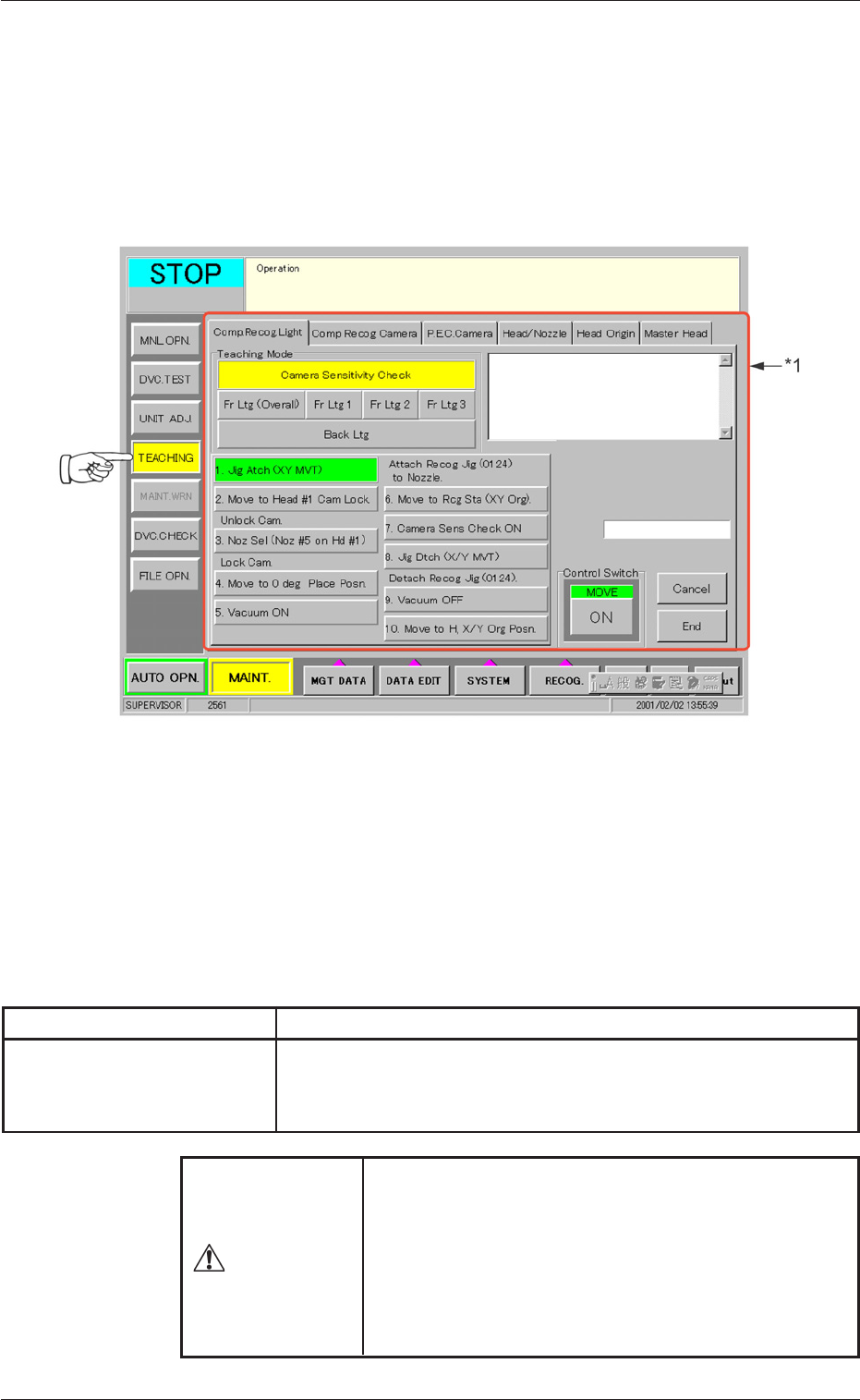

Fig. 100 "TEACHING" Window (Submenu)

••

• Window Composition

*1 Tab

The "TEACHING" window (submenu) is provided with 6 tab

sheets. When each tab is pressed, the corresponding tab sheet

appears inside the window.

Table 15

Tab Description

Comp. Recog. Light The corresponding tab sheet enables the operator to perform

the teaching operation on the sensitivity of the camera and the

lighting intensity.

9. "TEACHING" Window (Submenu)

Various teaching operations must be performed with

the [OPERATION] switch set to the "SETUP" side.

Only the person in charge of maintenance work should

perform teaching operations.

No teaching operation can be implemented with the

[OPERATION] switch set to the "RUN" side.

WARNING

0307-001 46 Tg0930-PM-SO
