COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.39
3. To disconnect the system switch and jog buttons carry out the following:
a. Locate the two release slots in the contact assembly part of the switch.
b. Insert the switch release tool (Part No 188647) into the slots and push
until the release tool clicks into place.
c. Leaving the switch release tool in position, pull the contact assembly from
the switch body.
d. Remove the switch release tool from the contact assembly.
NOTE
To refit the contact assembly to the switch body, using the locating
keyway, push the two units together until they click into place.
4. Using a 4mm Allen key, undo the appropriate four captive screws.
5. Remove the panel clear of the printer, taking care not to damage the earth
cable.

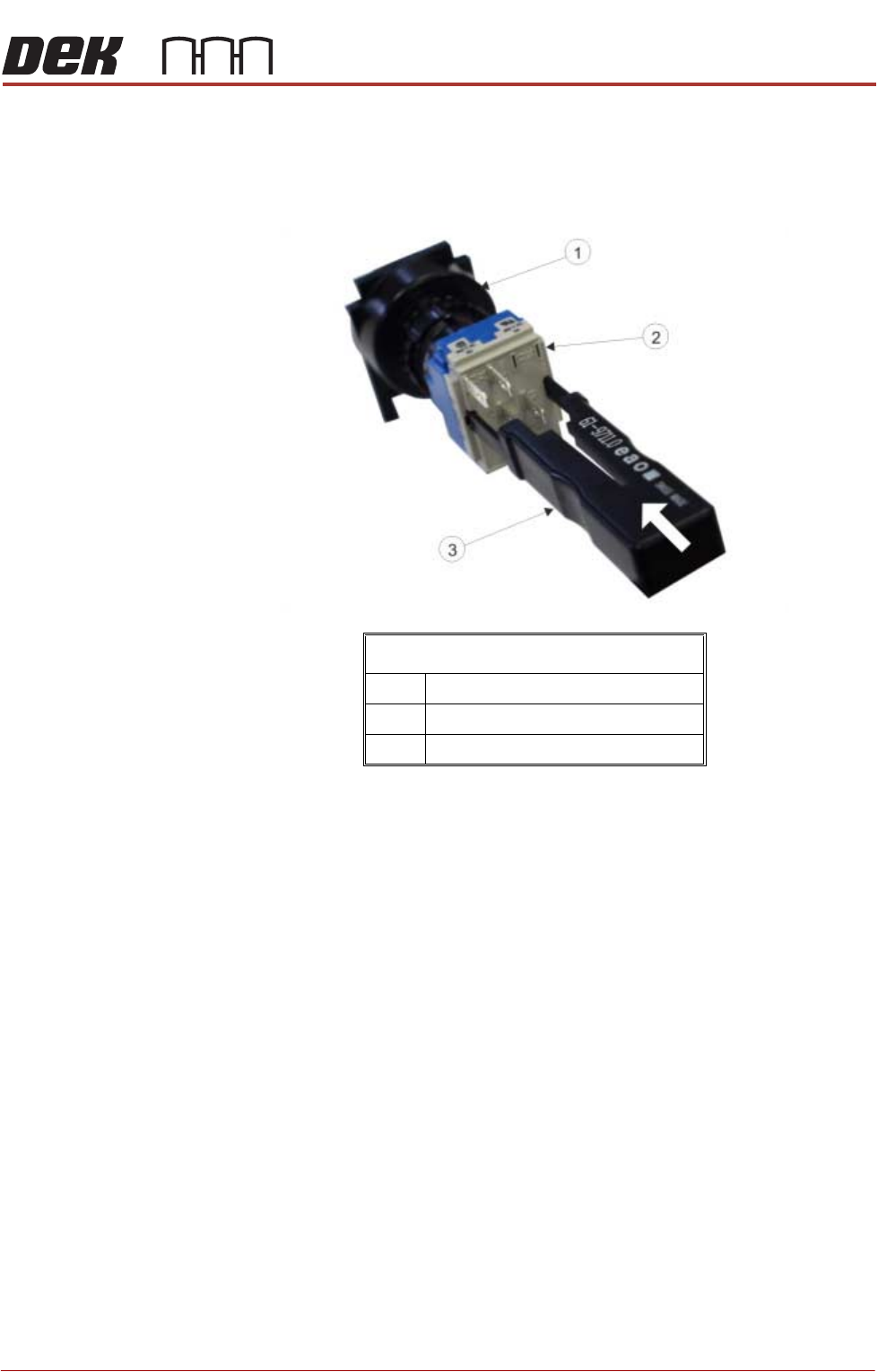

View on Rear of Switch
1 Switch Body
2 Contact Assembly
3 Switch Release Tool
COVERS
PRINTER COVERS
2.40 Installation Manual Chapter Issue 12, Feb 18
6. Repeat Steps 3 to 4 for the other MMI Arm panel, if required. Full removal of
panel requires initial removal of the MMI Arm.
Lower Side Panels To remove the lower side panels, carry out the following:
1. Remove the corresponding safety cover (as detailed previously).
2. Open the front printhead cover.
3. Remove the front lower corner panels (as detailed previously).
4. Remove the front upper corner panels (as detailed previously).
5. Remove the rear corner panels (as detailed previously).
6. Remove the MMI Arm Panels (as detailed previously).
7. Using an 4mm Allen key, undo the two captive screws.
8. Tilt the top of the panel away from the printer and lift the panel clear, taking
care not to damage the earth cable.
Front Right Quarter View
Captive Screws
Front Right Quarter View
Captive Screws
COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.41
9. Repeat Steps 1, 6, 7 and 8 for the other lower side panel, if required.
Upper Side Panels To remove the upper side panels, carry out the following:
1. Remove and disconnect the beacon.
2. Open the front printhead cover.
3. Remove the corresponding safety cover (as detailed previously).
4. Remove the upper front corner panel (as detailed previously).
5. Remove the lower front corner panel (as detailed previously).
6. Remove the MMI panel (as detailed previously).
7. Remove the corresponding rear corner panel (as detailed previously).
8. Remove the corresponding front corner panel (as detailed previously).
9. Using an 4mm Allen key, undo the four captive screws.
10.Lift the panel away from the printer, taking care not to damage the earth
cable.
11.Repeat Steps 3 to 9 for the other upper side panel, if required.
Front Right Quarter View
Captive Screws
(in 4 positions)
