1.2 Touch Screens

1.2.1 Operation Windows

Various operation windows appear on the touch screen for parameter

settings (data input).

Basically, operations become available by touching the buttons in a win-

dow.

To enter alphanumeric characters, open the ten-key pad or the key-

board by pressing the pertinent key in an operation window and press

the desired keys on the ten-key pad or the keyboard.

(a) The front operation panel is equipped with a keyboard and

a pointing device.

The keyboard and the pointing device can be used to work

with operation windows.

(b) The pattern program and component library data can be

edited in the edit windows, using the keyboard and the

pointing device.

1.2 Touch Screens

0305-001 2-2 AIL01EOPP

Note

1.2.2 Notes on Handling Touch Screens

• Since the touch screen uses the molecules in liquid crystals, do not

apply a strong pressure or a shock on the touch screen. It should be

handled like glass.

Do not apply strong pressure to the touch screen.

Otherwise, it may easily break.

Do not press the touch screen with a force of 0.78 Ncm

(approx. 80

gf/cm

) or more.

• When temperature is low at power-up, the brightness of the back

light drops. The deterioration is not abnormal. The brightness resumes

normal after a few minutes.

When the back light is turned on or off repeatedly at low temperature,

the life will be shortened.

• Before cleaning the touch screen, be sure to turn off the power. Oth-

erwise, the touch screen will react to your touch during cleaning, re-

sulting in data corruption.

When the surface of the touch screen is stained, wipe off dust and

dirt with a rag soaked in neutral detergent.

Do not use acetone, thinner, benzene, alcohol, etc., to clean the

touch screen.

If the surface is wiped with an organic solvent, the surface of the

touch screen may melt or get cloudy.

1.2 Touch Screens

0412-002 2-3 AIL01EOPP

Notice

2. Starting or Exiting from the Application

2.1 Getting Started

(1) When the [POWER ON] button on the operation panel is pressed,

it illuminates in yellowish green and the self-diagnostics function

starts.

(a) Press and hold the [POWER ON] button for more than 1

second.

(b) It takes 2 to 3 minutes until the self-diagnostics operation

is completed. Please wait for a while.

When the self-diagnostics operation is completed, the "Login Type Se-

lection" window appears on the touch screen.

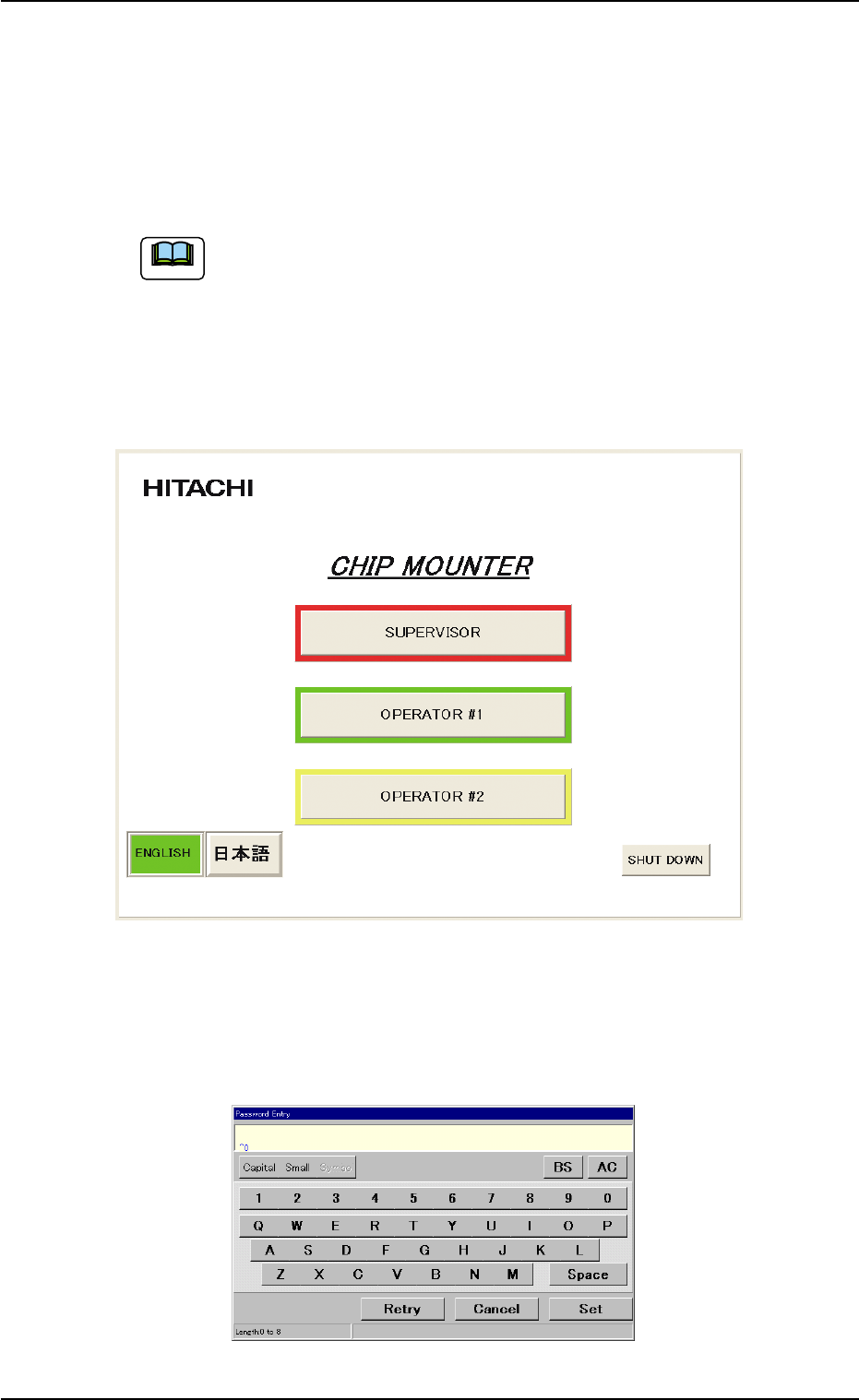

Fig. 1B2 "Login Type Selection" Window

(2) Press the [SUPERVISOR], the [OPERATOR #1], or the [OPERA-

TOR #2] button according to the given authority.

The "Password Entry" dialog box opens.

Fig. 1B3 "Password Entry" Dialog Box

2. Starting or Exiting from the Application

0511-002 2-4 AIL01EOPP
