When "CYCLE" is set as "Stop Mode" (*1), select the [STEP] button (entitled "STOP") in the "Run Mode" tab sheet ("OPN. MODE" submenu window). 1.4.3 Stop Operation by Sele…

1.4.2 [STOP] and [ON] (entitled "STOP") Buttons

Press the [STOP] button to temporarily stop the automatic operation

whenever it is found that a wrong production model is applied or the

placement condition should be checked after the machine has started

the automatic operation.

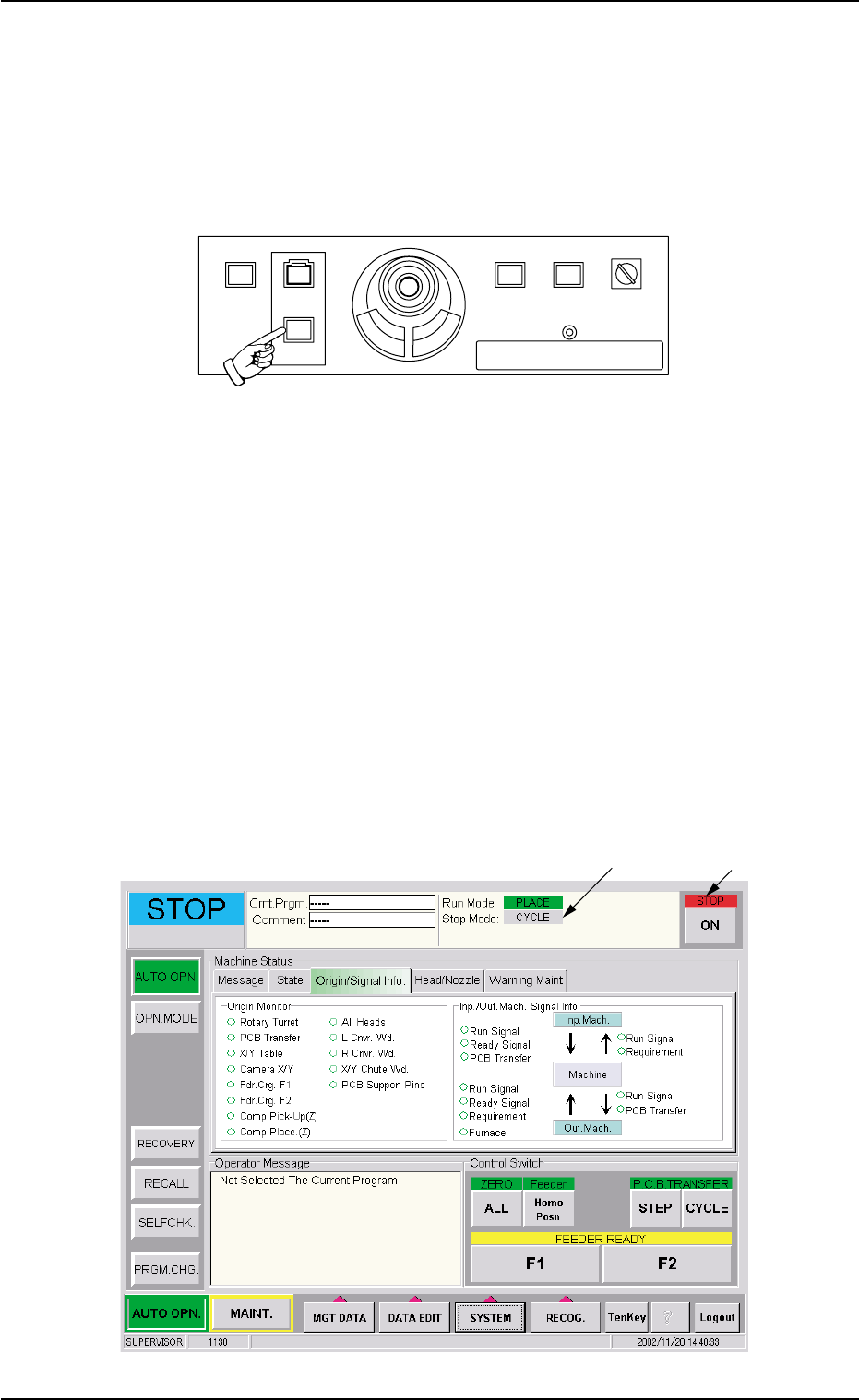

Fig. 1C23

(1) When the [STOP] button is pressed, the automatic operation stops

temporarily.

(2) When the [START] button is pressed after the placement condition

is checked, the automatic operation re-starts.

(3) When a wrong pattern program is specified as the current one (pro-

duction model), press the [STOP] button to temporarily stop the

automatic operation and follow the instructions described in "1.5

Interruption of Automatic Operation" to interrupt the automatic op-

eration.

••

• Temporary Stop (Pause) with [ON] Button (entitled "STOP")

When "STEP" is set as "Stop Mode" (*1) and the [ON] button (*2,

entitled "STOP") is pressed, the automatic operation stops tempo-

rarily.

Fig. 1C24

POWER ON

STOP

START

ENABLE

RUN SETUP

OPERATION

LOCK

PNL CHANGE

1.4 Temporary Stop and Restart of Automatic Operation

0309-002 3-16 AIL01EOPP

When "CYCLE" is set as "Stop Mode" (*1), select the [STEP]

button (entitled "STOP") in the "Run Mode" tab sheet ("OPN.

MODE" submenu window).

1.4.3 Stop Operation by Selection of "Auto Stop Mode"

Stop the input machine.

After all P.C.B.’s on the system line are processed and discharged, the

input machine automatically stops running.

(a) This function works only when "Enable" is set in the "Auto

stop mode" text box of the "P.C.B. Transfer Mode Setup"

tab sheet. (Operation Procedure: [SYSTEM] Button on

Main Menu Bar Æ [SYS DATA] Button Æ "Auto Opera-

tion" Tab Æ "P.C.B. Transfer Mode Setup" Tab Sheet)

(b) When a machine of another brand is connected to the

system line, this function may not work.

1.4 Temporary Stop and Restart of Automatic Operation

0309-002 3-17 AIL01EOPP

Note

1.5 Interruption of Automatic Operation

1.5.1 Interruption of Automatic Operation with [CANCEL] Button

To discontinue the production due to wrong selection of the current pat-

tern program or product P.C.B.’s, interrupt the automatic operation.

(1) Press the [STOP] button on the front operation panel.

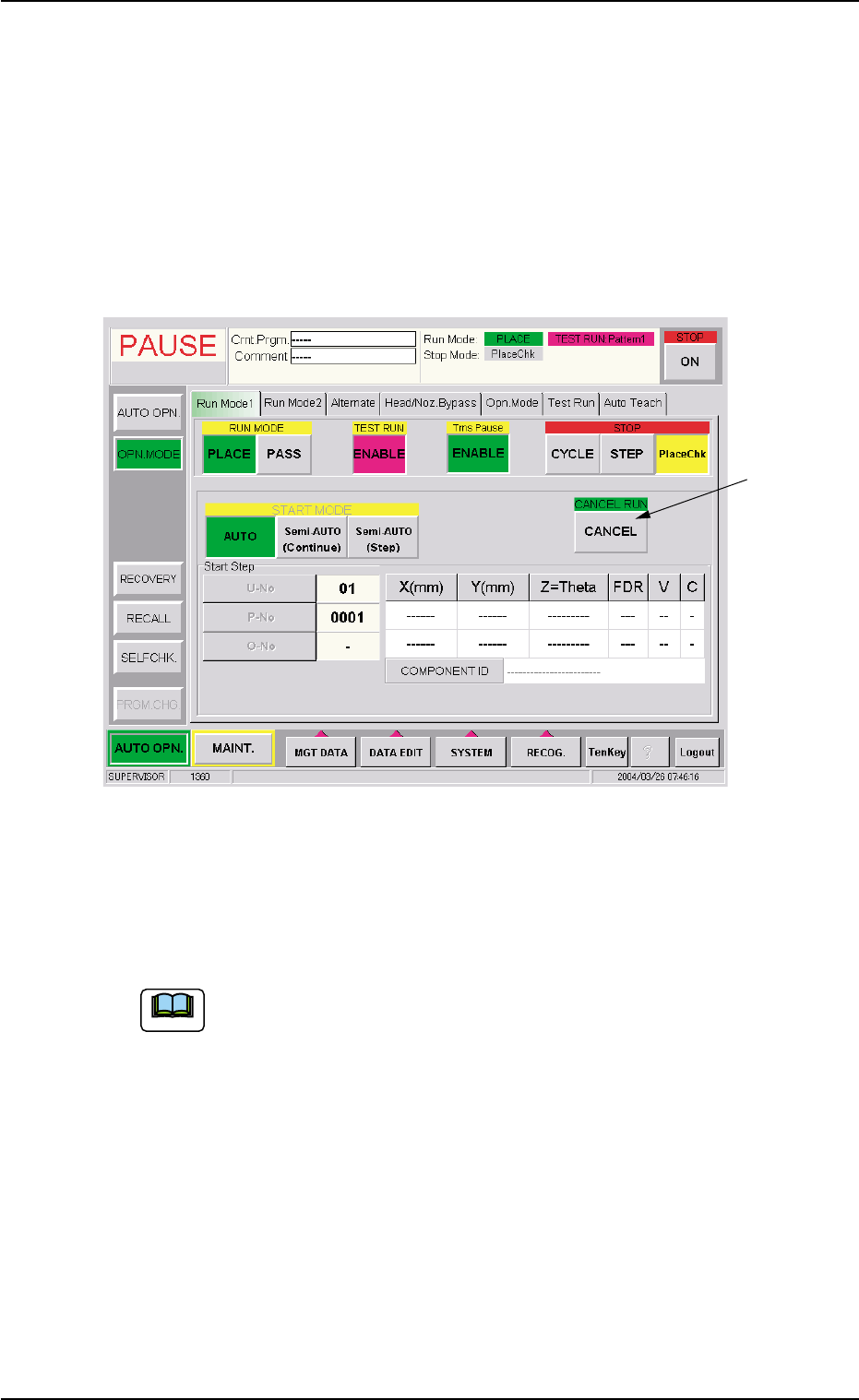

Fig. 1C25 "Run Mode 1" Tab Sheet

(2) When the [CANCEL] button (*1, entitled "CANCEL RUN") is pressed

after the "Run Mode 1" tab ("OPN. MODE" submenu window), the

automatic operation is interrupted.

To continue the automatic operation after the interruption, re-

fer to "Step (8)" and the subsequent items in "3.1 [EMERGENCY

STOP] Switch Pressed" in "Section 4" for details.
