3. Surface Mounting Mechanism The following briefly describes how components are mounted on P .C.B.’s. (a) The explanation is based on the P .C.B. flow direction "From Left to Right (L Æ R)". (b) Refer to "…
2.4.7 P.E.C. Recognition Section
Fig. 1A28
The P.E.C. recognition camera is used to detect the fiducial marks on a
P.C.B. and the amount of the positional deviation from the fiducial mark
coordinate data is calculated to automatically correct the position of a
placed component.
2.4 Main Units
0305-001 1-32 AIL01EOPP
P.E.C. Recognition Camera
Rotary Turret
3. Surface Mounting Mechanism
The following briefly describes how components are mounted on P.C.B.’s.
(a) The explanation is based on the P.C.B. flow direction "From
Left to Right (L Æ R)".
(b) Refer to "1. Scope of Actions" in "Section 2" of "Volume 2:
Operation (Supervisor)" for details.
3.1 P.C.B. Transfer and Positioning
P.C.B. Transfer (from the input machine)
The P.C.B. transferred from the input machine is carried to the P.C.B.
transfer section by the L conveyor and stops there.
Fig. 1A29
P.C.B. Positioning
The P.C.B. transferred from the P.C.B. transfer section to the X/Y
table is secured in place by the chutes, the P.C.B. pilot pins, etc., on
the table.
Fig. 1A30 X/Y Table Section
3. Surface Mounting Mechanism
0305-001 1-33 AIL01EOPP
L Conveyors
P.C.B.
P.C.B. Transfer Section
Input Machine
Chutes
P.C.B. Pilot Pins
Note
3.2 Component Picks and Placement
Component Pick-Up
Components are picked up from the tape feeder by the vacuum
nozzles on the placement heads.

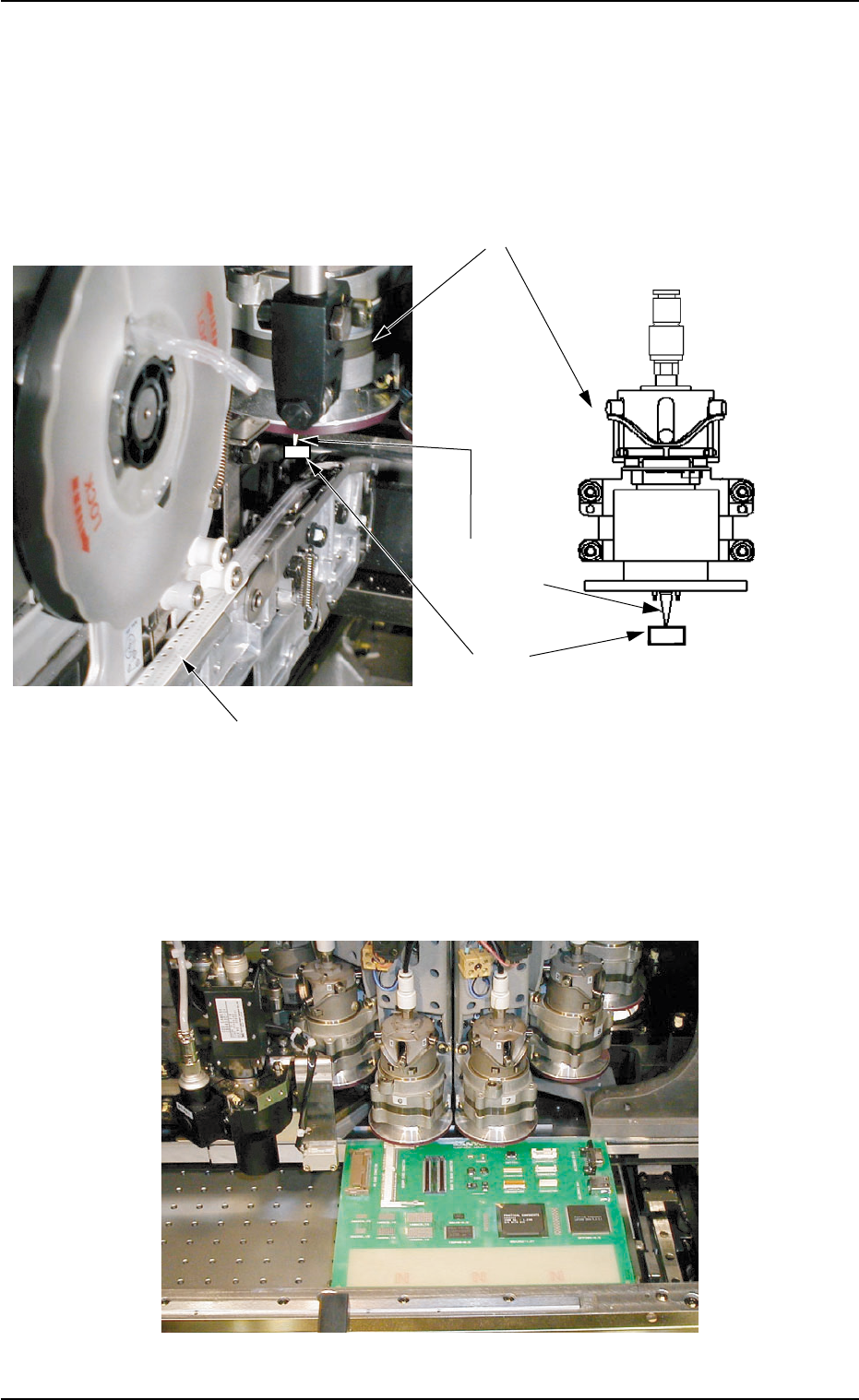

Fig. 1A31 Component Pick-Up Section (Station #12)
Component Placement
The component picked up by the vacuum nozzle is placed on the
P.C.B. in the component placement section.
Fig. 1A32 Component Placement Section (Station #6)
3.2 Component Picks and Placement
Tape Feeder
Placement Head
Component
Vacuum Nozzle
0305-001 1-34 AIL01EOPP
