2.3.6 Rear Service Panel

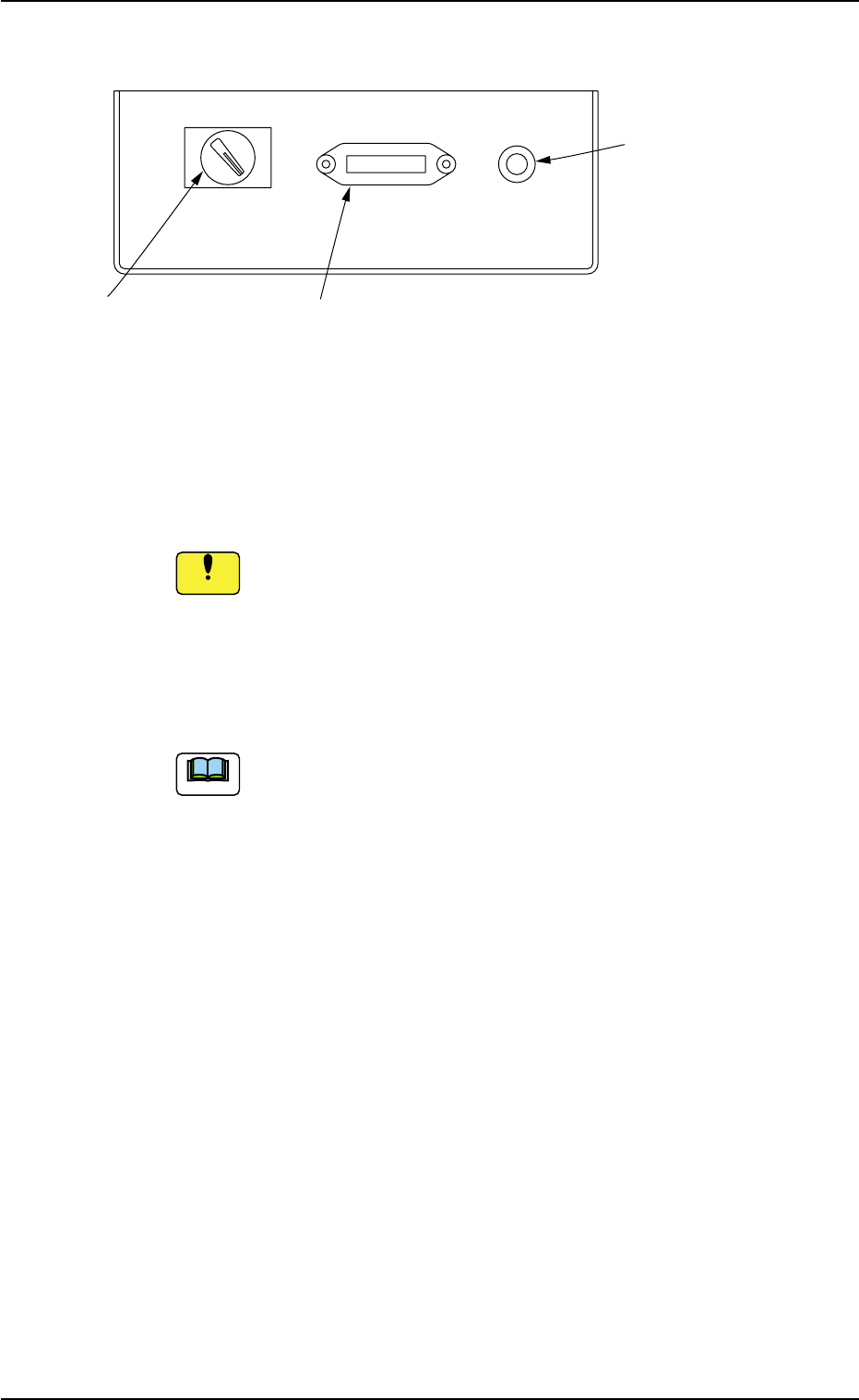

Fig. 1A19
*1 Selector Switch
This switch is used to select either the operation panel of the main
machine or the secondary operation panel for maintenance.
Keep the selector switch "OFF" during automatic operation.
When the switch is turned "ON", the power will be cut off.
*2 Connector for Secondary Operation Panel
This connector is used to connect the secondary operation panel
for maintenance.
This connector is provided only for a service personnel.
*3 Ground Terminal for Wrist Band
The wrist band must be connected to this terminal for grounding.
2.3 Operational Measures
ON OFF OPE-TAB
*1 Selector Switch
*2 Connector for Secondary
Operation Panel
*3 Ground Terminal
*3 for Wrist Band
0412-002 1-24 AIL01EOPP
Note
Notice
2.3.7 Ethernet LAN
Data can be exchanged between the network terminal (option) and the
machine in the Ethernet LAN system.
• Do not exchange data through Ethernet cabling (Local
Area Network) between the system and a computer that
is not provided with any viral strategies.
Otherwise, viruses might enter the network, causing the ma-
chine to malfunction.
• Isolate the system without using Ethernet cabling (Lo-
cal Area Network) except for the specified functional
operations.
Otherwise, the machine will break down.
Fig. 1A20
2.3 Operational Measures
Ethernet LAN
0412-002 1-25 AIL01EOPP
Notice
2.4 Main Units
2.4.1 Feeder Carriages
Fig. 1A21
The carriages carry feeders for component supply.
The tape or bulk feeders can be installed on the feeder carriages. The
carriages move right and left to supply components.
Never operate the machine with the feeder carriage
covers being open.
The feeder carriages are moved at high speed by
means of a strong motor.
It is very dangerous for a person or a thing to come in
contact with the moving section.
Components should be loaded on the tape or bulk feeders.
Refer to the instruction manual of the tape or the bulk feeders
for details.
Those who wear an implanted pacemaker are not al-
lowed to work inside the carriage covers.
Strong magnets are used in the feeder carriage sec-
tions.
Therefore, the pacemaker may be affected by mag-
netism.
2.4 Main Units
Feeder
Feeder Carriage
WARNING
0412-002 1-26 AIL01EOPP
Note
DANGER
