1.1.2 Confirmation of Front Safety Door and Feeder Carriage Sections Confirm that the front safety door , the feeder work area safety doors, and the feeder carriage covers are completely closed. Fig. 1C5 Front Safety Doo…

(a) When the air pressure is not set correctly, adjust it to meet
the specified range.
(b) The pressure switch is correctly set. Be sure not to ad-
just it.
Ref.: 0.40 MPa for P1 and 0.35 MPa for P2
(c) Use of Dry and Clean Air
Be sure to use dry and clean air. If moisture, oil, dust, etc.,
enter a pneumatic device (air cylinder, etc., used in this
machine), it will result in a breakdown of the machine.
Dry and Clean Air
Moisture: Dew Point -17°C or lower (Atmospheric Pres-
sure)
Oil : 0.1 mg/m
3
(ANR) or less
Dust : Solid Material 0.01 µm or less
(3) Confirmation of Z-Clamp Pressure
Confirm that the Z-clamp pressure is set to "0.2 MPa (2.0 kgf/cm
2
)".
Fig. 1C4 Air Regulator for Z Clamp
Do not adjust the pressure of the Z clamp.
• If the set air pressure is changed, the Z-clamp function may not
work normally.
When the pressure of the Z clamp is not set correctly and
the Z-clamp function does not work normally, contact our ser-
vice station or sales agency.
1.1 Inspections before Automatic Operation
0511-003 3-3 AIL01EOPP
Note
MPa
SMC
1
0.8
0.6
0.4
0.2
0
Pressure of Z Clamp
0.2 MPa (2.0 kgf/cm
2
)
The pressure of the Z clamp can be
checked from the top after the front
safety door is opened.
Do not detach the front cover.
Note
Notice

1.1.2 Confirmation of Front Safety Door and Feeder Carriage
Sections
Confirm that the front safety door, the feeder work area safety doors,
and the feeder carriage covers are completely closed.

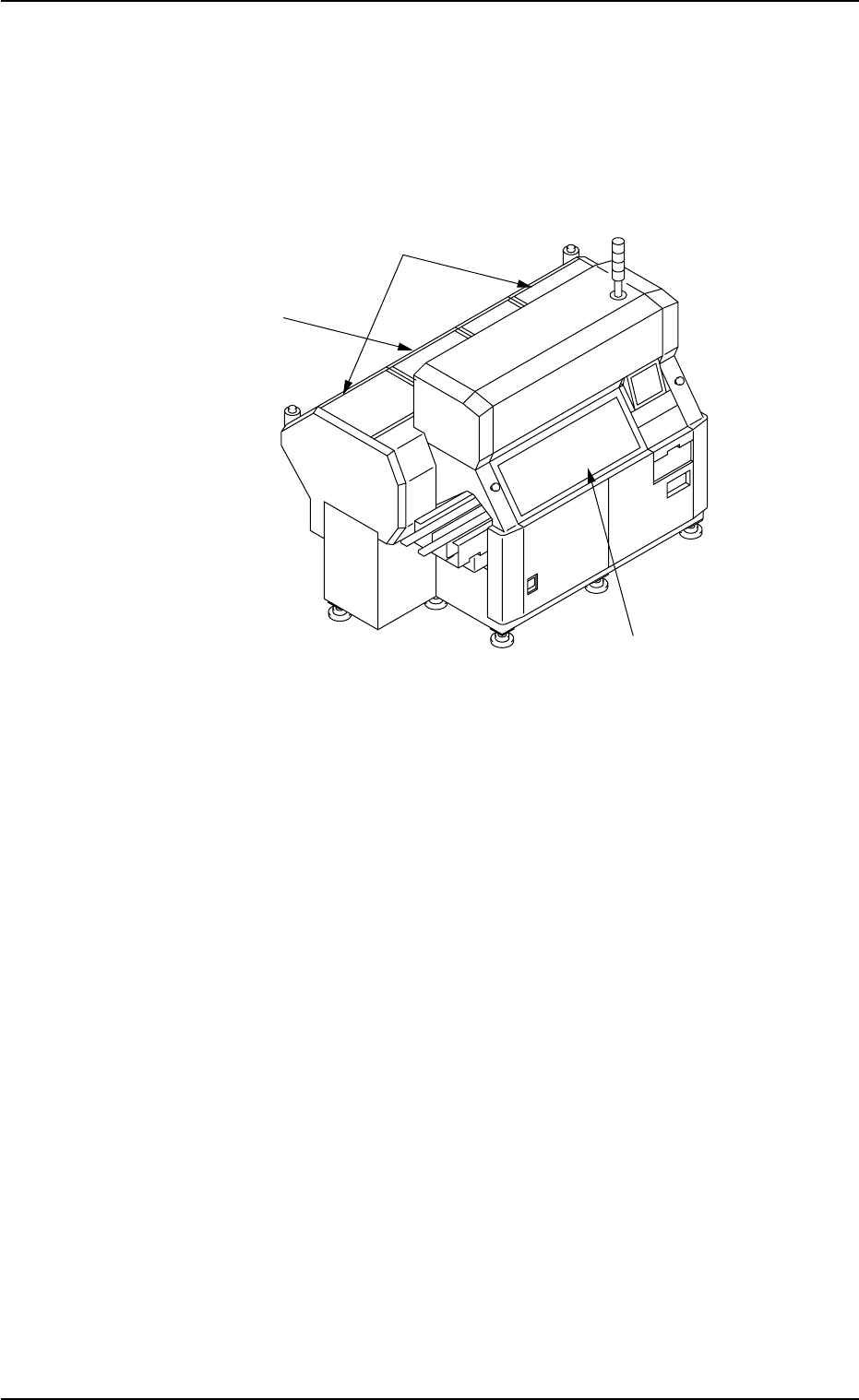

Fig. 1C5
Front Safety Door
Feeder Carriage Cover
Feeder Work Area Safety Door
1.1 Inspections before Automatic Operation
0305-001 3-4 AIL01EOPP

1.2 Preparation before Automatic Operation
1.2.1 Power ON Operation
(1) Ensure the safety around the front safety door and the feeder car-
riage sections.
(2) Remove the padlock from the lock lever of the power breaker.

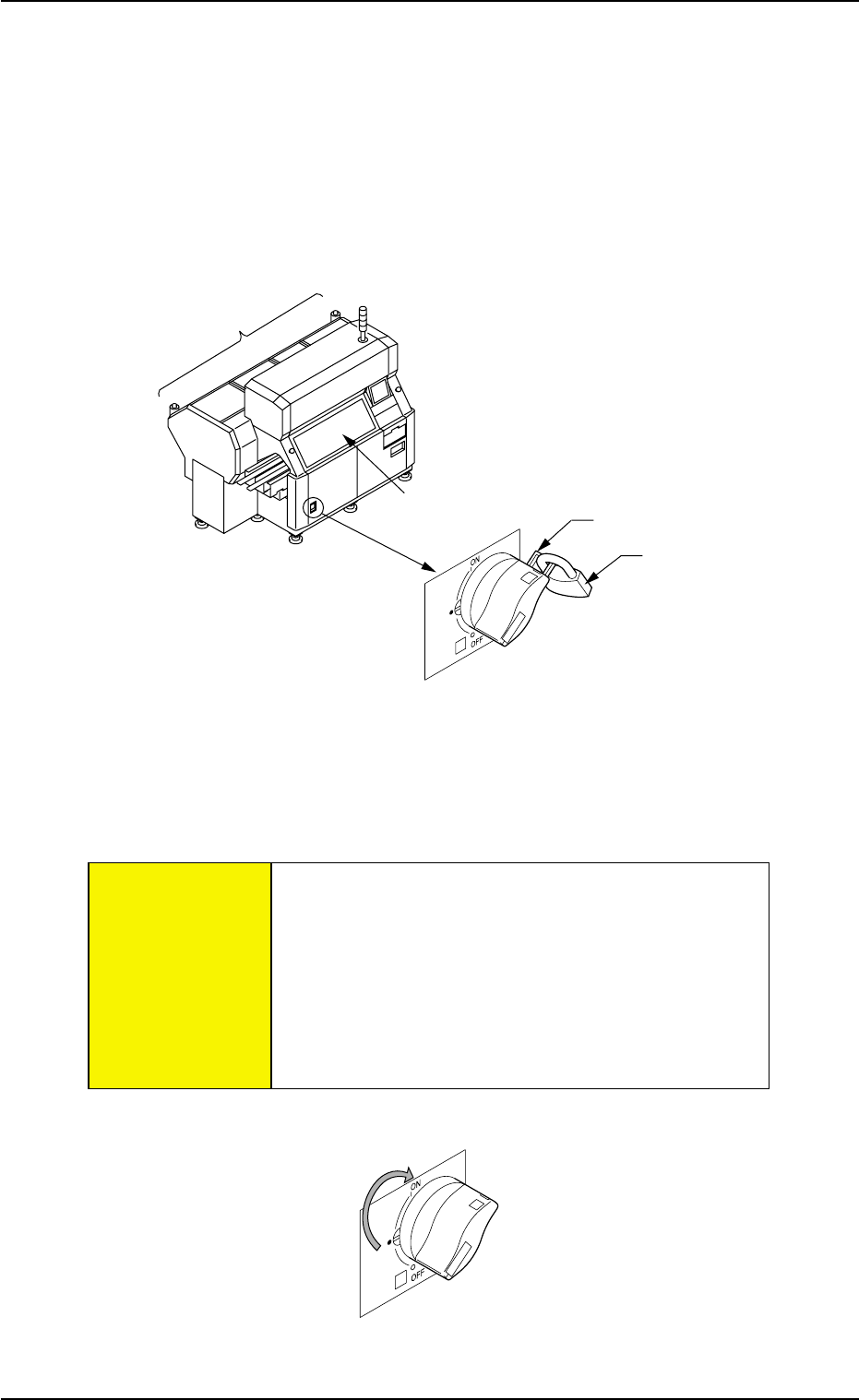

Fig. 1C6
(3) Set the power breaker to "ON".
Power is supplied to the machine.
To re-power the machine, shut down the main
breaker and wait for about 10 seconds. After that,
turn on the main breaker.
If the main breaker is turned on immediately after it
was shut down, the previous data (the data retained
before the current is intercepted) will not be reset, lead-
ing to a rare malfunction in the breaker.
Fig. 1C7
1.2 Preparation before Automatic Operation
Feeder Carriage
Sections
Front Safety
Door
Power Breaker
Lock Lever
Padlock
0412-002 3-5 AIL01EOPP
CAUTION
