1.4 T emporary Stop and Restart of Automatic Operation 1.4.1 Replenishment of Components and P .C.B.’ s There will be two cases of component supply replenishment during au- tomatic operation - Component Replenishment wit…

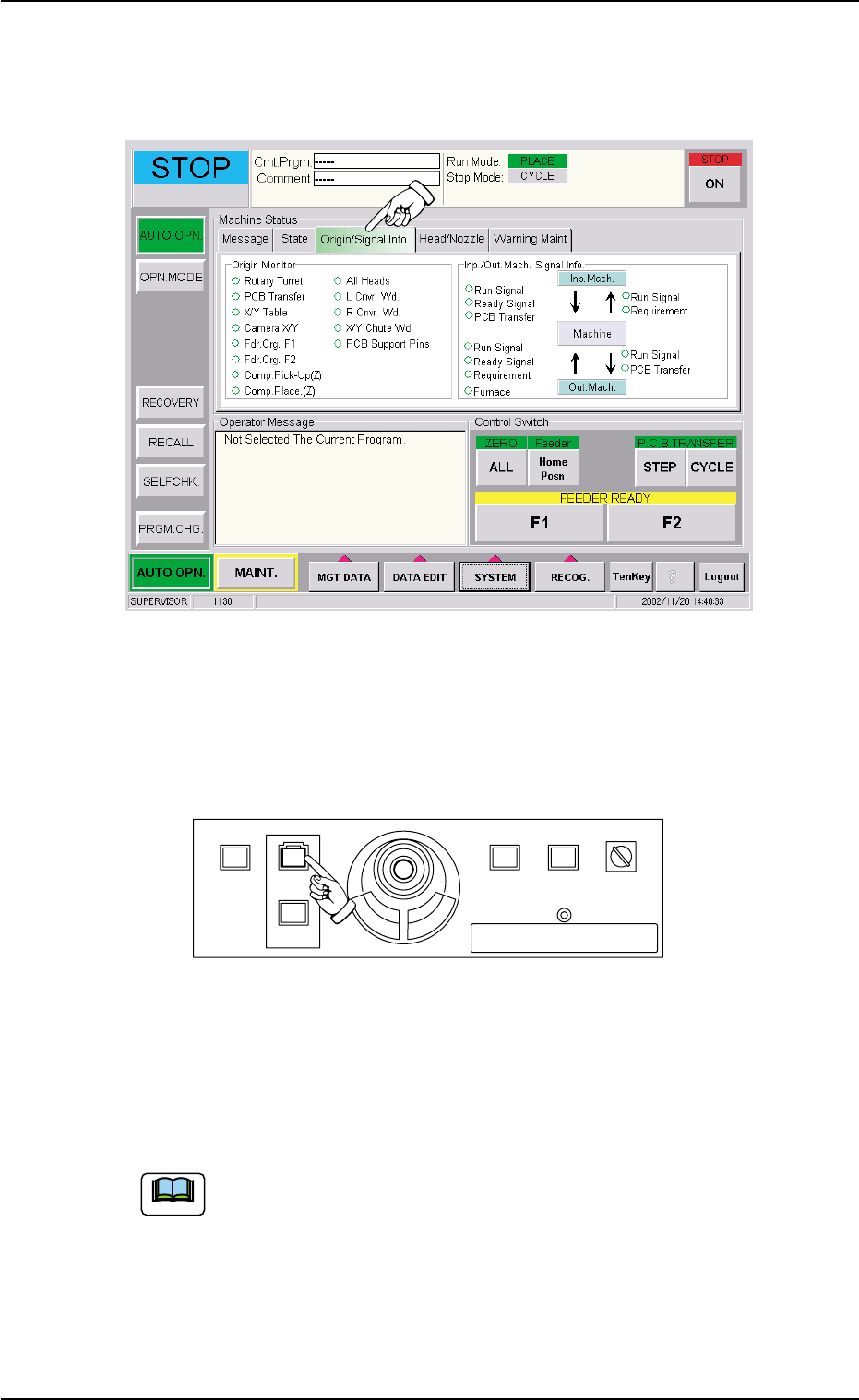

(5) Press the [Origin/Signal Info.] tab in the "AUTO OPN." submenu

window. The "Origin/Signal Info." tab sheet opens. Check the origin

marks.

Fig. 1C20

(6) When the [START] button on the front operation panel is pressed

while the lamp is flickering, the automatic operation (placement)

starts.

Fig. 1C21

When the automatic operation (component placement) starts, all origin

marks disappear and the LED (green) of the [START] button on the

front operation panel and the green lamp of the light tower illuminate.

(a) The automatic operation cannot be started unless the

"AUTO OPN." window is active.

(b) When a P.C.B. already exists in the P.C.B. positioning sec-

tion, the machine discharges the P.C.B. without placing

any component on the P.C.B.

POWER ON

STOP

START

ENABLE

RUN SETUP

OPERATION

LOCK

PNL CHANGE

1.3 Start of Automatic Operation

0305-001 3-12 AIL01EOPP

Note

1.4 Temporary Stop and Restart of Automatic

Operation

1.4.1 Replenishment of Components and P.C.B.’s

There will be two cases of component supply replenishment during au-

tomatic operation - Component Replenishment with Machine in Short

of Components and Intentional Component Replenishment.

Correct countermeasures are also required when the machine is short

of P.C.B.’s.

••

• Component Shortage Mode

When a component shortage error occurs during automatic opera-

tion, an error alarm is issued and the machine stops.

In this case, follow the steps below to replenish components and re-

start the automatic operation.

(1) Press the [RESET] button to cancel the error alarm.

(2) Open the feeder work area safety door and detach the tape feeder.

(3) Install the tape feeder loaded with components.

Refer to the instruction manual of the tape feeders for attach-

ment and detachment of the tape feeders.

The tape feeders should be seated securely.

Otherwise, they may collide with the feeder installa-

tion error detection sensors or pick-up errors will oc-

cur.

(4) After the replacement of the tape feeder, close the feeder work

area safety door and press the [FEEDER READY] button on the

pertinent side. Confirm that the "AUTO OPN." window is active on

the touch screen and press the [START] button. The automatic op-

eration re-starts.

1.4 Temporary Stop and Restart of Automatic Operation

CAUTION

0412-002 3-13 AIL01EOPP

Note

••

• Intentional Component Replenishment during Automatic

Operation

(1) Press the [STOP] button on the front operation panel to stop the

machine temporarily.

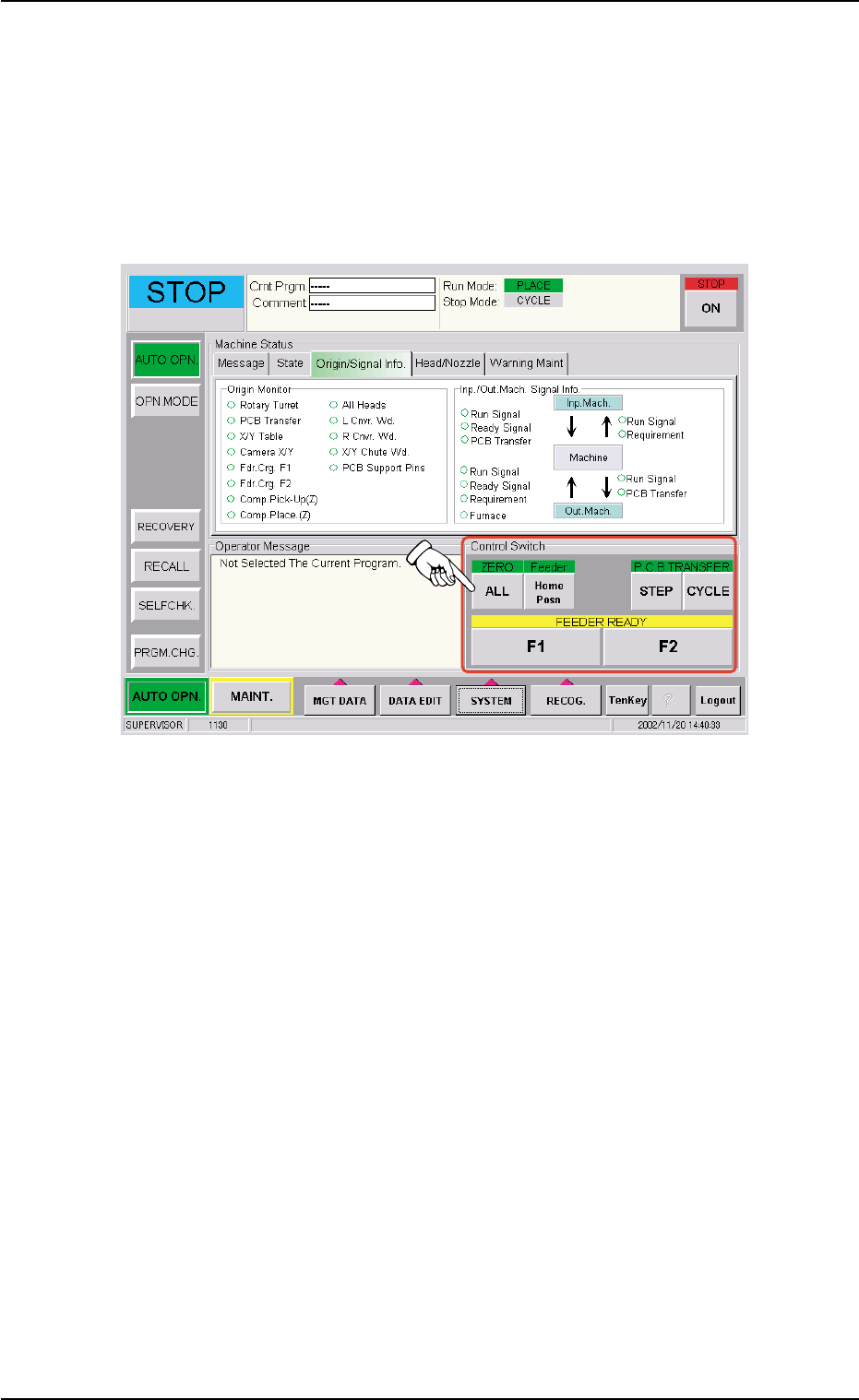

(2) Press the [ALL] button (entitled "ZERO") in the "Control Switch"

group box of the "AUTO OPN." window (submenu) to zero the de-

vices.

Fig. 1C22

(3) Open the feeder work area safety door and detach the tape feeder

in component shortage.

(4) Load the tape feeder with new components and install it on the

feeder carriage.

(5) Press one of the buttons (entitled "FEEDER READY") related to

the pertinent tape feeder in the "Control Switch" group box in the

"AUTO OPN." submenu window.

(6) Close the feeder work area safety door and press the [FEEDER

READY] and [START] buttons. The automatic operation re-starts.

1.4 Temporary Stop and Restart of Automatic Operation

0305-001 3-14 AIL01EOPP
