1.5.2 Interruption with [EMERGENCY STOP] Switch

Use the [EMERGENCY STOP] switch to immediately stop the machine

in an emergency.

An error alarm is issued and the LED of the [POWER ON] button illumi-

nates in red.

Fig. 1C26

Refer to "Section 4 Remedy of Simple Trouble" in "Volume 1"

for the procedures to reset the machine to the normal condition

from an emergency stop.

1.5 Interruption of Automatic Operation

0305-001 3-19 AIL01EOPP

Note

1.6 End of Automatic Operation

1.6.1 Stop of Automatic Operation

(1) Confirm that "CYCLE" (*1) is set as "Stop Mode".

(2) When the [ON] button (*3, entitled "STOP") is pressed, each device

returns to its stationary position after the machine has placed com-

ponents on the P.C.B.’s inside the machine.

The LED of the [START] button and the green lamp (tower light)

extinguish and the automatic operation stops.

Fig. 1C27

When "STEP" is set as "Stop Mode" (*1), select the [CYCLE]

button (*2, entitled "STOP") in the "Run Mode 1 (or Run Mode

2)" tab sheet. "CYCLE" is set as "Stop Mode" (*1).

1.6 End of Automatic Operation

0406-003 3-20 AIL01EOPP

Note

1.7 Shut-Down Operation

1.7.1 Shut-Down Procedure

The following explains how to shut down the power to the machine.

Be sure to log out from an operation window to

open the "Login Type Selection" window and go

through the shutdown procedure by pressing the

[SHUT DOWN] button before turning off the

power to the machine.

• When the power is shut down at a window other

than the "Login Type Selection" window, the saved

data (the management data, various data on the

hard disk, etc.) may be deleted.

Operation Procedure

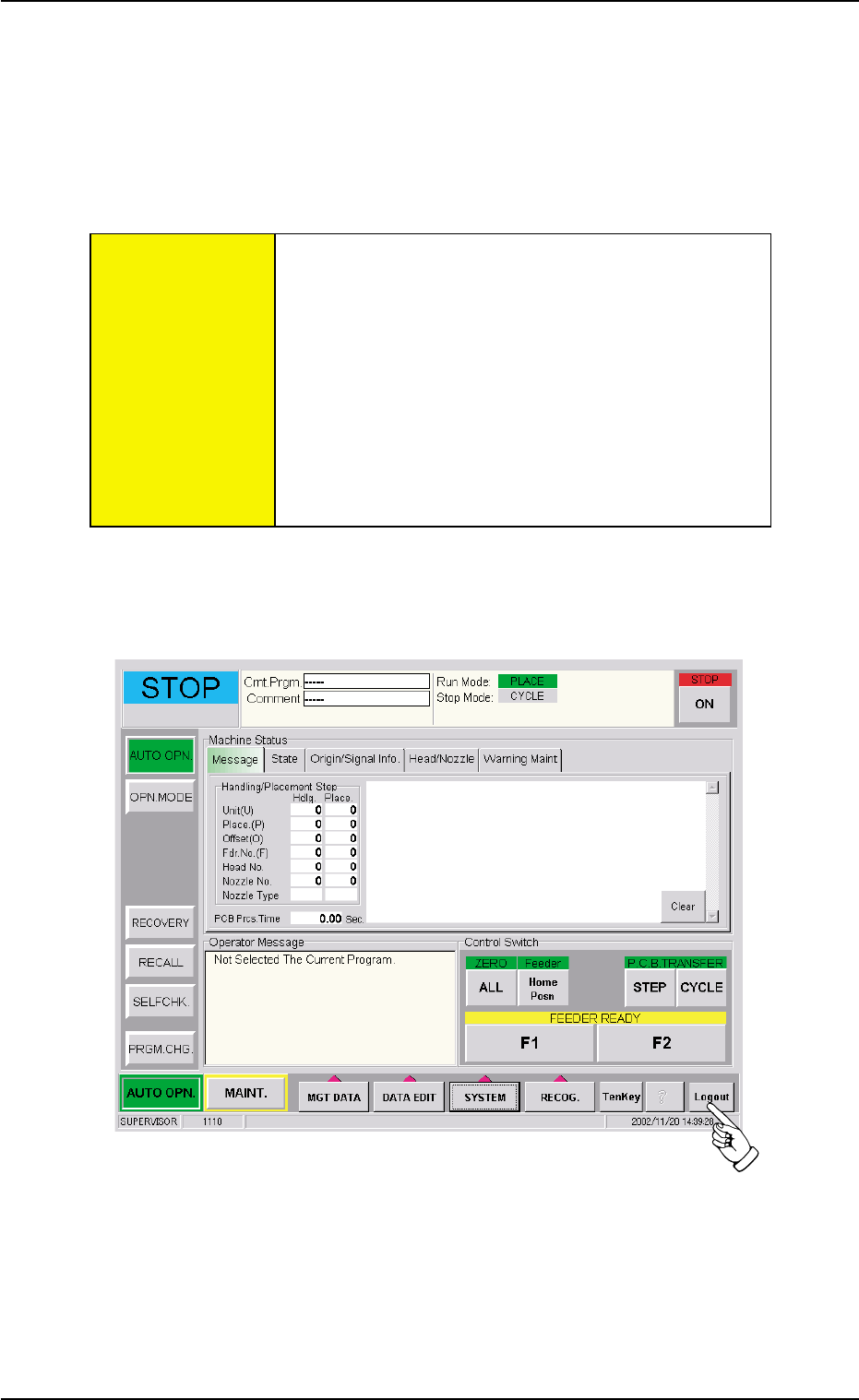

(1) Press the [Logout] button on the main menu bar.

Fig. 1C28

1.7 Shut-Down Operation

CAUTION

0412-002 3-21 AIL01EOPP
