*6 [LOCK] Lamp • While the lamp is ON, it indicates that the selected operation is locked. • When the operation panel is operated from the unavailable side, the [LOCK] lamp flickers. T o cancel the flickering of the lamp…

*3 [STOP] Button

• This button is used to stop the automatic operation.

• When this button is pressed during X/Y table test, the test operation stops.

• When this button is pressed during zeroing operation, the zeroing opera-

tion of each device is interrupted, excluding the P.C.B. transfer.

*4 [ENABLE] Button

• When the [ON] button (entitled "MOVE") is pressed on the touch screen,

the lamp of the [ENABLE] button illuminates for two seconds. When the

[ENABLE] button is pressed with its lamp "ON", the machine performs

various operations selected in the operation sheets.

*5 [PNL CHANGE] Button

• This button is used to select either the front or the rear operation panel.

(a) The other operation panel can be selected by pressing the

[PNL CHANGE] button on the unavailable (invalid) side only

when the currently selected panel is not set in the "Operation

Locked" mode.

(b) While the LED of this button is ON, the followings become

available.

Front Touch Screen

[START] Button

[STOP] Button

[ENABLE] Button

[OPERATION] Switch

[EMERGENCY STOP] Switch

Pointing Device

Keyboard

ways available regardless of the [PNL CHANGE] button.

(d) When the panel operation is not locked and the [STOP] button

on the unselected operation panel is pressed, the operation

panel on the pressed button side becomes activated automati-

cally.

• When this button is pressed with the LED being "ON", only the front opera-

tion panel becomes available in operations (Operation Locked) and the

[LOCK] lamps on both front and rear operation panels illuminate.

To cancel the "LOCK" mode, press this button again.

2.3 Operational Measures

0305-001 1-14 AIL01EOPP

Note

*6 [LOCK] Lamp

• While the lamp is ON, it indicates that the selected operation is locked.

• When the operation panel is operated from the unavailable side, the [LOCK]

lamp flickers.

To cancel the flickering of the lamp, press the [PNL CHANGE] button and

follow the steps to set the operation-lock mode again.

*7 [OPERATION] Switch

• The selection key must be inserted to change over the [OPERATION] switch

to "RUN" or "SETUP".

The [OPERATION] switch must be set to the "RUN" side for automatic

operation.

The switch can be changed over to "RUN" or "SETUP" only when

the machine is in the "STOP" mode.

• When the switch is changed to the "SETUP" side, the machine is set as

follows.

(a) The red, yellow, and green lamps of the light tower will illu-

minate (initial setting of the machine upon shipment).

(b) The following operations are prohibited regardless of the front

safety door condition (opened/closed).

Automatic Operation, P.C.B. Transfer (Cycle) Operation, Ze-

roing Operation, Device Test, Unit Adjustment, and Teach-

ing Operation

A single operation of each menu is possible though its

continuous operation is prohibited.

eration panel (operations locked).

No operations are accepted on the rear operation panel.

• When the [OPERATION] switch is set to the "SETUP"

side, the interlock function of the front safety door is

deactivated and it may cause critical injury to the

operator.

• Do not operate the machine with the [OPERATION]

switch in the "SETUP" mode except for the setup

operations.

• Do not keep the selection key inserted unless nec-

essary. The key shall be stored by the person in

charge.

• When the selection key is turned forcibly, the switch

may be damaged.

2.3 Operational Measures

0511-003 1-15 AIL01EOPP

Note

DANGER

*8 [EMERGENCY STOP] Switch

• This button is used to stop the machine immediately in an emergency.

• When this button is pressed, the power is turned off and the machine stops

immediately.

When the power is turned off, the LED of the [POWER ON] button on the

operation panel illuminates in red.

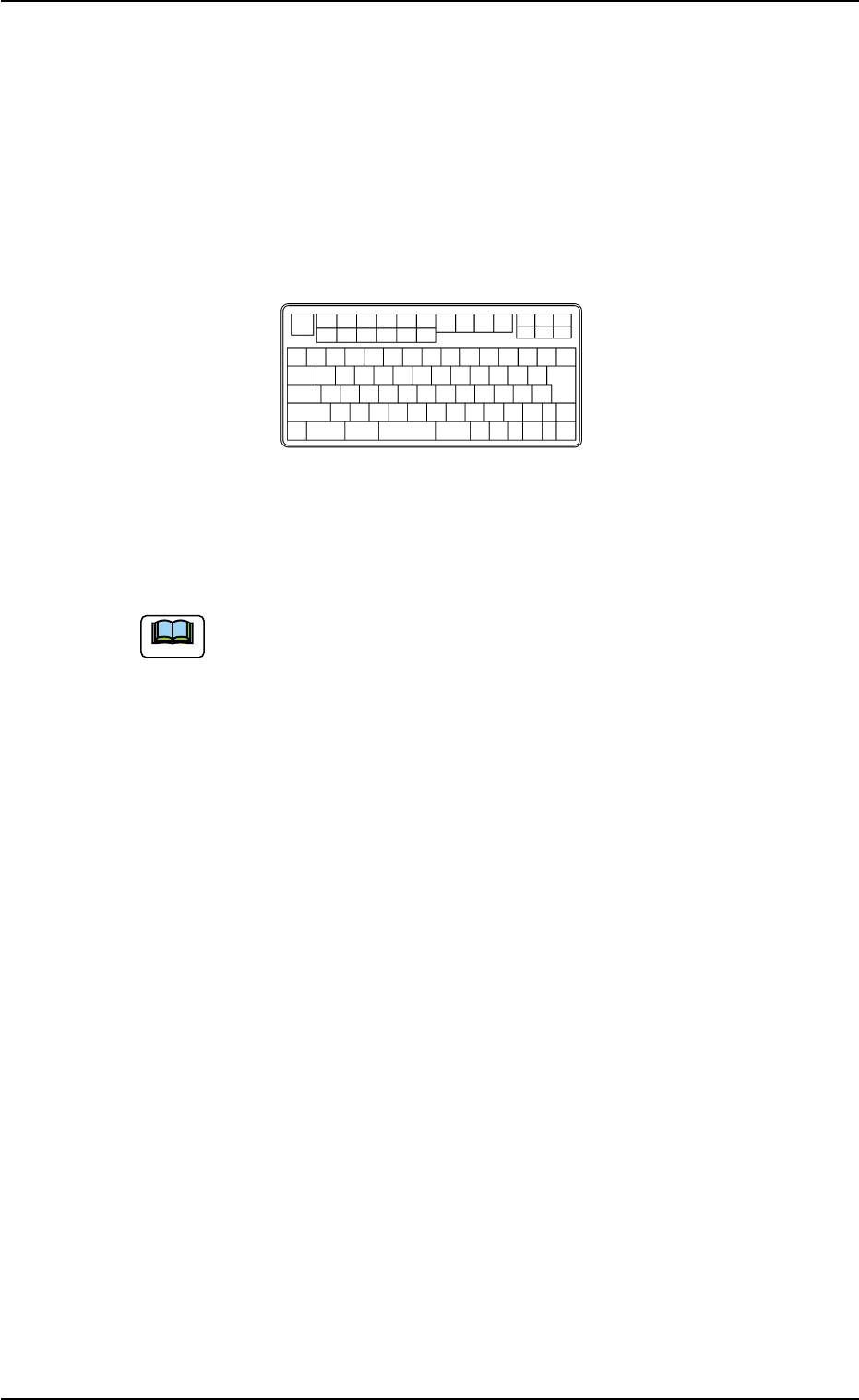

*9 Keyboard

Fig. 1A12

This keyboard can be used to enter alphanumeric characters in edit

windows for pattern programs and component data.

To enter numerals in one of the windows that belong to "AUTO

OPN." or "MAINT.", the edit window on the screen can be used.

2.3 Operational Measures

0305-001 1-16 AIL01EOPP

Note
