1.2.3 Preparation for Components and P.C.B.’s

••

• Installation of Tape Feeders

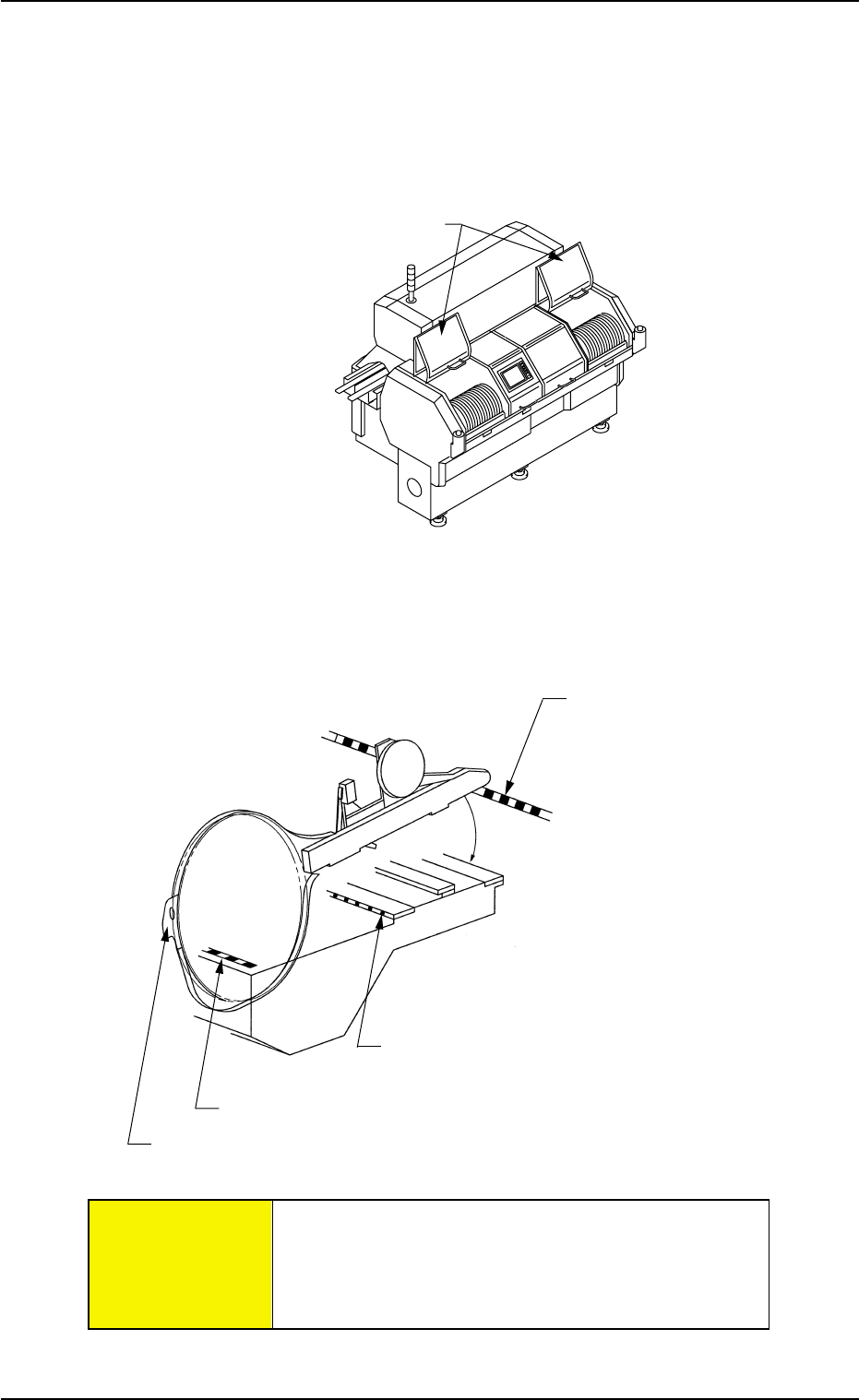

(1) Open the feeder work area safety door of the feeder carriage

where the tape feeders should be installed.

Fig. 1C14

(2) Check which type of the tape feeder should be installed in which

slot No. (Fdr. No.). After that, install the tape feeders correctly.

Fig. 1C15

The tape feeders should be seated securely.

Otherwise, they may collide with the feeder installa-

tion error detection sensors or pick-up errors will oc-

cur.

1.2 Preparation before Automatic Operation

Feeder Work Area Safety Doors

Fin

er Hole

Rear Fdr. No. Plate

Front Fdr. No. Plate

Center Fdr. No. Plate

CAUTION

0412-002 3-9 AIL01EOPP

Refer to "Attachment and Detachment of Tape Feeders onto

Feeder Carriage" in the instruction manual of tape feeders for

details.

(3) After the tape feeder has been attached, close the feeder work

area safety doors.

Press the [FEEDER READY] buttons and check that the lamps

of these buttons are ON.

••

• Preparation for P.C.B.’s

In the case of normal automatic operation, confirm that P.C.B.’s are

prepared in the input machine.

When this machine is operated singly (actual placement test,

etc.), follow the steps below.

(1) Set the [OPERATION] switch to the "SETUP" side and open the

front safety door.

Fig. 1C16

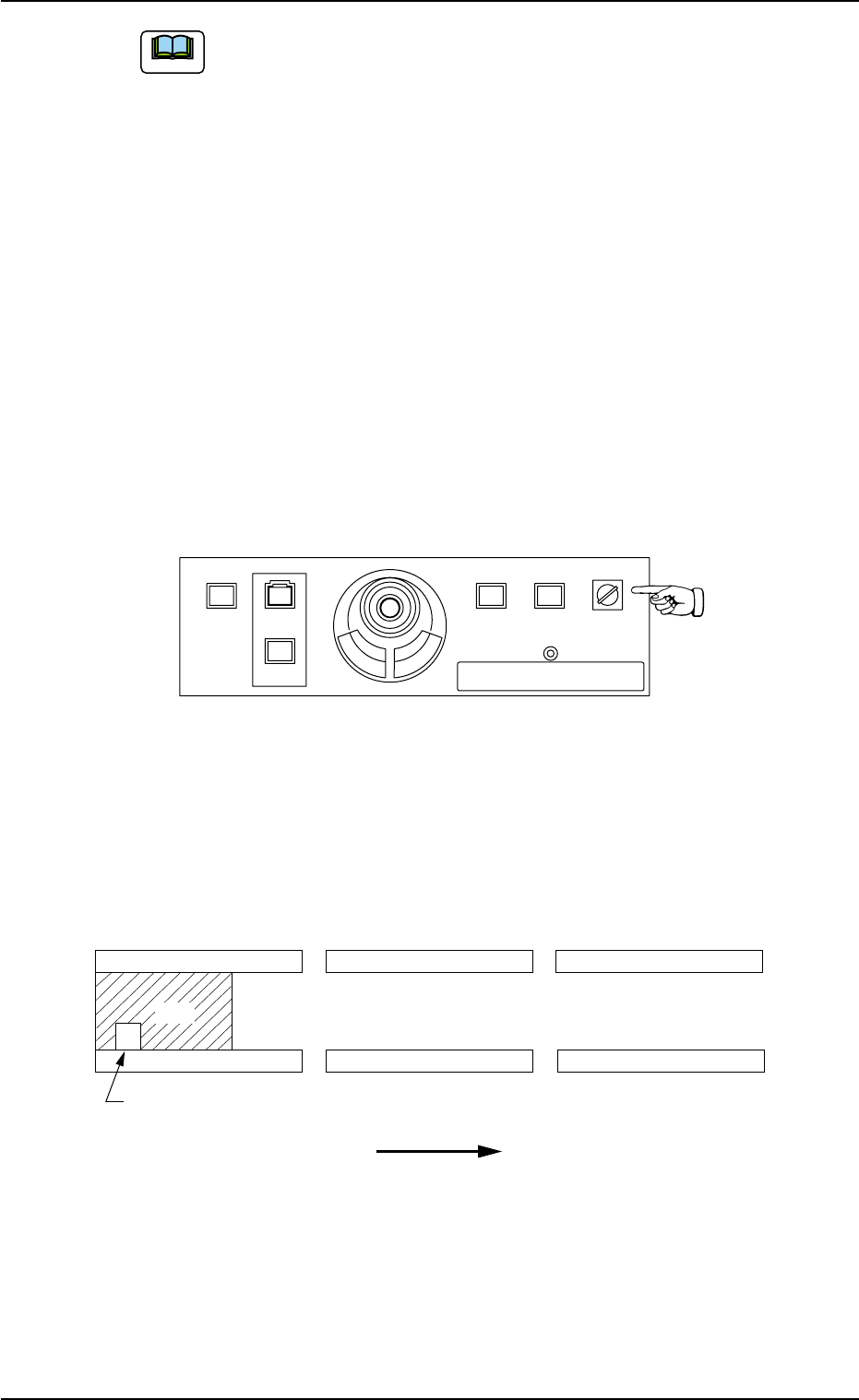

(2) Set a P.C.B. on the L conveyor (input conveyor) such that the

P.C.B. detection sensor is turned on (the red LED of the sensor

illuminates).

Fig. 1C17 P.C.B. Flow Direction: From Left to Right

POWER ON

STOP

START

ENABLE

RUN SETUP

OPERATION

LOCK

PNL CHANGE

L Conveyor

(Input Conveyor) (P.C.B. Positioning Section)

R Conveyor

(Output Conveyor)

L Conveyor P.C.B. Detection L Sensor

P.C.B. Flow Direction

P.C.B.

1.2 Preparation before Automatic Operation

0305-001 3-10 AIL01EOPP

Note

1.3 Start of Automatic Operation

Operation Procedure

(1) Confirm that the front safety door is closed.

(2) Set the [OPERATION] switch on the front operation panel to the

"RUN" side and be sure to remove the selection key from the ma-

chine.

Fig. 1C18

(3) Check the surroundings of the machine and confirm safety before

starting the automatic operation.

Before starting the automatic operation, check care-

fully that there is no person or objects (tools, parts,

etc.) around the moving mechanisms of the machine

(especially, the other side of machine operation).

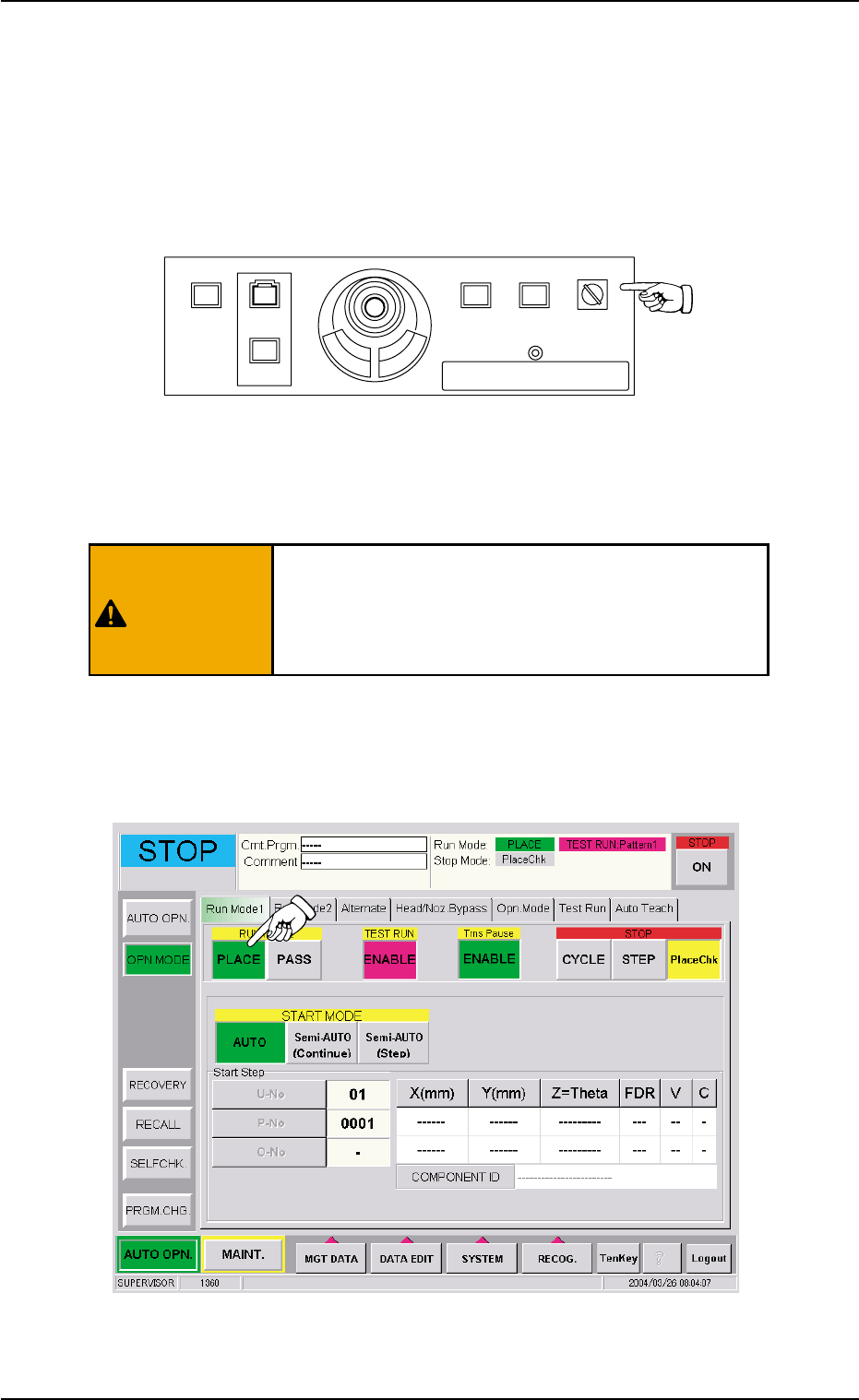

(4) Open the "OPN. MODE" window (submenus) on the touch screen

and press the [PLACE] button entitled "RUN MODE" in the "Run

Mode 1" tab sheet.

Fig. 1C19
