2.4.3 P .C.B. T ransfer Section Fig. 1A23 The P .C.B. transfer section is equipped with a feed claw that pushes and transfers the P .C.B. (the P .C.B. received from the input machine by the L conveyor when the flow direc…
2.4.2 L and R Conveyor Sections
Fig. 1A22
These conveyors are used to receive a P.C.B. from the input machine
and transfer it to the place right before the X/Y table or carry the compo-
nent-placed P.C.B. to the output machine.
When the P.C.B. flow direction is "L Æ R" (P.C.B. flow from left to right),
the L conveyor receives a P.C.B. from the input machine and transfers
it to the place right before the X/Y table.
The R conveyor receives the component-placed P.C.B. from the X/Y
table and transfers it to the output machine.
When the P.C.B. flow direction is "R Æ L" (P.C.B. flow from right to left),
the R conveyor receives a P.C.B. from the input machine and transfers
it to the place right before the X/Y table.
The L conveyor receives the component-placed P.C.B. from the X/Y
table and transfers it to the output machine.
2.4 Main Units
L Conveyor
R Conveyo
r
0305-001 1-27 AIL01EOPP
2.4.3 P.C.B. Transfer Section

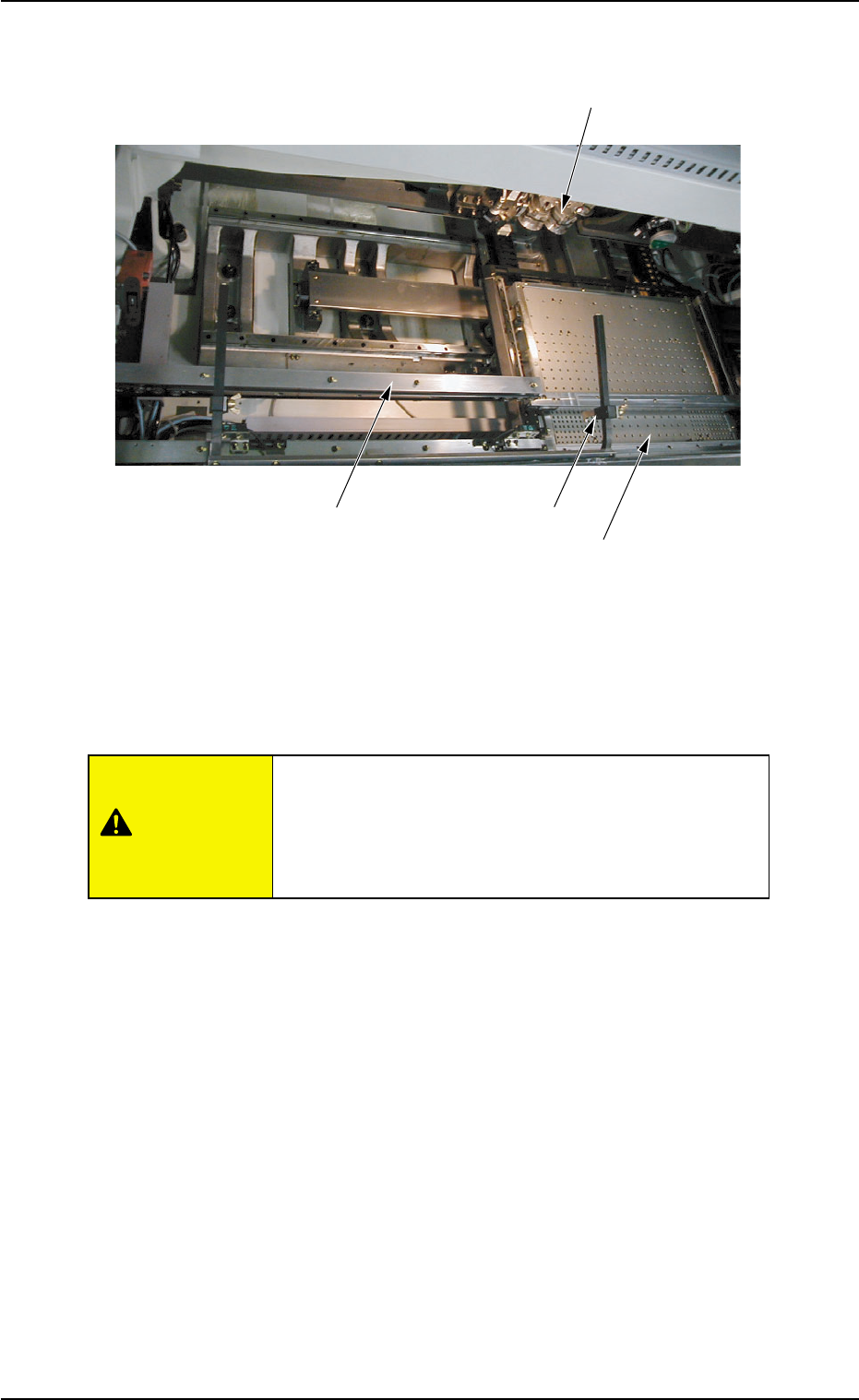

Fig. 1A23
The P.C.B. transfer section is equipped with a feed claw that pushes
and transfers the P.C.B. (the P.C.B. received from the input machine by
the L conveyor when the flow direction is "L Æ R") onto the X/Y table.
It is very dangerous for a person or a thing to come in
contact with the feed claw.
Special care is required during working with the front
safety door being open.
2.4 Main Units
0412-002 1-28 AIL01EOPP
Rotary Turret
L Conveyor
X/Y Table
P.C.B. Transfer Claw
CAUTION
2.4.4 X/Y Table Section

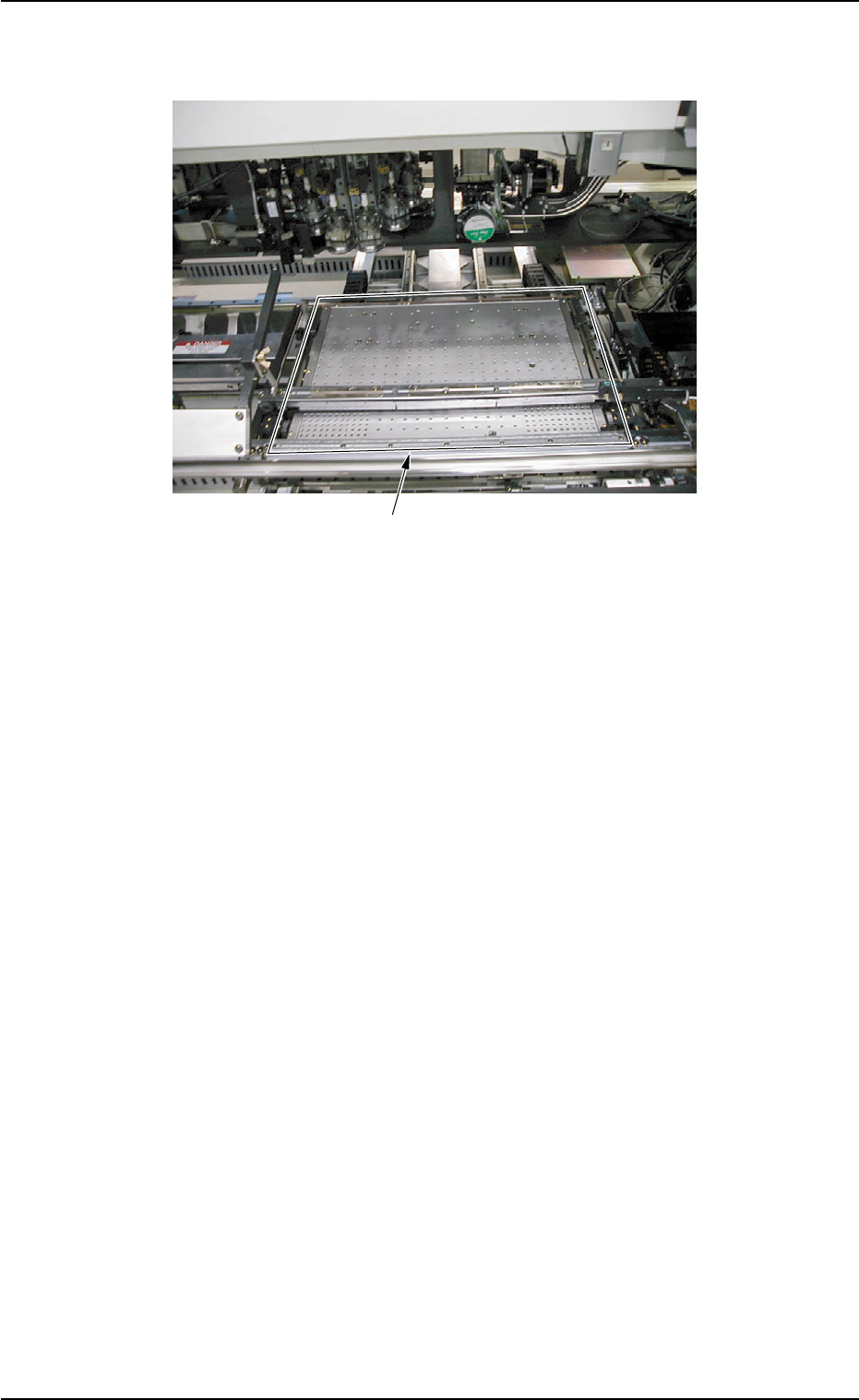

Fig. 1A24
The X/Y table section is provided with a mechanism that holds a P.C.B.
(sent from the conveyor on the input side) firmly on the X/Y table.
The firmly-held P.C.B. moves and stops under the placement heads
together with the X/Y table according to the pattern program data. Com-
ponents are placed on the P.C.B. there.
It is required to adjust the positioning pin, the positioning lever, and the
movable chute to firmly hold the P.C.B. (P.C.B. positioning).
2.4 Main Units
X/Y Table
0305-001 1-29 AIL01EOPP
