Section 4

Remedy of Simple Trouble

0305-001 4-A AIL01EOPP

This section describes how to troubleshoot simple problems

that can be solved by the machine operator.

When the operator cannot solve a problem, he/she should

get in contact with the supervisor (a person in charge of

machine management).

0305-001 4-B AIL01EOPP

1. Power Operation Impossible

Table 1D1

Symptom When the [POWER ON] button on the operation panel is pressed, the ma-

chine is not powered.

Cause (Cause 1) The [POWER ON] button on the operation panel is not held down

for more than one second.

(Cause 2) The power breaker is set to "OFF".

(Cause 3) The lamp of the [POWER ON] button on the operation panel illumi-

nates in red.

Remedy (Remedy 1) Hold down the [POWER ON] button on the front or the rear

operation panel for more than one second.

When the LED of the [POWER ON] button illuminates in yel-

lowish green, it indicates that the power is supplied to the ma-

chine.

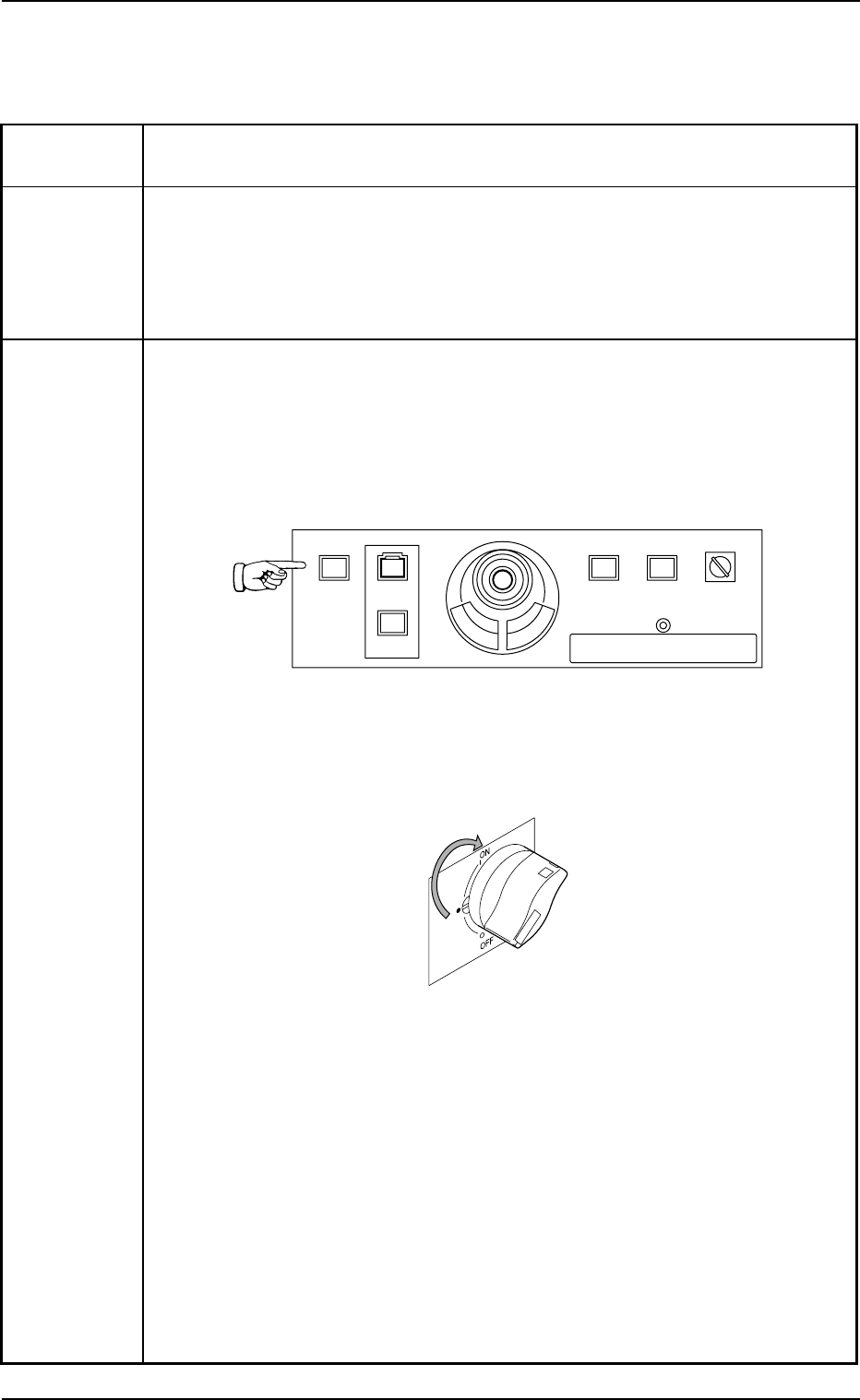

Fig. 1D1 Front Operation Panel

(Remedy 2) Set the power breaker to "ON".

Fig. 1D2

(Remedy 3)

• Wait until the program is started completely.

• Cancel the "Emergency Stop" mode to reset the machine to its normal

condition.

Refer to "3.1 [EMERGENCY STOP] Switch Pressed" for details.

• Close the front safety door.

• Set the main air pressure to "0.5 MPa (5.1 kgf/cm

)".

Refer to "1.1.1 Confirmation of Power Supply and Air Pressure" in "Section

3" for details.

1. Power Operation Impossible

0407-003 4-1 AIL01EOPP

POWER ON

STOP

START

ENABLE

RUN SETUP

OPERATION

LOCK

PNL CHANGE
