(5) Set the lever of the power breaker to the "OFF" position. Fig. 1C31 1.7.2 Locking the Power Breaker with the Padlock When the machine is not used for a long period of time, lock the power breaker using the …

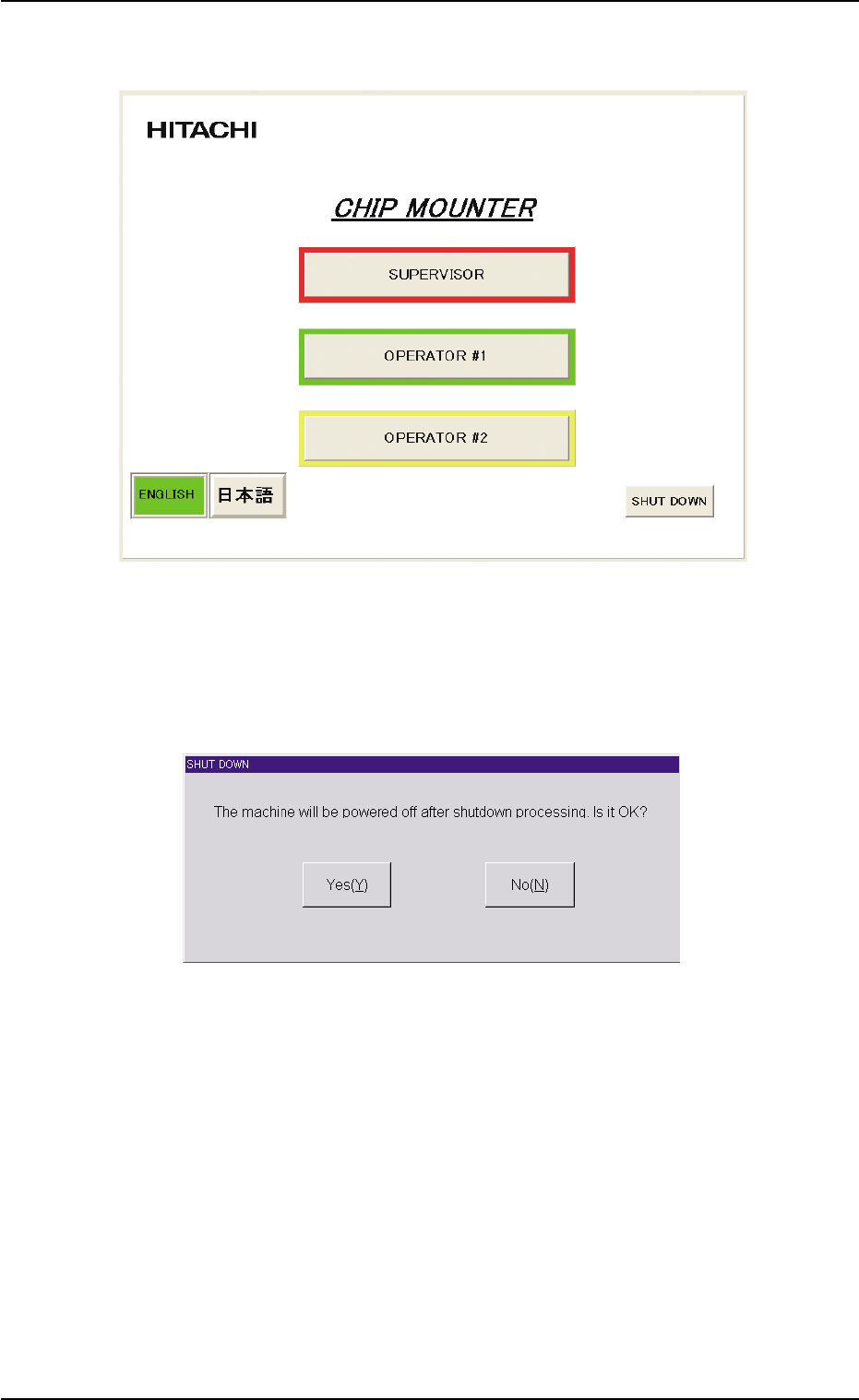

(2) The "Login Type Selection" window opens.
Fig. 1C29
(3) When the [SHUT DOWN] button is pressed in the "Login Type Se-
lection" window, the "SHUT DOWN" dialog box opens for the con-
firmation.
Fig. 1C30 "SHUT DOWN" Dialog Box for Confirmation
(4) When the [Yes(Y)] button is pressed, the power to the machine is
turned off.
When the [No(N)] button is pressed, the shut-down operation is
canceled.
1.7 Shut-Down Operation
0511-003 3-22 AIL01EOPP

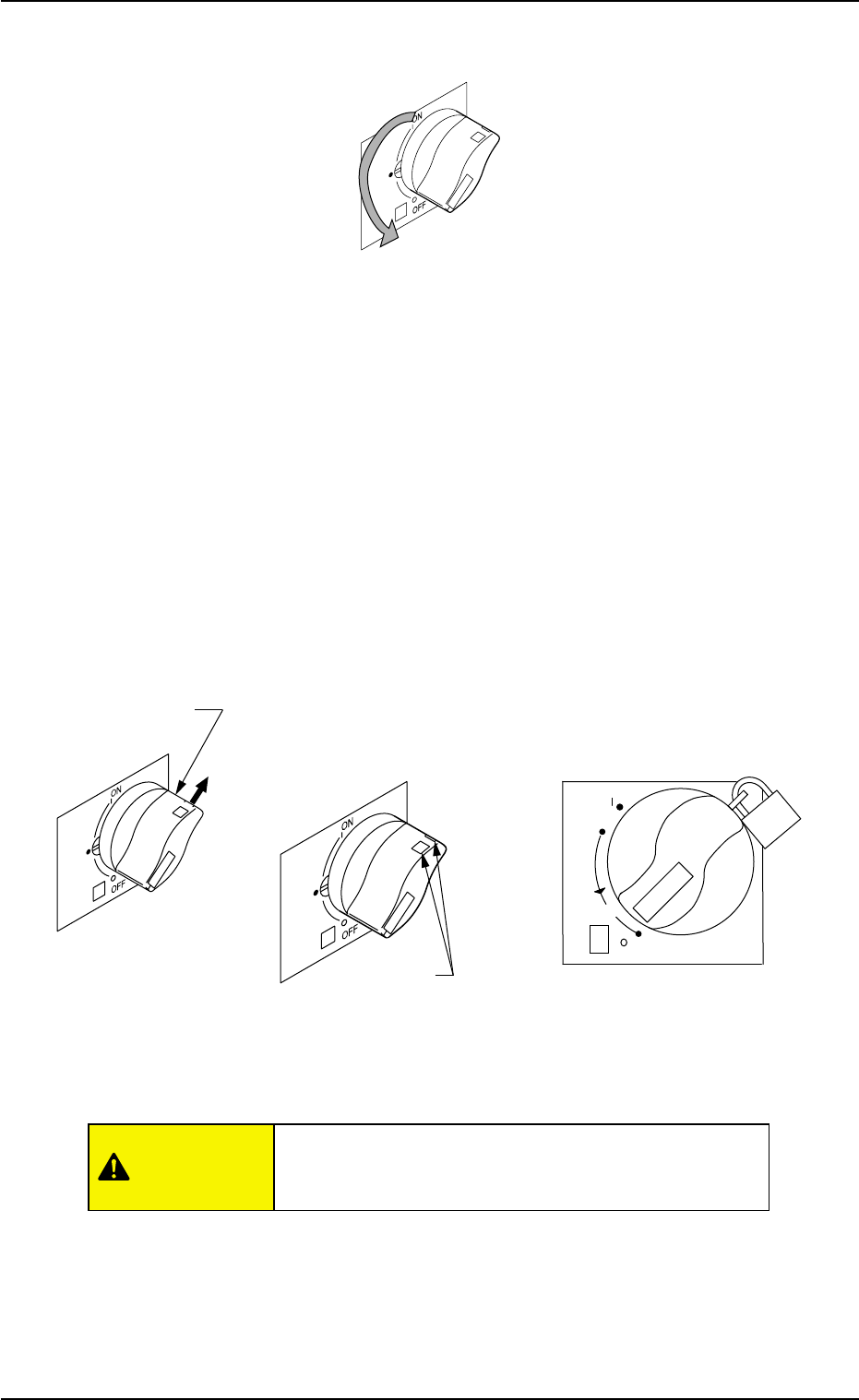

(5) Set the lever of the power breaker to the "OFF" position.
Fig. 1C31
1.7.2 Locking the Power Breaker with the Padlock
When the machine is not used for a long period of time, lock the power
breaker using the padlock.
(1) Pull out the lock lever of the power breaker in the A direction. See
the figure below.
Keep holding the lock lever. Otherwise, the lever will pull back.
(2) Engage the shackle of the padlock through the lock slots and lock
the crank.
Fig. 1C32
Keep the padlock key inaccessible to any person ex-
cept for the person in charge of maintenance.
1.7 Shut-Down Operation
reset
OFF
ON
tripped
push
20
Lock Slot
Lock Lever
(Before Padlocking) (Padlock)
A
CAUTION
0412-002 3-23 AIL01EOPP
2. "PASS" Mode
When the machine is set in the "PASS" mode, it just carries the P.C.B.
(input conveyor Æ P.C.B. positioning section Æ output conveyor) to the
output conveyor without placing any components on the P.C.B.
When the machine must transfer P.C.B.’s to the output machine without
placing any components, follow the steps below.
2.1 Start of Pass Operation
(1) Ensure the safety around the front safety door and the feeder car-
riage sections.

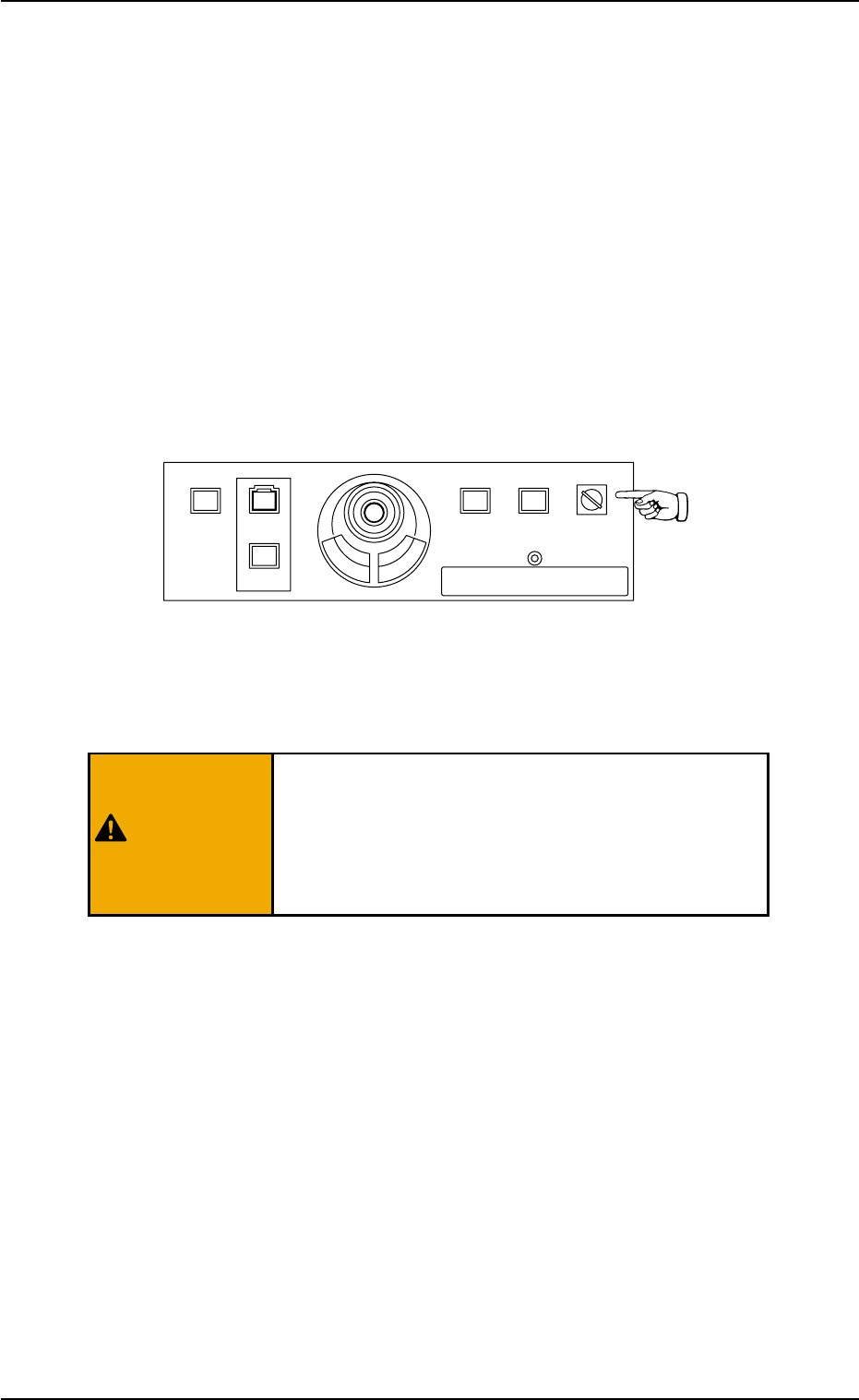

(2) Set the [OPERATION] switch on the front operation panel to "RUN".
Be sure to remove the key from the machine.
Fig. 1C33
(3) Check the surroundings of the machine and confirm safety before
starting the "PASS" operation.
Check carefully that there is no person around the
moving mechanisms of the machine. (Especially, the
other side of machine operation).
Make sure that no objects (tools, parts, etc.) remain
within the moving mechanisms of the machine.
2. "PASS" Mode
POWER ON
STOP
START
ENABLE
RUN SETUP
OPERATION
LOCK
PNL CHANGE
0412-002 3-24 AIL01EOPP
WARNING
