3 Configuration
3.1 Connection configuration in the LAN
20 Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020
Interface configuration
► Go to Routing -> Configuration -> Global and enable Routing Mode.
3 Configuration
3.1 Connection configuration in the LAN
Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020 21
► Go to Routing -> Configuration -> VLAN/Interface Configuration and configure the related
network interfaces.
► Activate Routing Mode, configure IP Address and Subnet Mask.
3 Configuration
3.1 Connection configuration in the LAN
22 Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020

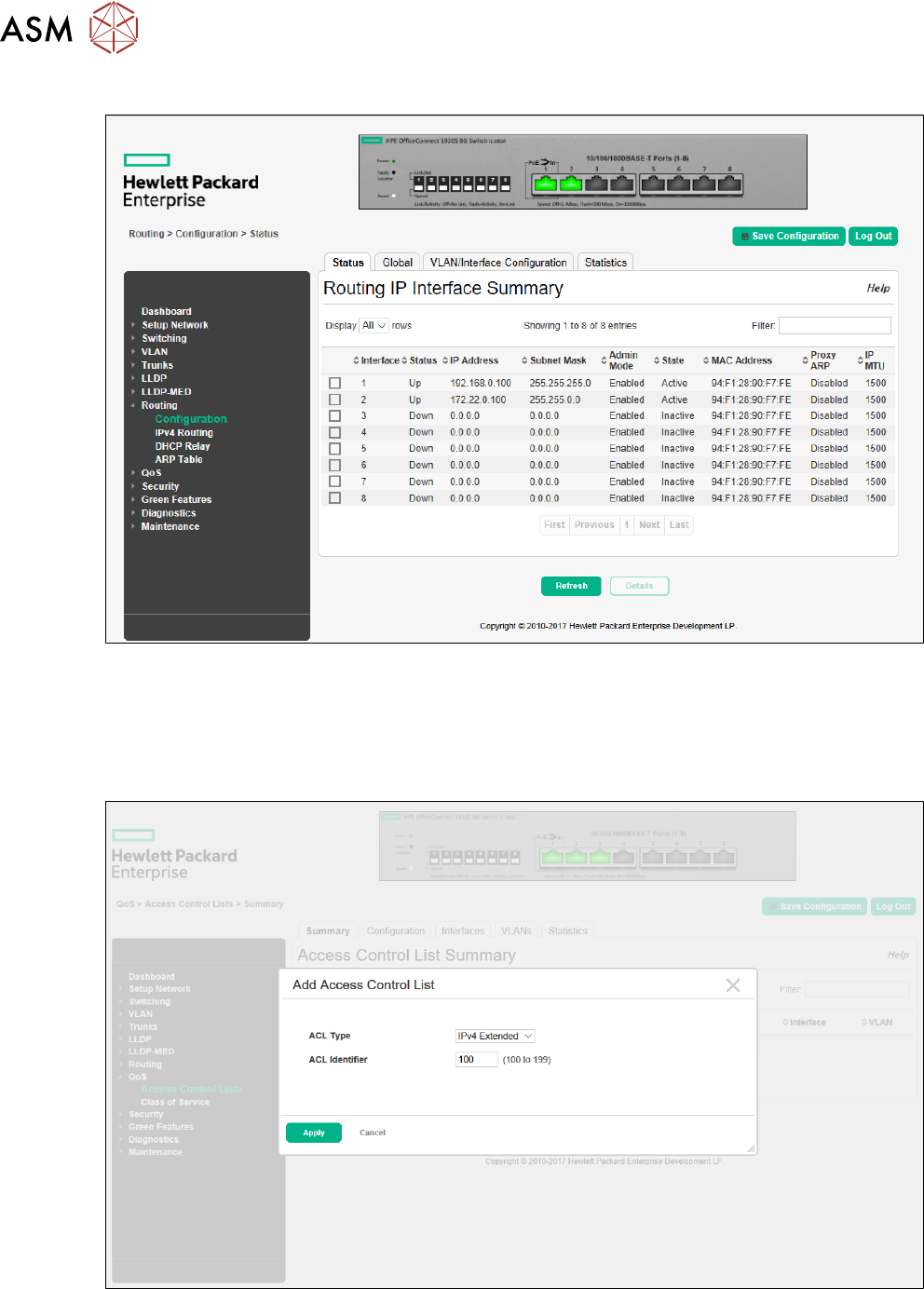

► The result under Routing -> Configuration -> Status looks like:
Setting up
► Create a connection between stacker and printer.
► The access control lists (ACLs) of the router need to be configured accordingly.
► Go to QoS -> Access Control Lists -> Summary and add a new IPv4 Extended ACL and
assign a number, e.g. 100.
