5 Operating the station software
5.1 Working with messages
44 Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020
Field Value/Meaning
From this machine to a higher-level machine.
Session# The number of the connection, in order to allow
the messages to be assigned.
Message The information transmitted.
Editing field - Sessions
Field Value/Meaning
Session# Number of the connection. If this number is
grayed out, the connection is not active.
Message Name of the higher-level system with which
messages were exchanged.
Display area - Selected message
The text of the selected message is displayed.
Icon Value/Meaning
Allows you to search for a text string in the dis-
played message.
See also
2 5.1.3 "Selection of message types" [}44]
5.1.3 Selection of message types
Select the messages to be displayed. This setting applies to both conveyor lanes and to the input
section or output section.
► Select the corresponding check box.
► Confirm your choice with Apply.
ð Restricts the messages that will be displayed to those selected here and closes the dialog
box.
5 Operating the station software
5.2 Apply board width of the IPC-HERMES-9852 data
Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020 45
5.2 Apply board width of the IPC-HERMES-9852 data

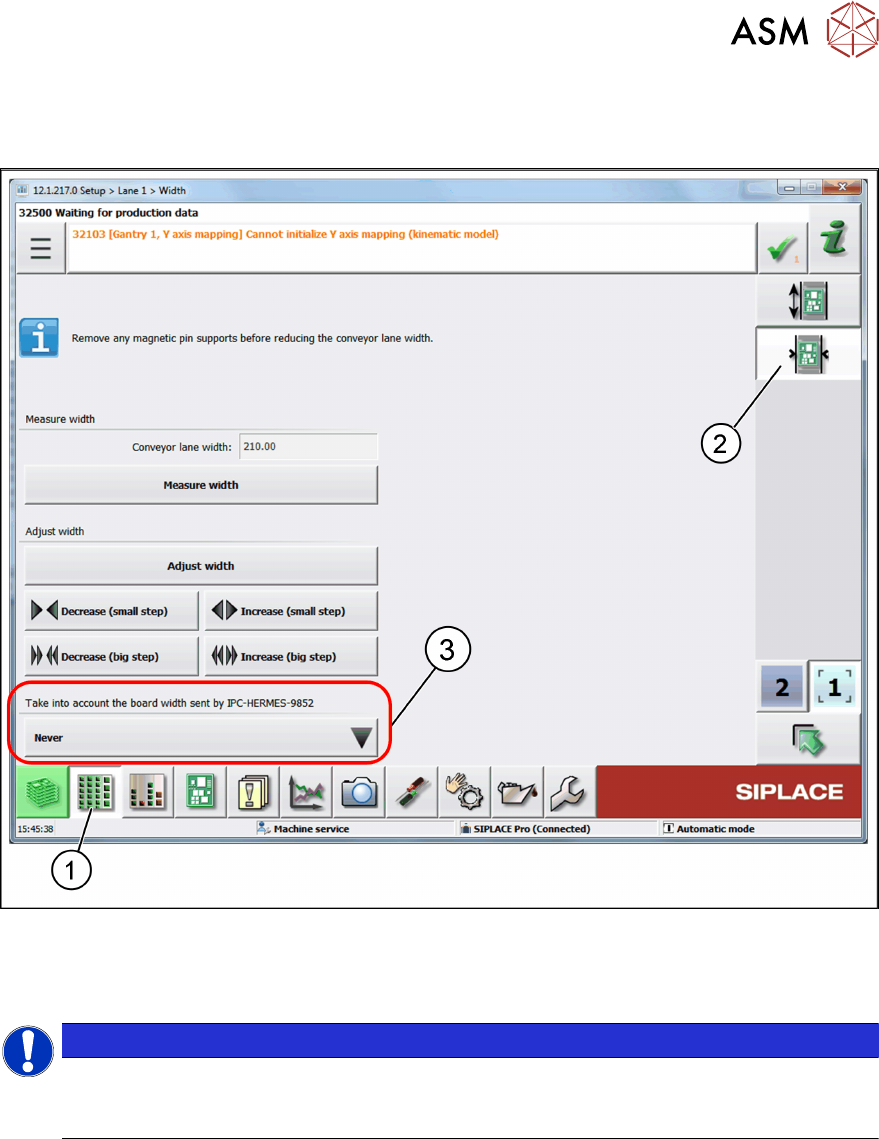

► Click on the Setup toolbar (1) and select Conveyor lane => Width (2) ....
Apply the Board Width sent by IPC-HERMES-9852 (3)
Choose whether the board width will be applied if it was sent via the IPC-HERMES-9852 messages
(BoardForecast" or "BoardAvailable"):
NOTICE
The board width of the Hermes message must be the same as the board width in
SIPLACEPro if either Only when barcode mode is active (default) or Always is set.
●
Only when barcode mode is active (default)
– Only when the machine is in barcode mode, the conveyor lane is set to the board width
specified in the message.
●
Always
– When a board width is sent via an IPC-HERMES-9852 message, it will be applied.
●
Never
– A board width sent via IPC-HERMES-9852 is always ignored.
5 Operating the station software
5.2 Apply board width of the IPC-HERMES-9852 data
46 Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020
