3 Configuration
3.4 Connection configuration for DEK printers
32 Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020
► Choose Hermes Upline Address and enter the IP address of the previous machine.
► Confirm with Accept.
► Choose Hermes Upline Port and enter the port number for the previous machine. The default
Hermes port number is 50101.
► Confirm with Accept.
► Choose Hermes Downline Address and enter the IP address of the permissible successor
machine.
NOTICE
Hermes Downline Address
The Hermes Downline Address can be left empty. In this case, any Hermes-compatible
station can connect to the printer. To allow a specific station to connect, enter the IP ad-
dress of this station.
► Confirm with Accept.
NOTICE
The port number of the successor cannot be configured by the printer. It is set to the default
port number for lane 1 (50101). A value must be entered for the Hermes Machine ID. This
value should be the serial number of the printer by default. The parameter is preset so that
no other value is accepted.
► Choose Back.
► Choose Back.
► Choose Back.
► Set the IP address and the port number for the printer at the upstream and downstream sta-
tions.
3 Configuration
3.5 Connection configuration for ASM ProcessLens
Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020 33
3.5 Connection configuration for ASM ProcessLens
This section describes the basic configuration of IPC-HERMES-9852 in the ASM ProcessLens soft-
ware version 4.0.1.0 or higher.
Currently IPC-HERMES-9852 is supported only on a dual lane platform; therefore, this document
describes the procedure to configure an IPC-HERMES-9852 on a dual lane system. Differences in
configuration for a single lane platform will be described where necessary.

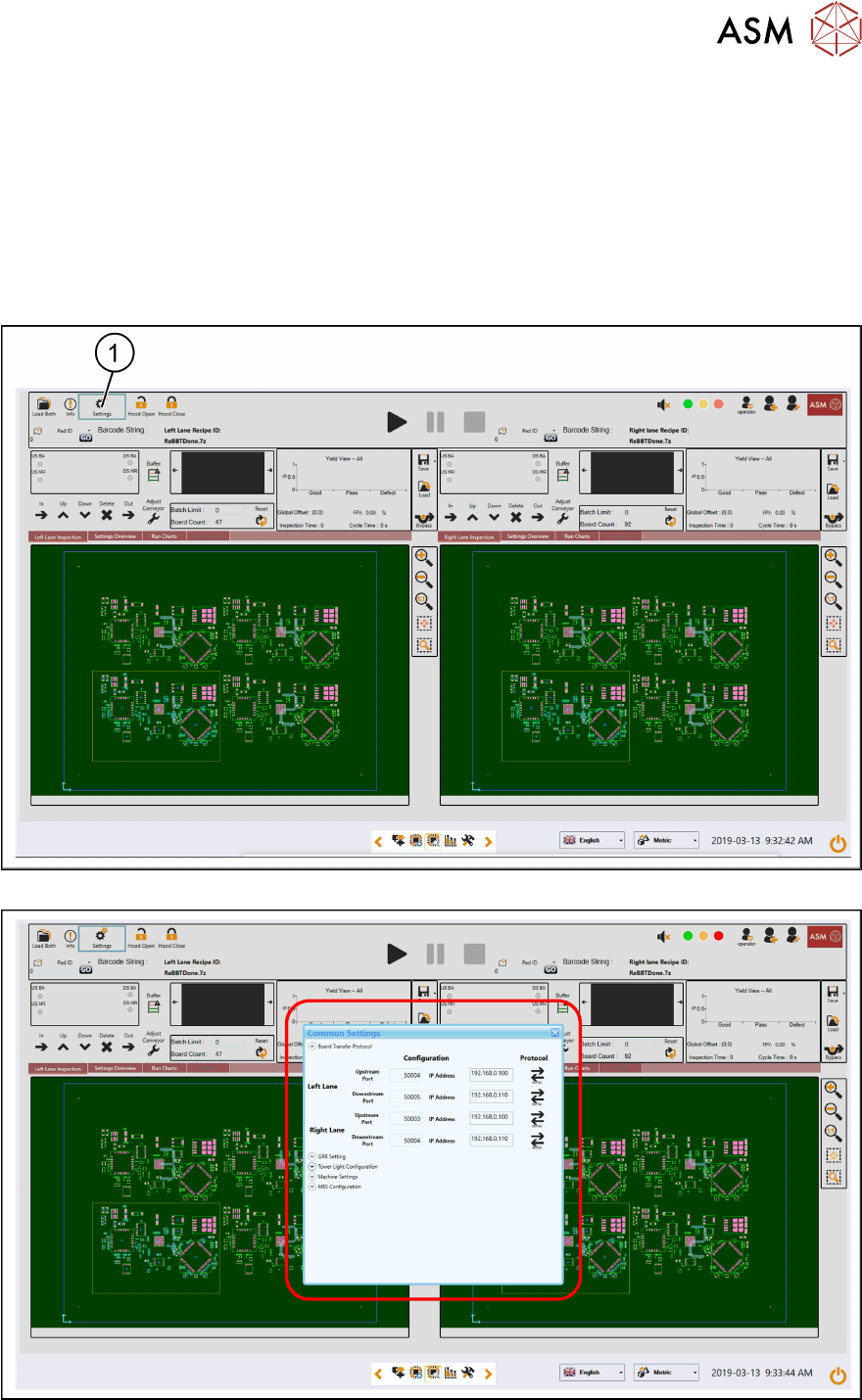

► Start the ASM ProcessLens software.
► Click on the Settings (1) icon.
► Navigate to the Board Transfer Protocol sub-section.
3 Configuration
3.5 Connection configuration for ASM ProcessLens
34 Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020
Define the required port and IP address settings for each lane end-point.
●
Left lane upstream
●
Right lane upstream
●
Left lane downstream
●
Right lane downstream
NOTICE
The single lane will only have the right lane end-points.
All port definitions are editable; however, they must be unique. The upstream port values must fol-
low the definitions specified by the upstream equipment, the downstream ports may be any avail-
able port number.
The recommended port numbers for the downstream end-points are 50004 and 50005.
The system will not accept invalid inputs such as non-numeric characters in the port fields.

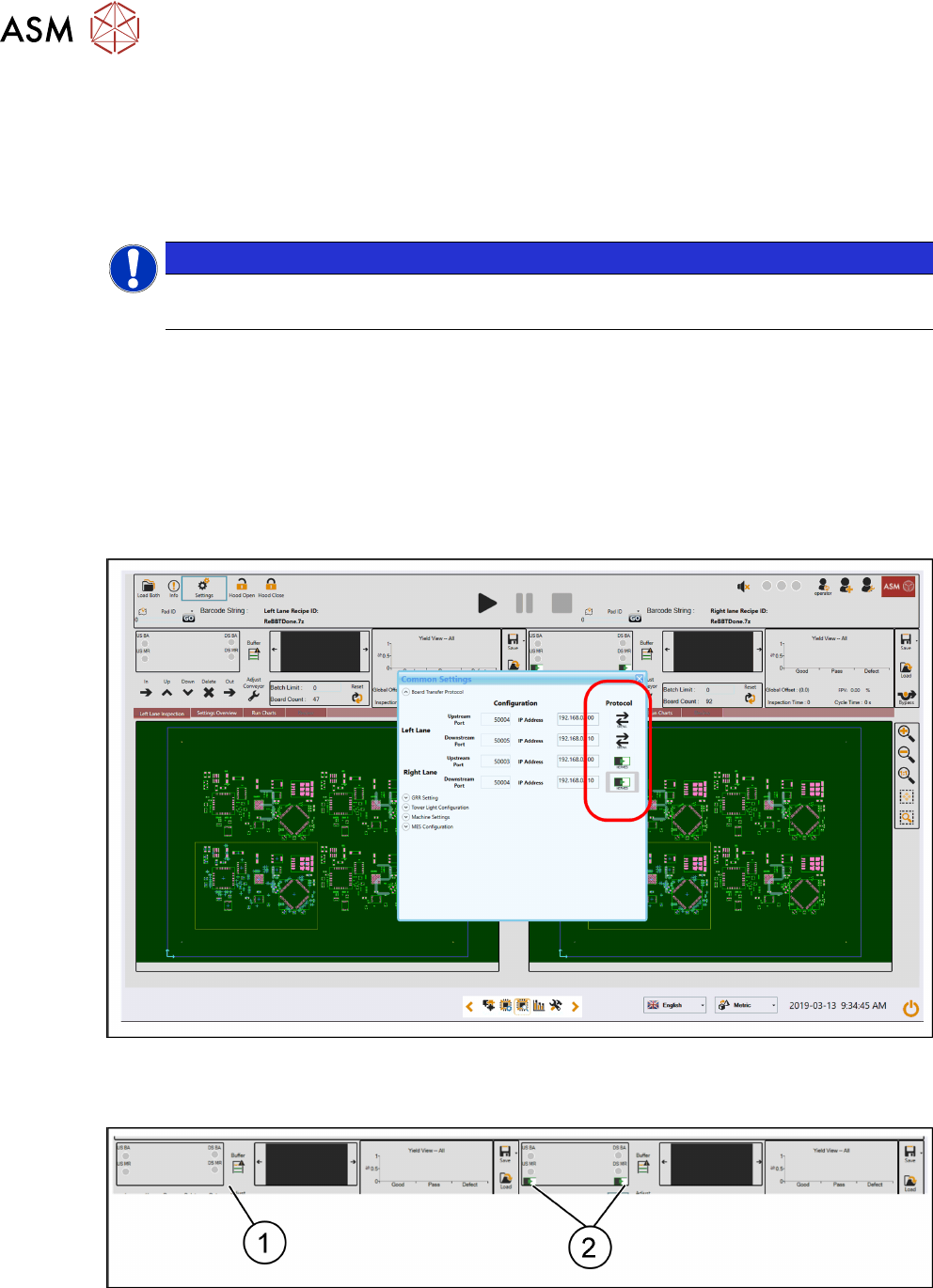

► Click the transfer protocol icon to switch between IPC-HERMES-9852 and SMEMA; the proto-
cols can be mixed (i.e. right lane can Use IPC-HERMES-9852 and the left lane SMEMA).
► Close the "Settings" dialog to commit the settings.
The transfer protocol iconography will change according to the activated protocol.
The lane status sections of the user interface shall also show where IPC-HERMES-9852 is active
by displaying the IPC-HERMES-9852 iconography.
1. Left lane is using SMEMA.
2. Right lane is using IPC-HERMES-9852.
IPC-HERMES-9852 log data is available in the system log folder, the data is logged in individual
files. The logging format follows the ASM ProcessLens standard for compatibility with other logs,
but it is easily transformed into other formats such as xml.
