3 Configuration
3.1 Connection configuration in the LAN
Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020 23

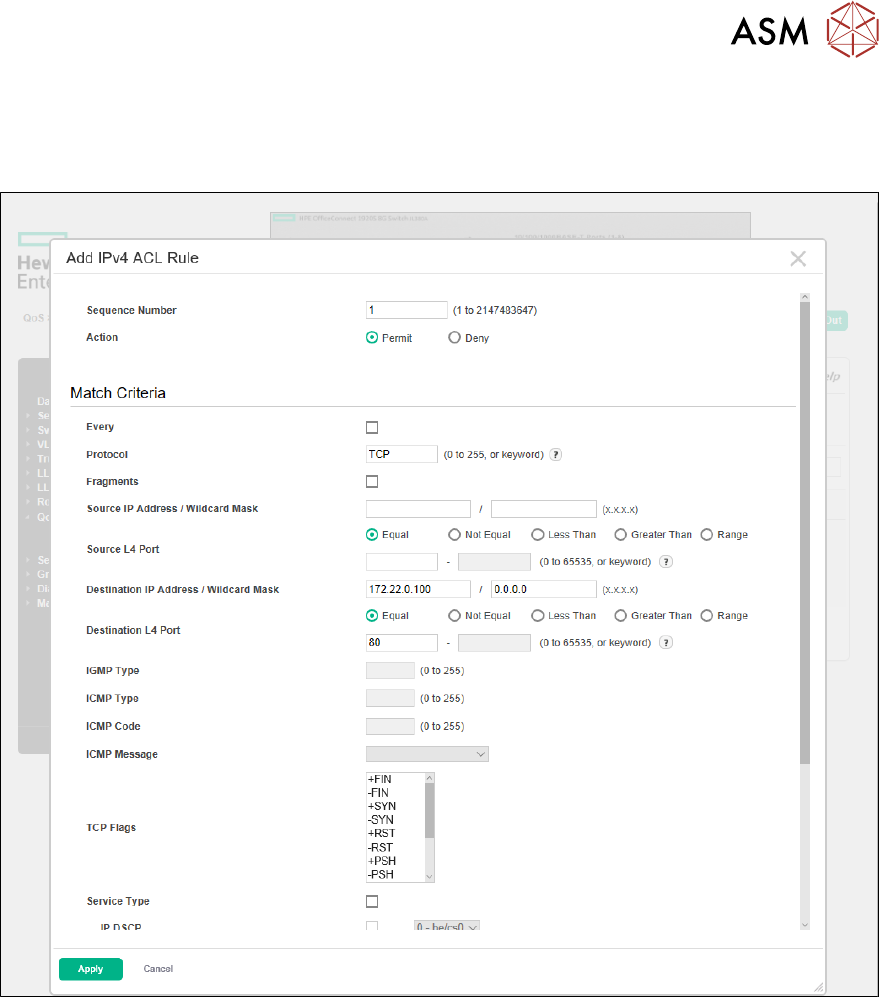

► Go to QoS -> Access Control Lists -> Configuration and add a rule that permits the access
via browser, if needed (Sequence Number = e.g. 1, Action = Permit, Protocol = TCP, Des-
tination IP Address / Wildcard Mask = 172.22.0.100 / 0.0.0.0, Destination L4 Port = Equal
80).
3 Configuration
3.1 Connection configuration in the LAN
24 Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020

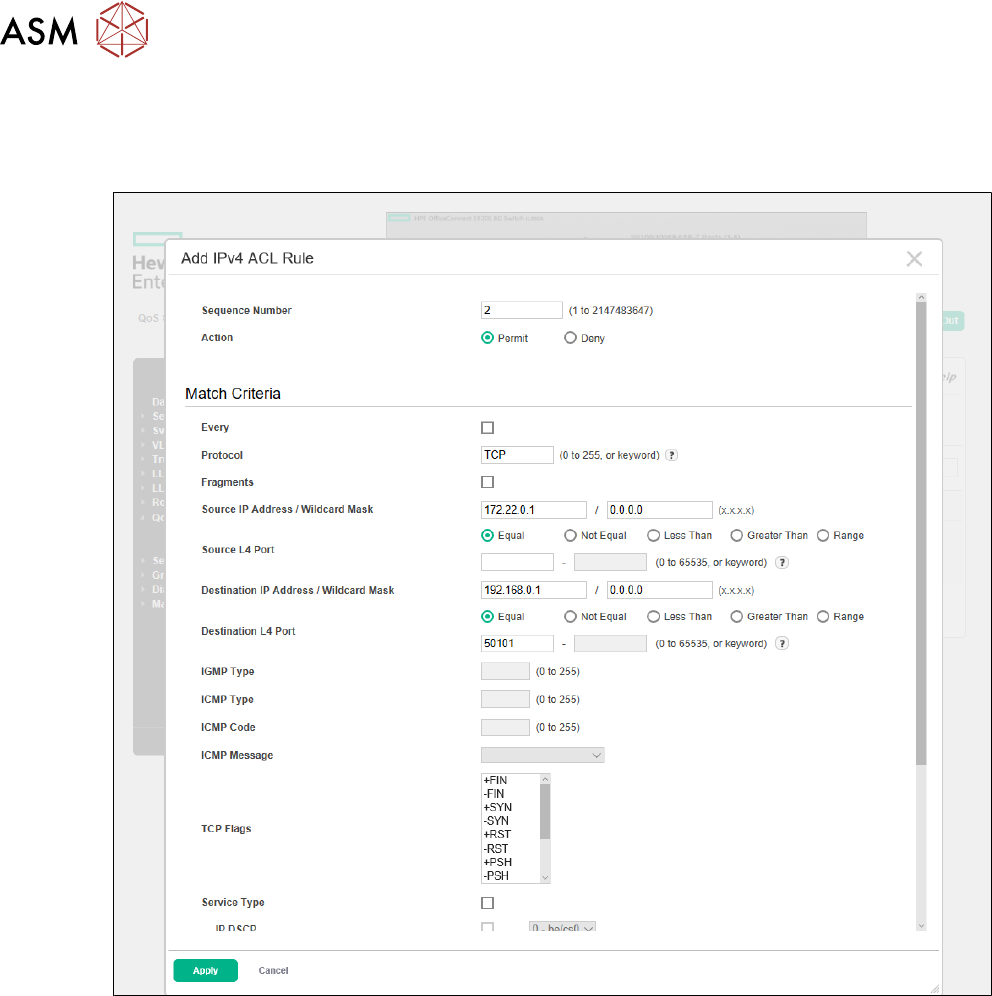

► Go to QoS -> Access Control Lists -> Configuration and add a rule for the Hermes connec-
tion (Sequence Number = e.g. 2, Action = Permit, Protocol = TCP, Source IP Address /
Wildcard Mask = 172.22.0.1 / 0.0.0.0,, Destination IP Address / Wildcard Mask =
192.168.0.1 / 0.0.0.0, Destination L4 Port = Equal 50101).
3 Configuration
3.1 Connection configuration in the LAN
Administrator Guide / Administrator Handbuch / 管理员指南 IPC-HERMES-9852 - V1.2 05/2020 25

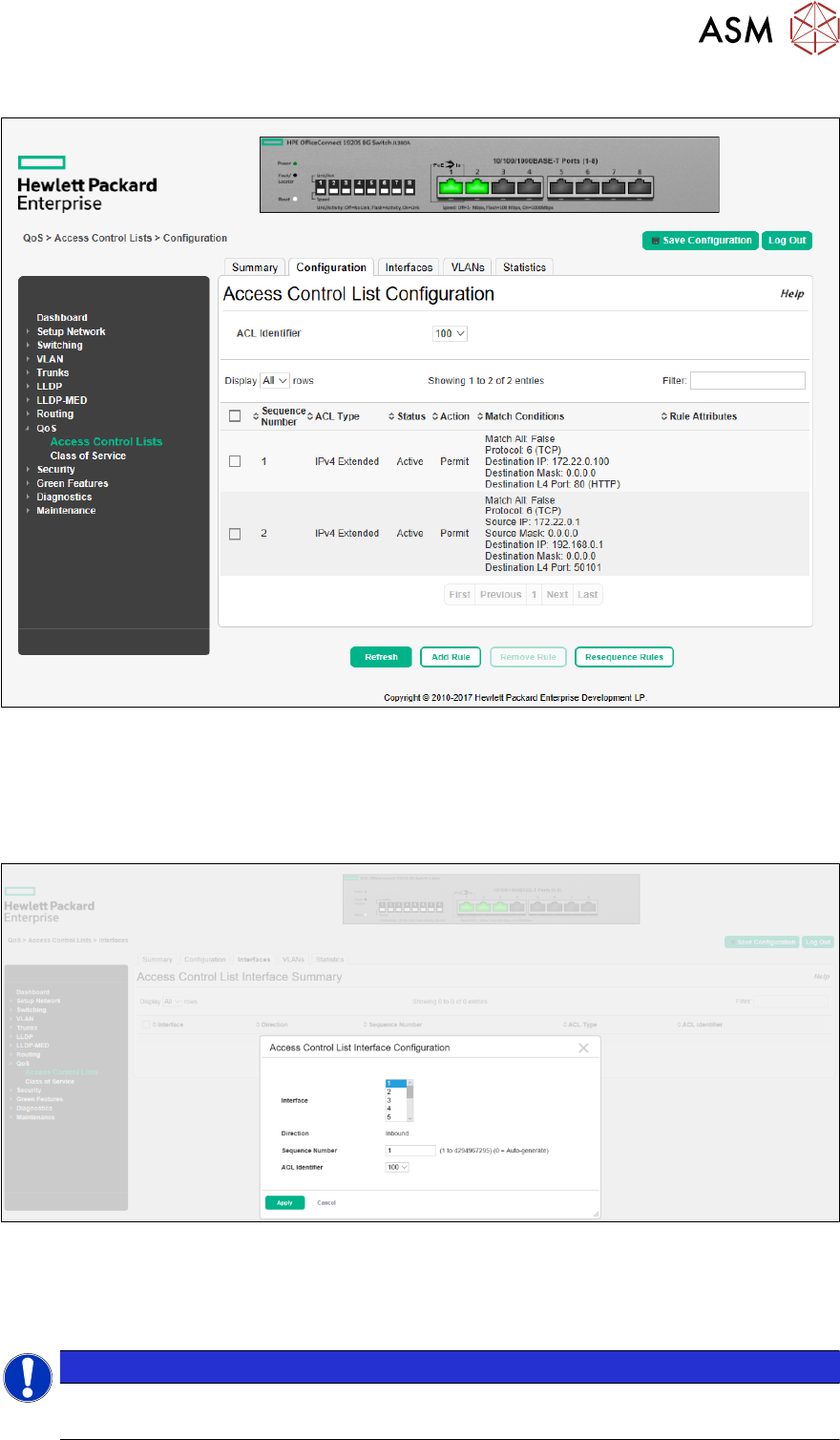

► The result under QoS -> Access Control Lists -> Summary looks like:
► Go to QoS -> Access Control Lists -> Interfaces and add the access control list (ACL) to
the respective interface, e.g. Interface = 2, Sequence Number = e.g. 1 and ACL Identifier =
100.
ð Before activating the ACL, make sure that you do not apply it to all interfaces and that
there is another interface which can be used for changing the configuration if something
has gone wrong.
► Test the applied configuration.
► If everything is working properly, you can save the configuration.
Creating a connection between placement machine and conveyor works in an analogous way as
the configuration of the connection between stacker and printer.
NOTICE
Router in the network infrastructure
Ensure that the router is integrated correctly into your network infrastructure!
