L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
NSTALLING THE LINE COMPUTER SOFTWARE INUX U
I
LRL L (S SE 9.0)

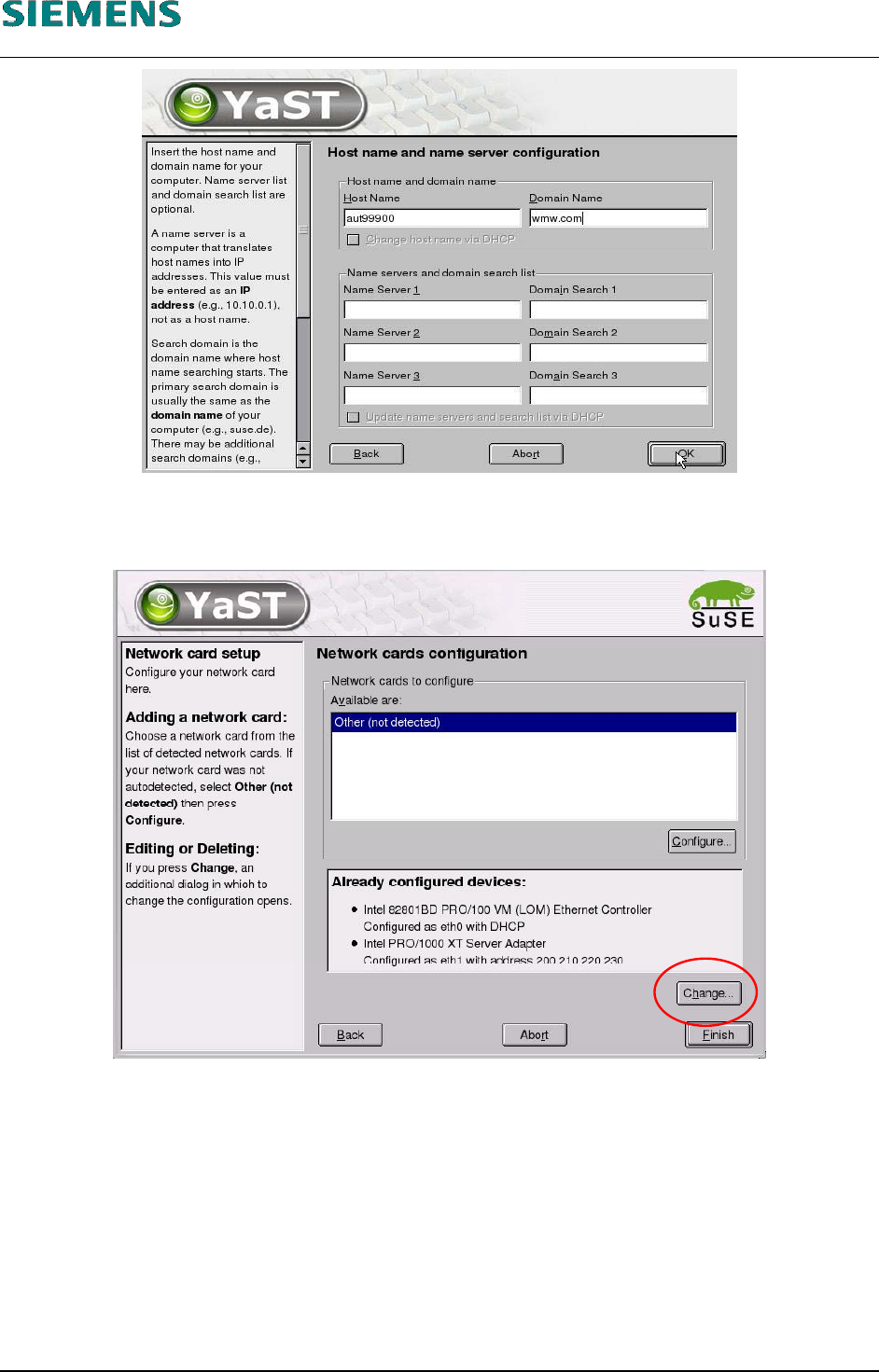

41. After you have entered the host name and domain name, click «OK» to confirm your entries.
42. Close the «Network address setup» dialog box by clicking the «Next» button.
43. To change the settings for the first adapter (customer network adapter), select the «Change»
button.
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 23 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
NSTALLING THE LINE COMPUTER SOFTWARE INUX U
I
LRL L (S SE 9.0)

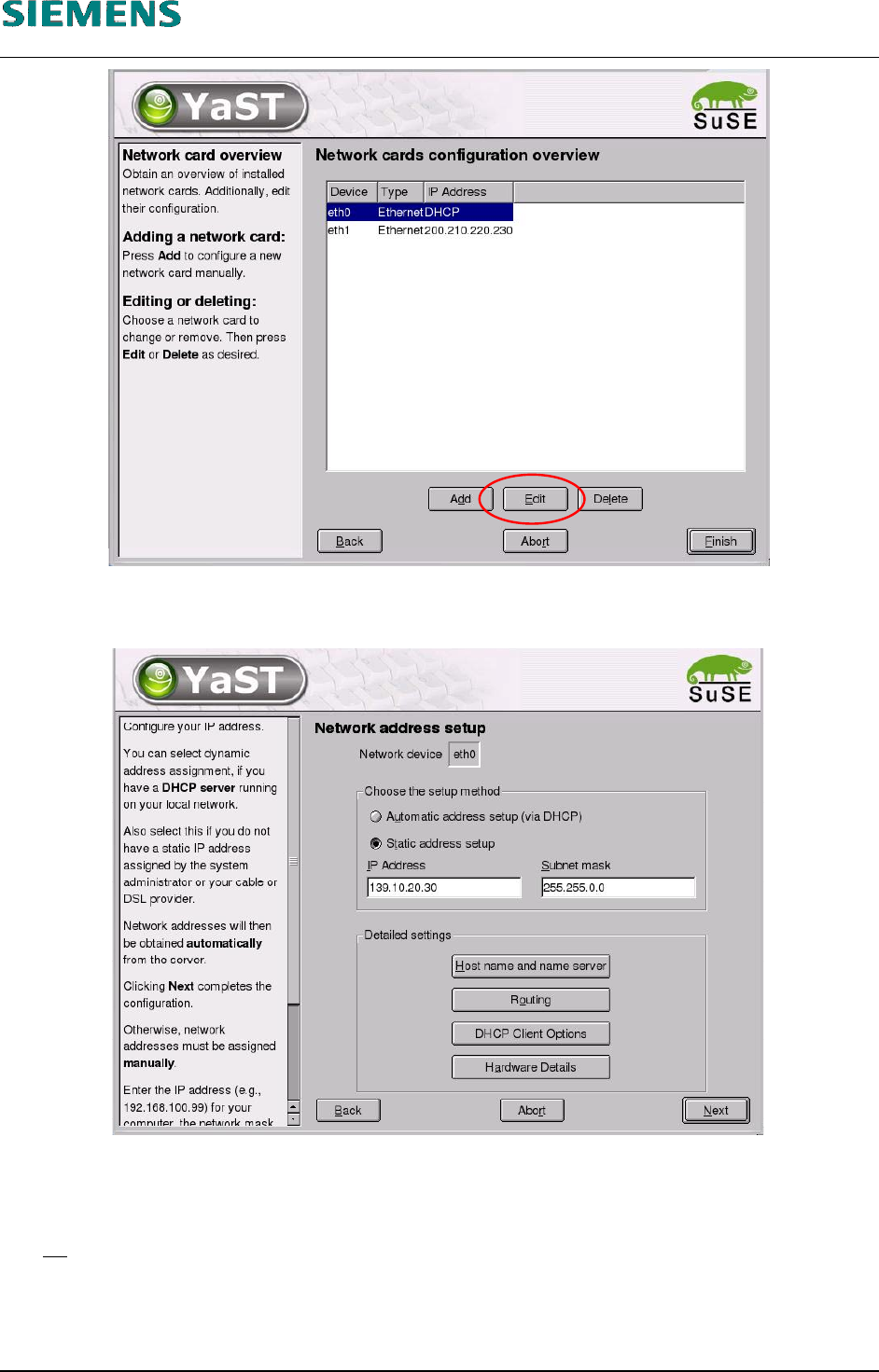

Figure 4-2
44. Click the «Edit» button.
45. Select the option «Static address setup».
46. You only need to enter the TCP/IP address and the subnet mask.
47. No
other host name is needed.
48. Close the dialog box by clicking the «Next» button.
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 24 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
NSTALLING THE LINE COMPUTER SOFTWARE INUX U
I
LRL L (S SE 9.0)
49. Close the «Network cards configuration overview» dialog box by clicking «Finish» (see Figure
4-2).
50. Close the «Network configuration» dialog box by clicking «Next» (see Figure 4-1).
51. The network configuration is now saved.
4.2.3.6 PLR-Password / Configure Graphic Adapter
52. Type in the password for user «plr» and confirm it again.
HINT
If the password you had chosen, is to simple, you get this warning:
You have used the username as part of the password.
This is not good security practice. Are you sure?
Confirm the given password with «Yes»; but select «No» if you want to enter
another password.
53. Close the dialog box with «Next».
