L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
4.3.3 Configuration as a network printer
You can only configure the printer as a network printer under the «auteq Linux 9.0» operating sys-
tem.
4.3.3.1 Requirements
Installed software «SIPLACE auteq-LINUX based on SuSE 9.0».
PC with a configured network card
An appropriate network address has to be set on the printer (see «4.3.4 Configuring the net-
work address of the printer»).
4.3.3.2 Installation procedure
1. Log into the line computer under GNOME as the user «plr».
2. Connect the printer to the network (e.g. customer network).
3. Switch on the printer.
4. Open a terminal window by selecting the menu «Optinons» / «Operating system level».
5. Enter the commands

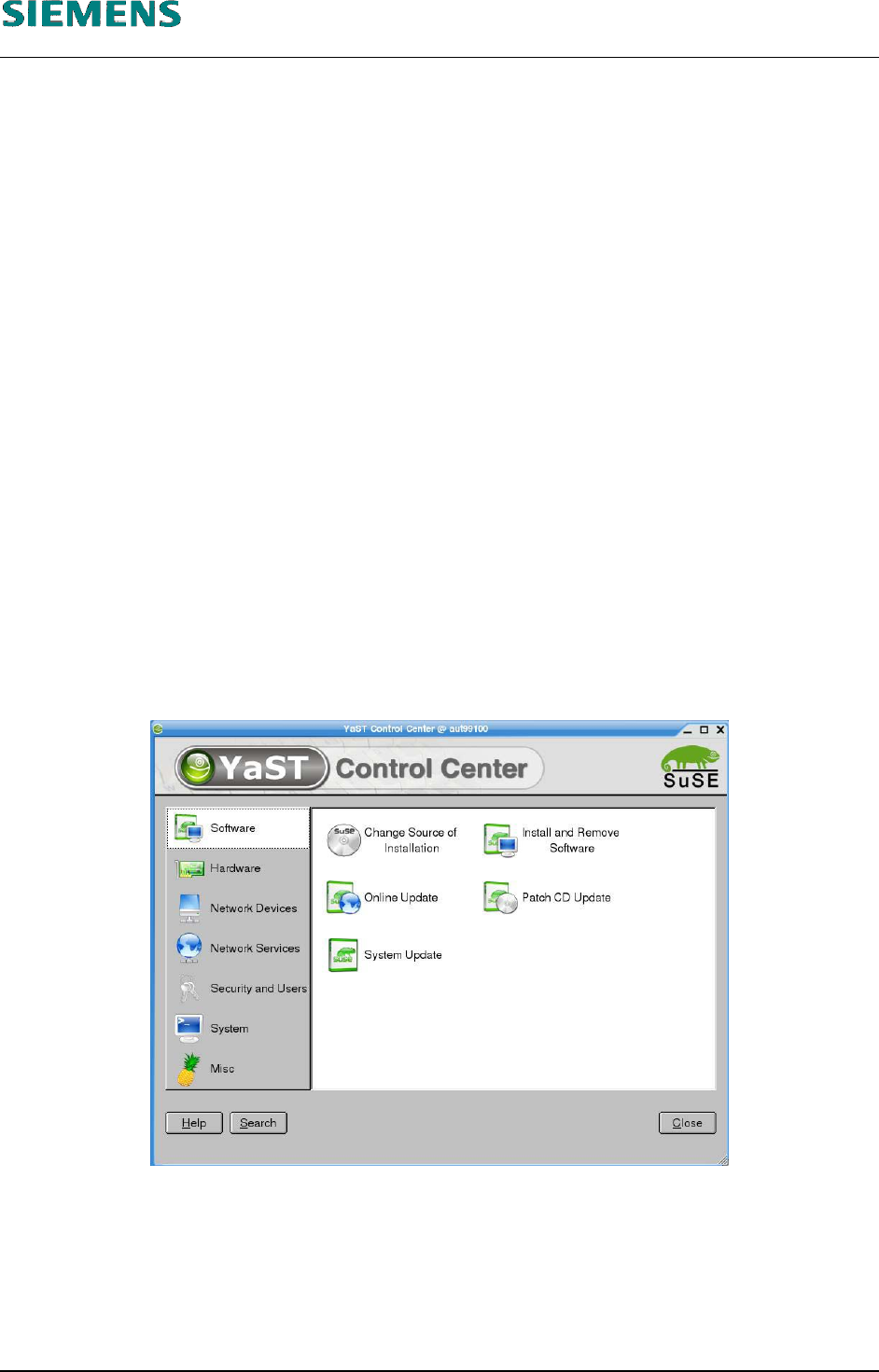

su -c yast2
(and enter the «root» password) to start the «YaST Control Center» configuration tool.
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 60 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
6. On the left, select the «Hardware» menu and then select the «Printer» function on the right.
7. Specify the printer type by clicking the «Configure» button.
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 61 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
8. Select the entry «Print Directly to a Network Printer».
9. Confirm your entry with «Next».
10. Select the default setting «Direct TCP Port Printing» as the subsidiary printer type.
11. Confirm your entry with «Next».
