L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
NSTALLING THE LINE COMPUTER SOFTWARE INUX U
I
LRL L (S SE 9.0)
9. The system is restarted and must be booted from CD.
10. At the prompt, select the «Installation» menu item
11. In the next dialog box, the installer program (YaST2) asks for the installation mode.
12. Select the option «Update an existing system» (this ensures that existing customer data and
settings remain unchanged).
NOTE
«New installation» can also be selected at this point. If you do so, the
computer will be completely re-installed. Any existing data will be lost!
Continue with chapter 4.2.3 Installation Manual «new installation», step 14
above on page 15).
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 34 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
NSTALLING THE LINE COMPUTER SOFTWARE INUX U
I
LRL L (S SE 9.0)
13. The installer program then assembles all the actions that need to be performed. When updating,
the following will appear:
14. Confirm your selection by clicking «Accept».
15. Before finally starting the update, another confirmation query appears. This must be confirmed
using the «Yes, Update» button.
16. The new programs are now installed. Depending on the hardware being used, this process will
take between 20 and 50 minutes (no further information will need to be entered by the user).
17. After completely reading in the new operating system, the computer will be restarted. The
installation CD must remain in the drive for this process!
18. At the prompt, select «Boot from Harddisk».
19. Now an automatic configuration of the system is carried out. When updating, no user input will
be required for this process.
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 35 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
NSTALLING THE LINE COMPUTER SOFTWARE INUX U
I
LRL L (S SE 9.0)

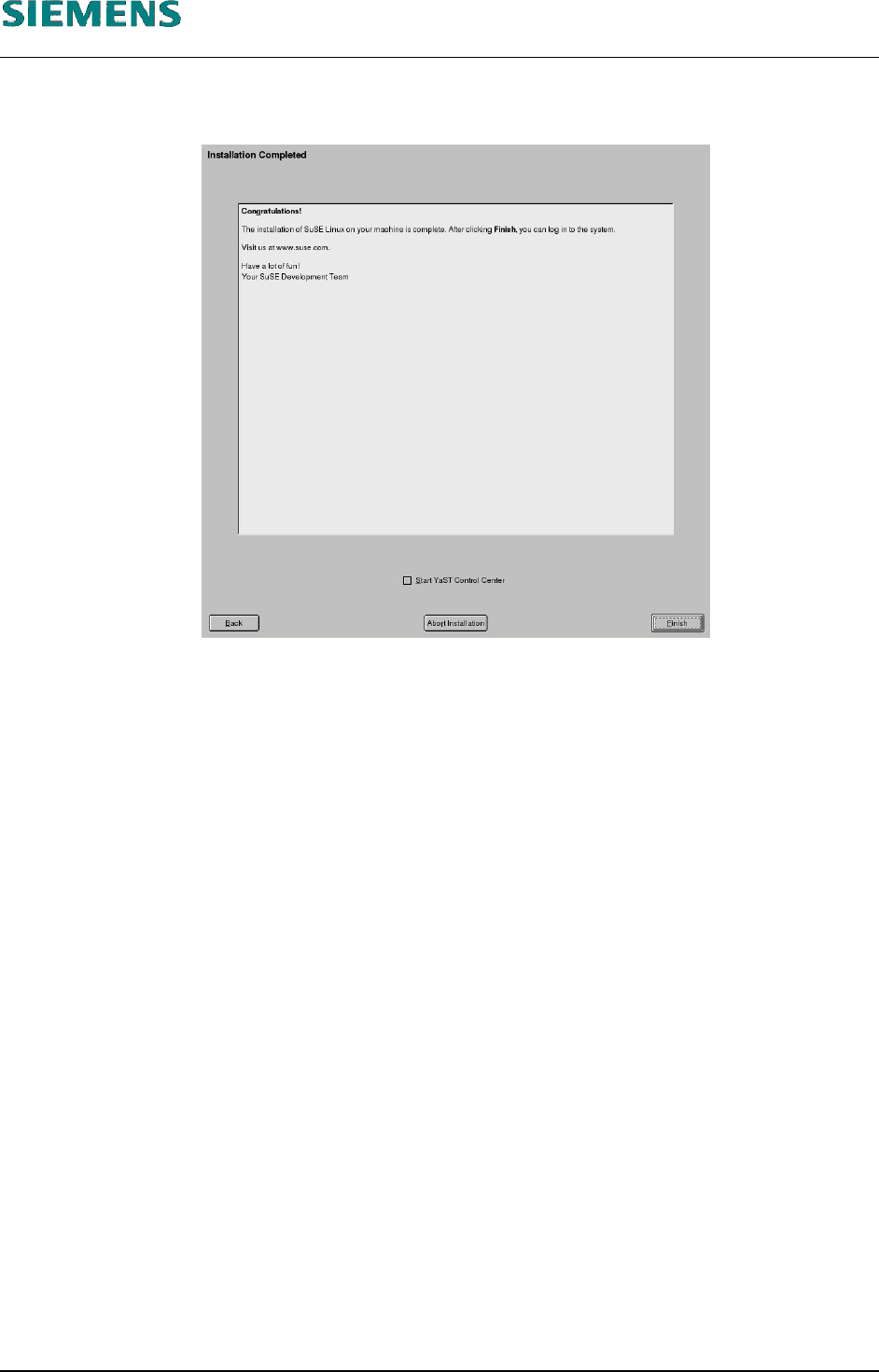

20. Automatic configuration terminates with the «Installation Completed» message. This message
can then be confirmed with the «Finish» button.
21. The system is restarted and is now ready for you to carry out the installation of the line computer
software.
22. When updating, the following procedures should be carried out:
- Log in as user «root».
- When the following message appears
Please insert the Linecontrol CD and press any key
insert the CD (if you have not already done so) and press any key to continue.
23. This will now start the graphical installation routine for the line computer software.
(See chapter 4.2.5 Installation entries of LCL software installation, step 2 below)
24. After installation of the line computer software you must configure the CD writer if needed.
(See chapter 4.2.6 Configuration CD writer on page 40)
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 36 / 75
