L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
10. Select the USB port the printer is connected to.
11. You can (should) click the «Test» button to test the connection to the printer.
12. Confirm the message by clicking «OK».
13. If the connection test fails, confirm the message with «OK», return to point 10 above and select
a different port.
If the printer is not detected on any port, cancel configuration (using the «Abort» button in the
dialog box shown in point 10 above) and check the BIOS settings again (See «4.3.2.1.1
Requirements:» above).
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 48 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
14. If the connection test was successful, confirm the message with «OK».
15. Confirm the dialog box shown in point 10 above by clicking the «Next» button.

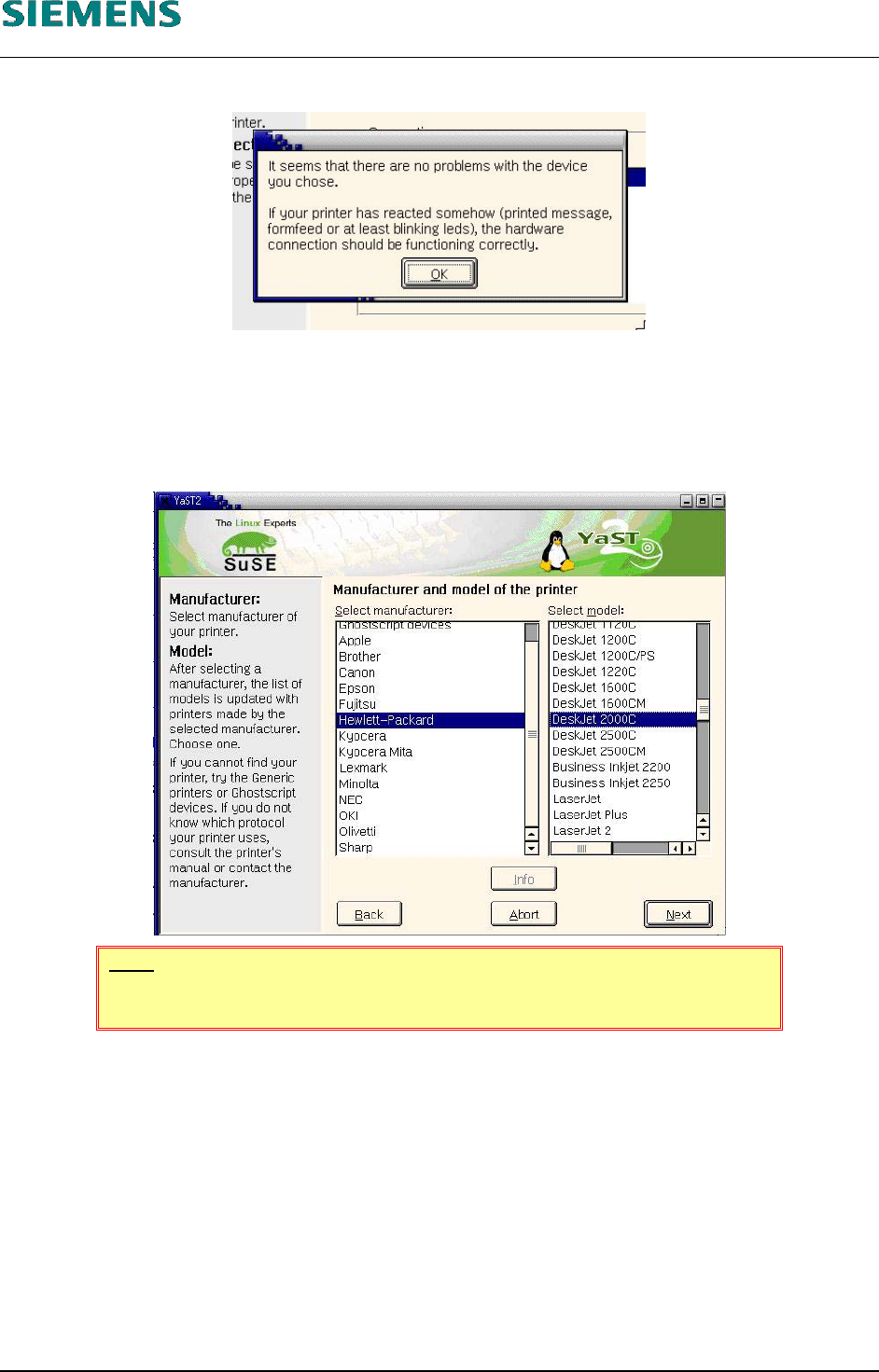

16. Select the printer manufacturer and model:
Hewlett-Packard
DeskJet 2000C
NOTE
The model specified above must be selected!
17. Confirm the dialog box by clicking «Next».
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 49 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
18. You can specify a name for the printer: The suggested name «lp» can be accepted.
19. Confirm« the dialog box by clicking «Next».
20. The next dialog box allows you to make further driver settings. You can accept the preset values
with «Next».
21. The next dialog box allows you to make further «hardware-independent settings». You can ac-
cept the default settings with «Next».
22. The final dialog box shows all the printers now configured.
