L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )

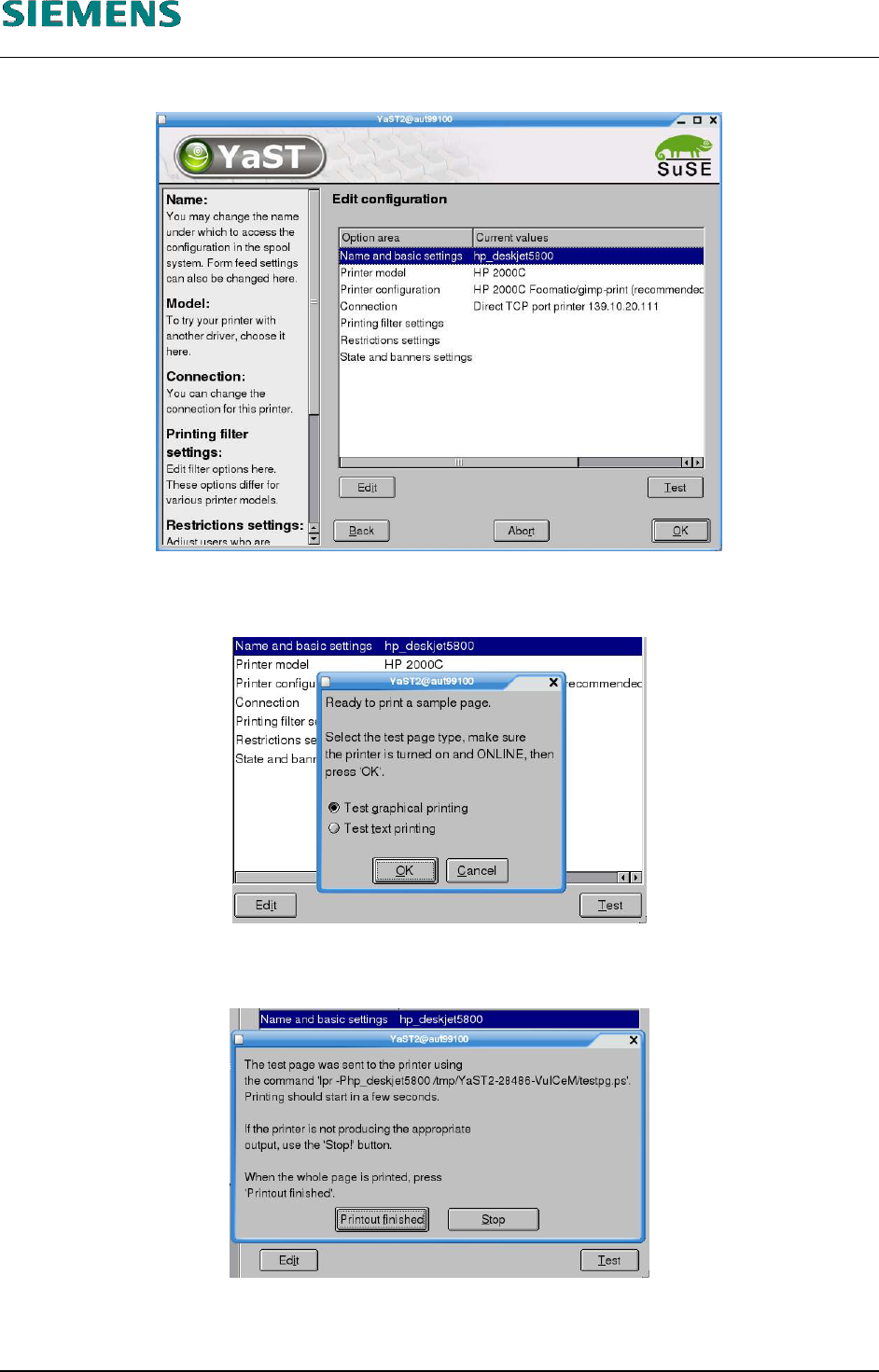

16. The printer settings are now displayed.
17. You can print a test page to test correct operation of the printer by clicking the «Test» button
(you can also skip this step and continue at point 19 below).
18. Once the test page has been printed, confirm this by clicking «Printout finished». If the page is
not printed correctly, you can stop the print operation with the «Stop» button.
19. Close the dialog box shown in point 16 above by clicking «OK».
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 64 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
20. The dialog box shown in point 7 above then appears, with the exception that the printer you
have just installed now appears at the bottom.
NOTE
If several printers are installed, you must select the default printer. Click the
«Change» button, select the line containing the required printer and set it as
the default printer by clicking «Set as default».
The default printer is indicated by an arrow in the left column.
21. Click the «Finish» button to save the settings.
22. Close the «YaST Control Center» configuration tool by clicking «Close».
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 65 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
23. You can now use the configured printer. It is not necessary to restart the line computer.
4.3.4 Configuring the network address of the printer
4.3.4.1 General
The «HP Deskjet 5850» printer is supplied with a factory-set address. This is rarely within the ad-
dress range used by the customer.
The easiest way of identifying the address currently set on the printer is to print out the printer con-
figuration.
The address must be changed to allow the line computer to communicate with the printer. To do this,
it is necessary to temporarily change the address of a computer (e.g. a line computer) to the address
range set on the printer in order to allow this computer to access the printer configuration.
The printer is configured using a graphical configuration program which allows the address to be
changed to the new value, for instance.
WARNING
If a productive line computer is used to configure the printer, it is possible
that the temporary change of the line computer's network address causes
communication with the stations to be interrupted.
You should therefore remember to first set the stations to «Stand alone»
mode to avoid any interruptions to production.
4.3.4.2 Requirements
The printer must be connected to the line computer network over a network cable.
A network-capable computer with a working operating system (the following instructions refer
to SuSE Linux 9.0).
