L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )

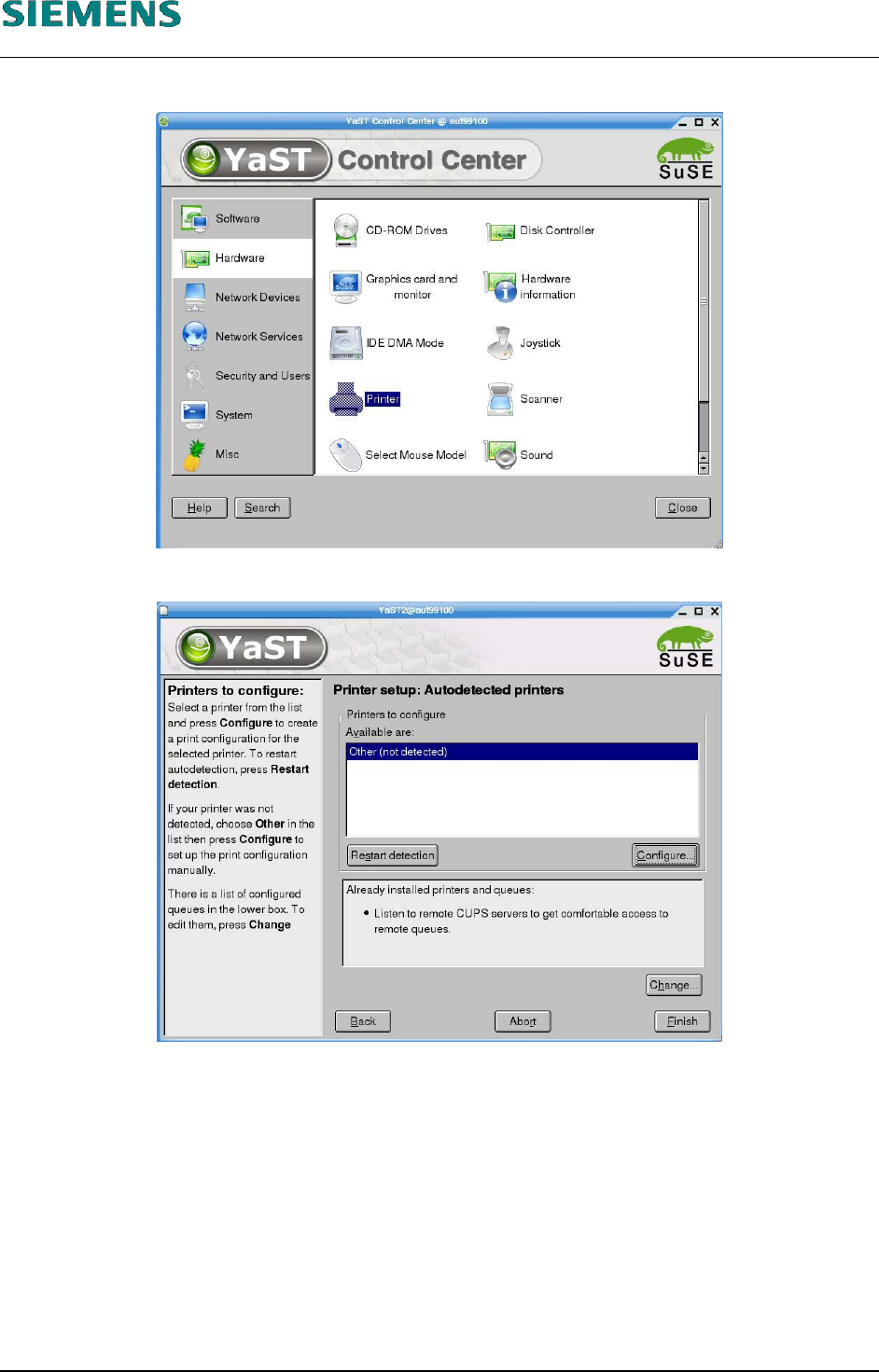

6. On the left, select the «Hardware» menu and then select the «Printer» function on the right.
7. Specify the printer type by clicking the «Configure» button.
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 61 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )

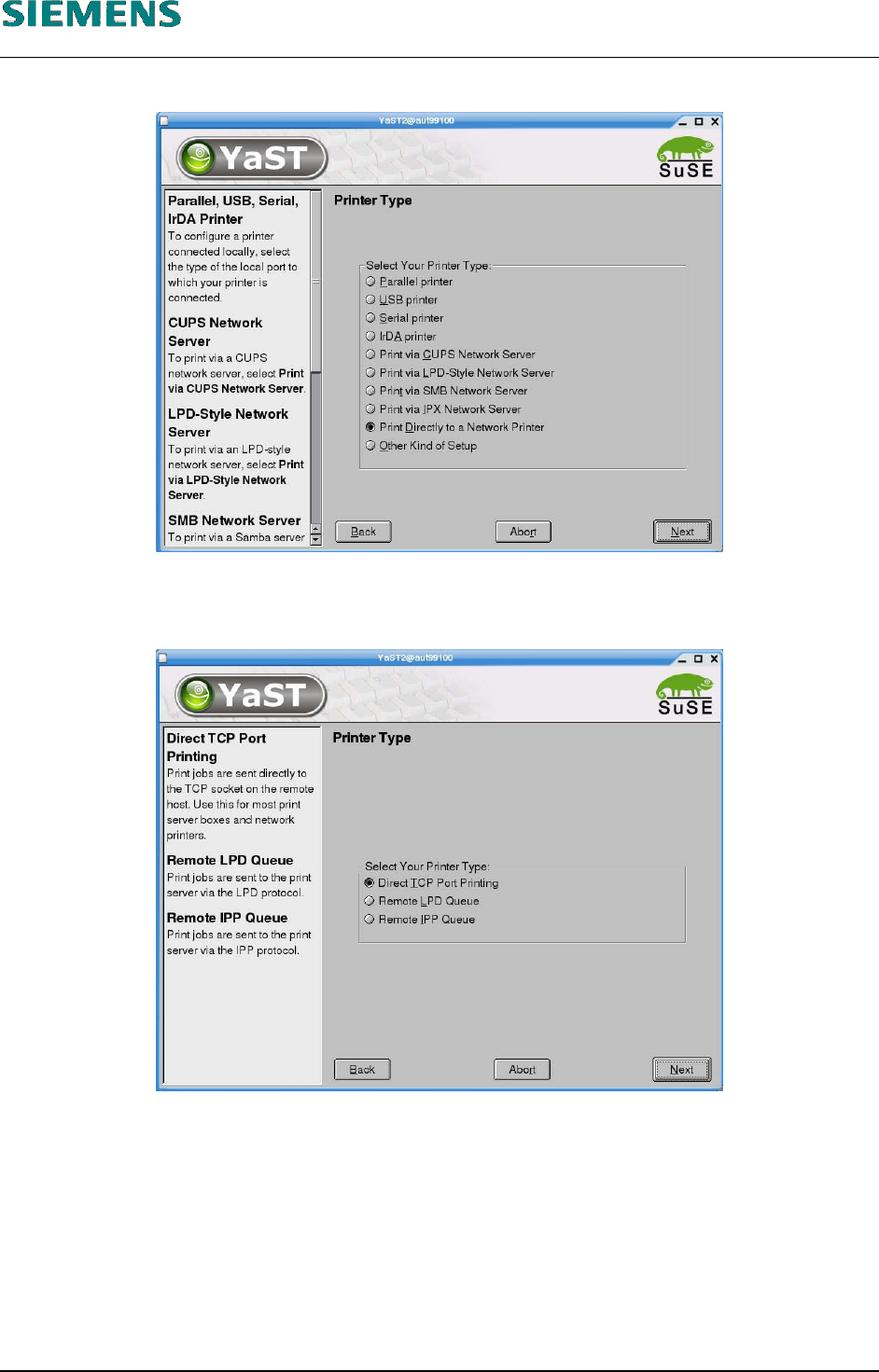

8. Select the entry «Print Directly to a Network Printer».
9. Confirm your entry with «Next».
10. Select the default setting «Direct TCP Port Printing» as the subsidiary printer type.
11. Confirm your entry with «Next».
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 62 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )

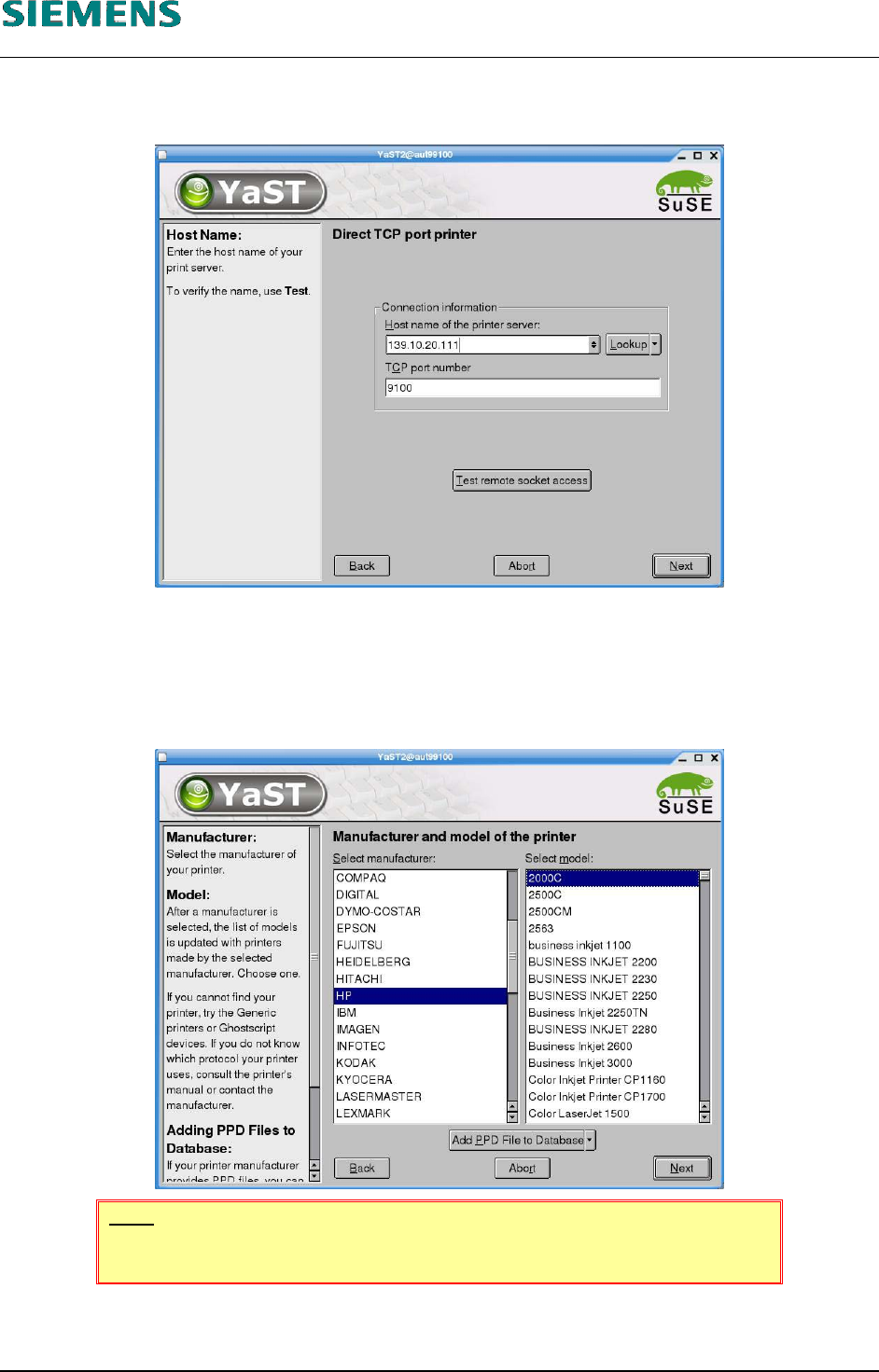

12. Now enter the network address of the printer. Enter the address which was set on the printer
when you configured the network printer (see below «4.3.4.3 Configuration procedure»).
13. Confirm your entries by clicking «Next».
14. Select the printer manufacturer and model:
HP (Hewlett-Packard)
(DeskJet) 2000C
NOTE
The model specified above must be selected!
15. Confirm your choice with «Next».
