L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
15. If the connection test was successful, confirm the message with «OK».
16. Confirm the dialog box shown in point 10 above by clicking the «Next» button.
17. You can either freely assign a name, description and location to a printer or accept the default
settings.
18. Confirm your entries by clicking «Next».
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 56 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
19. Select the printer manufacturer and model:
HP (Hewlett-Packard)
(DeskJet) 2000C
NOTE
The model specified above must be selected!
20. Confirm your entries by clicking «Next».
21. The printer settings are now displayed.
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 57 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )

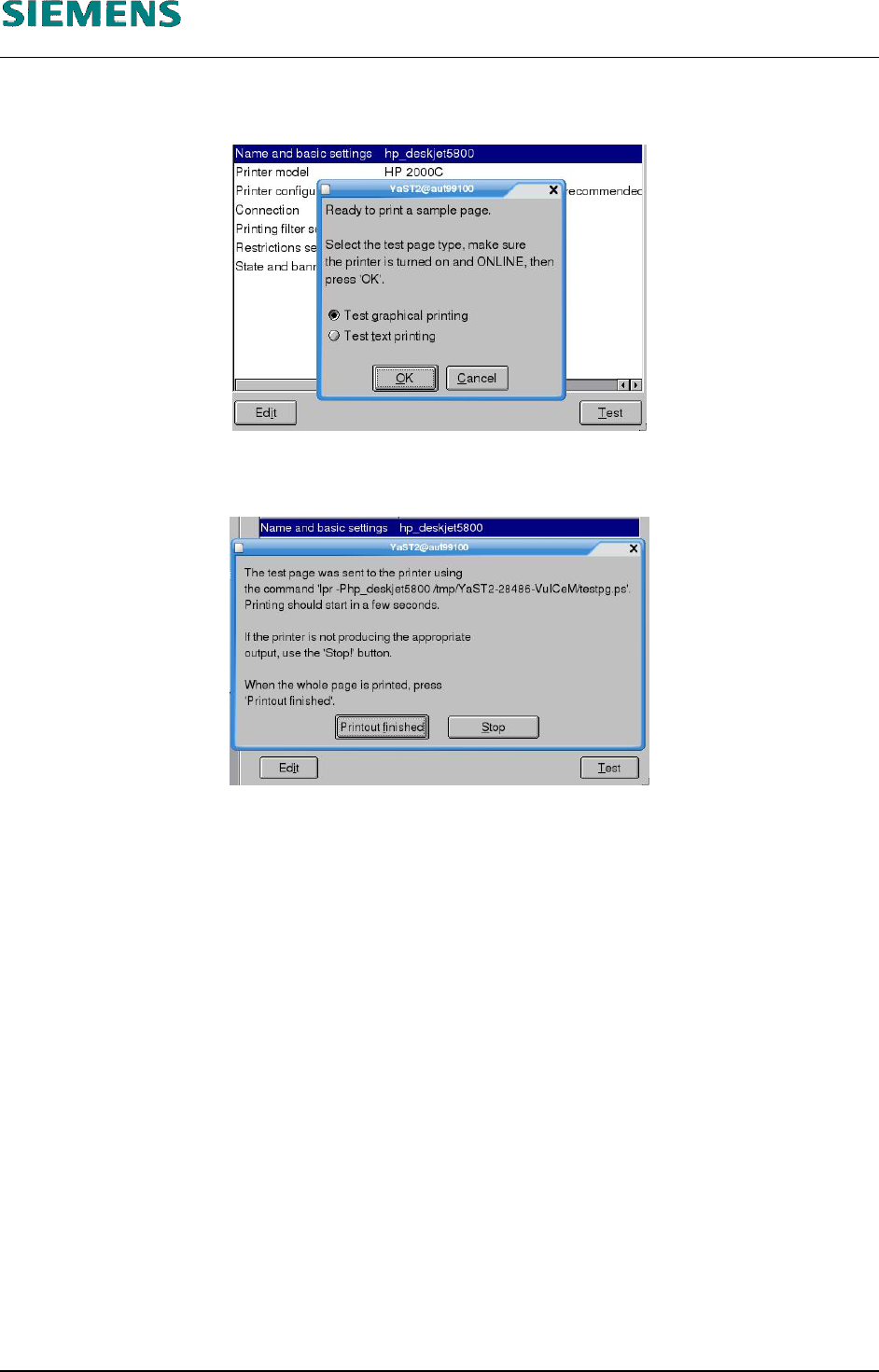

22. You can print a test page to test correct operation of the printer by clicking the «Test» button
(you can also skip this step and continue at point 24 below).
23. Once the test page has been printed, confirm this by clicking «Printout finished». If the page is
not printed correctly, you can stop the print operation with the «Stop» button.
24. Close the dialog box shown in point 21 above by clicking «OK».
25. The dialog box shown in point 7 above then appears, with the exception that the printer you
have just installed now appears at the bottom.
