L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )

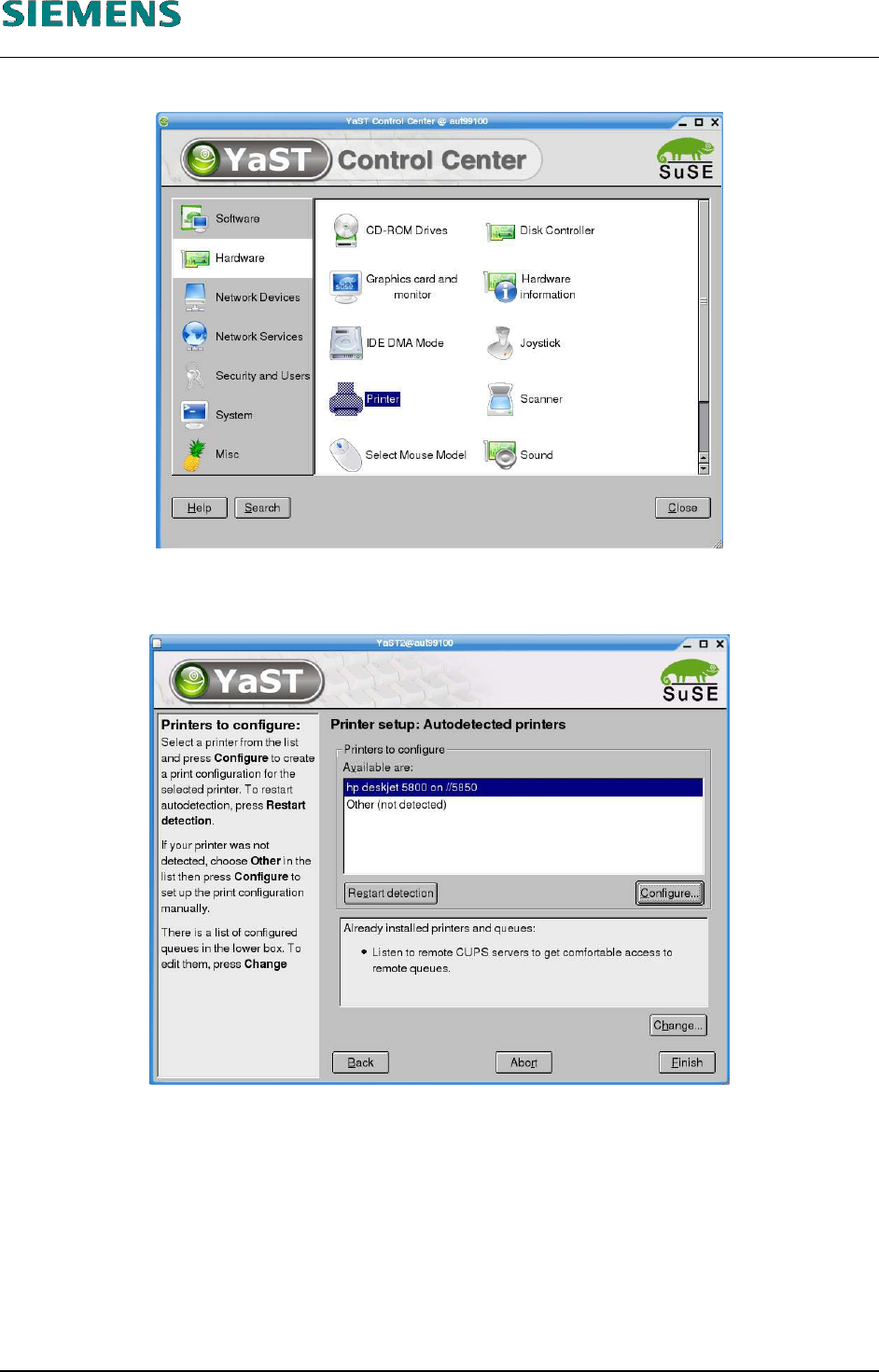

6. On the left, select the «Hardware» menu and then select the «Printer» function on the right.
7. Under normal circumstances, the printer type is detected automatically. You can then change
the settings by clicking the «Configure» button and continue at point 17 below.
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 53 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )

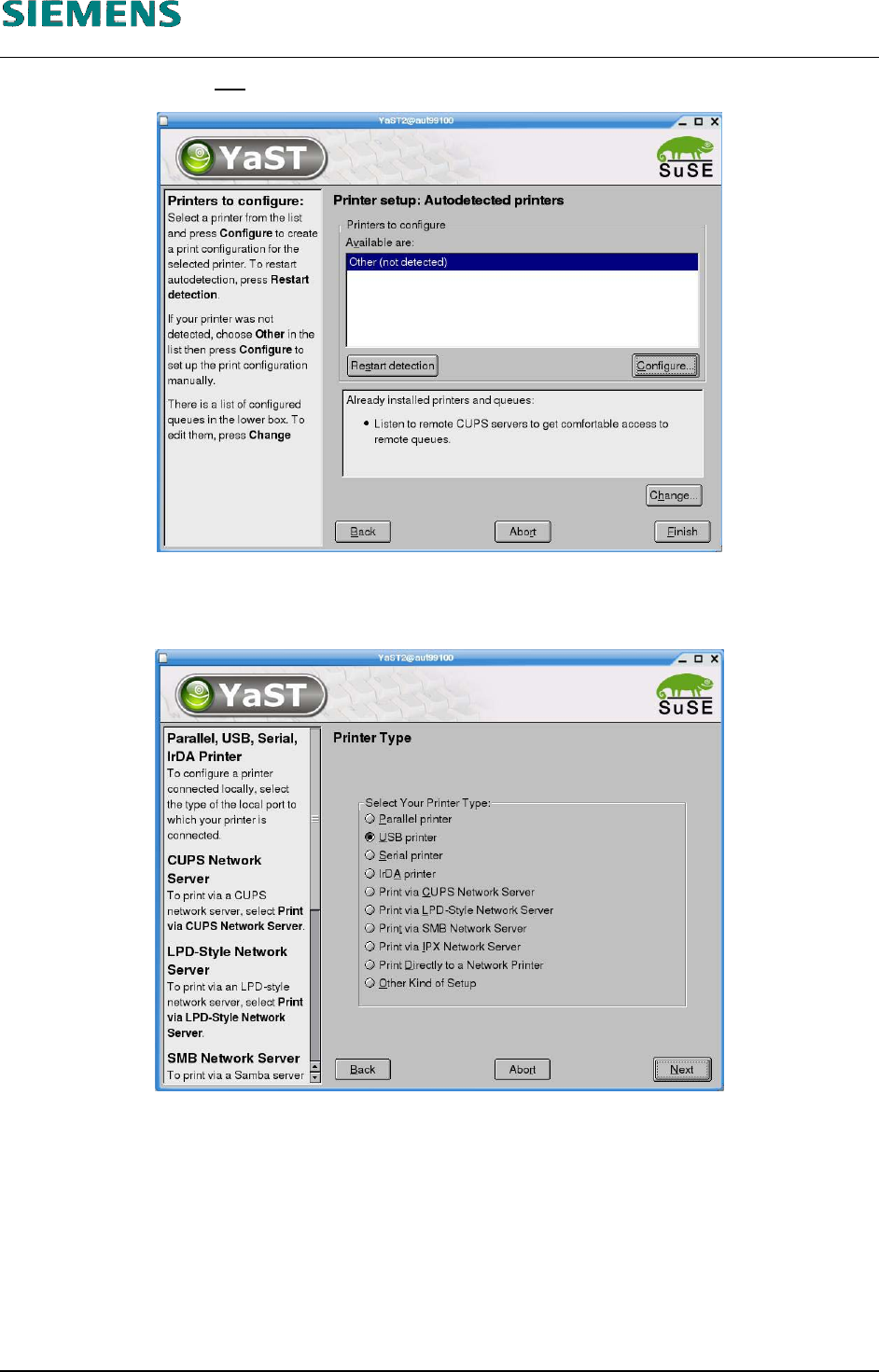

8. If the printer type is not detected automatically:
you can specify the printer type by clicking the «Configure» button.
9. Select the entry «USB printer».
10. Confirm your entry with «Next».
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 54 / 75
L&A INSTALLATION MANUAL LINE COMPUTER LCL 503.04
ONFIGURATION OF PRINTER AND ETWORK
C
HP 5850 (USB N )
11. Select the USB port the printer is connected to.
12. You can (should) click the «Test printer connection» button to test the connection to the
printer.
13. Confirm the message by clicking «OK».
14. If the connection test fails, confirm the message with «OK», return to point 11 above and select
a different port.
If the printer is not detected on any port, cancel configuration (using the «Abort» button in the
dialog box shown in point 10 above) and check the BIOS settings again (See «4.3.2.2.1
Requirements» above).
L&A EA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 03.03.2005
RUPERT-MAYER-STR. 44
D-81359 M
UNICH SWIA_503.04_EN.DOC PAGE 55 / 75
