25 9.14 How to Create a Circ le (3 -Poin t Method) Refer ence Sect ion 9.2 From the Insert sc reen, select option 0. Select opti on 1. Change the move speed with the key . When circle start location is reached press Pres…

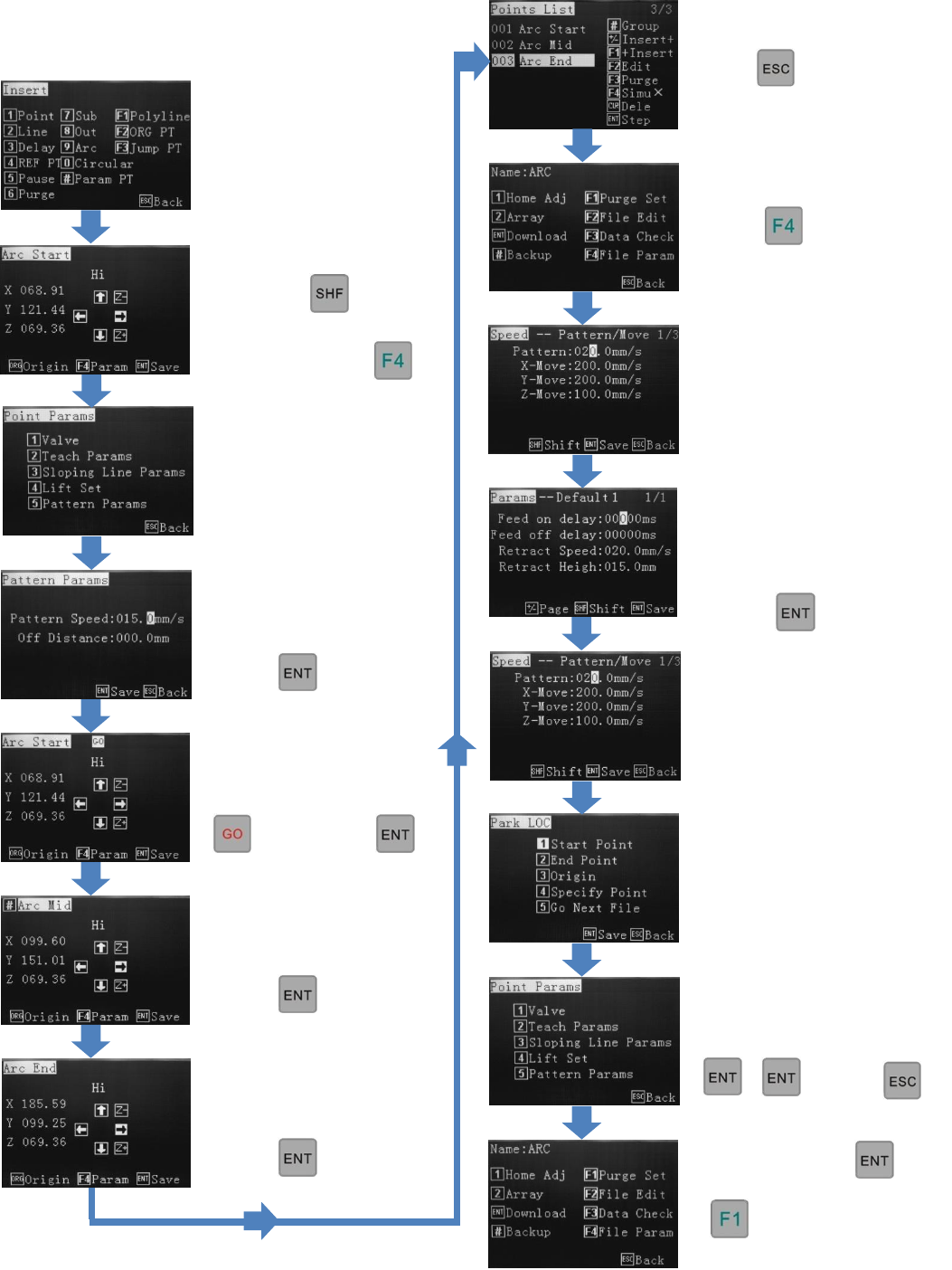

9.13 How to Create an Arc

Reference Section 9.2 and

9.24. From the Insert screen,

select option 9.

Change the move speed

with the key.

When arc start location

is reached press

Press 5.

Use alphanumeric keys to

change dispense speed

(pattern speed).

Press twice.

If “GO” is flashing at the

top of the screen press

then press

Use jog keys to move to

Arc mid-point location.

Press

Use jog keys to move to

Arc end-point location.

Press

Press twice.

Press

Press 4

To save, press

Starts the dispensing

cycle

Press 2

Select where the valve

should go to after dispensing.

Use the alphanumeric keys to

change the retract speed,

retract height and feed

on/feed off delay.

Press

(Optional) Use the

alphanumeric keys to select a

park location.

then

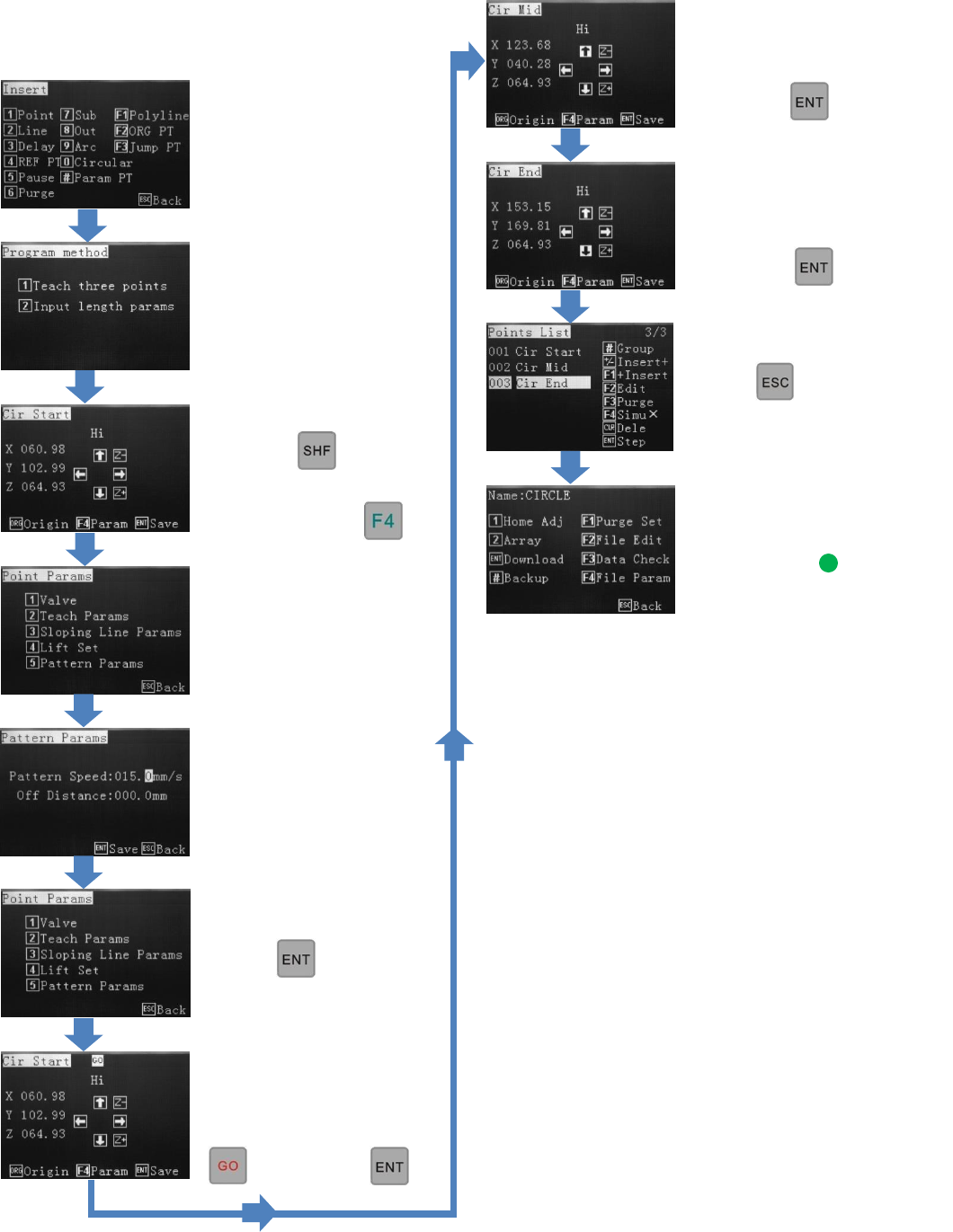

9.14 How to Create a Circle (3-Point Method)

Reference Section 9.2

From the Insert screen,

select option 0.

Select option 1.

Change the move speed

with the key.

When circle start location

is reached press

Press 5.

Use alphanumeric keys to

change dispense speed.

(Pattern Speed).

Press twice.

If “GO” is flashing at the

top of the screen press

then press

Use jog keys to move to

circle mid point location.

Press

Use jog keys to move to

circle mid point location.

Press

Press twice.

Follow instructions, on

next page, by

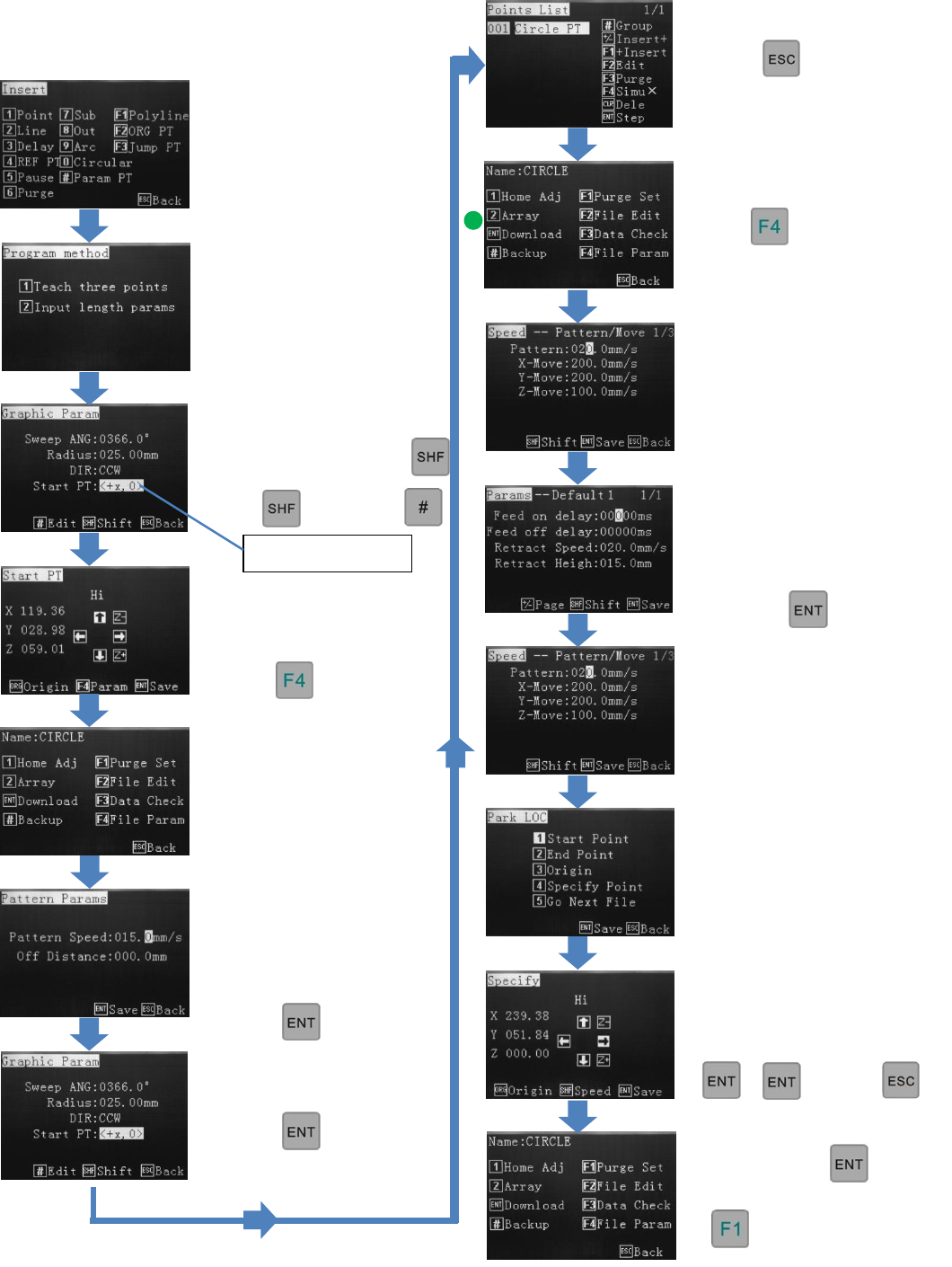

9.15 How to Create a Circle (Inputting Dimensions)

Reference Section 9.2

From the Insert screen,

Select option 0.

Select option 2.

Use arrows to input data

Choose direction with

Choose start Point with

With then press

Use jog keys to move to

circle start point location.

Press

Press 5.

Use alphanumeric keys to

change dispense speed.

(Pattern Speed).

Press

To save, press

Starts the

dispensing

cycle

Press 4

Select where the valve should

go to after dispensing.

Press 2

Press twice

Press

(Optional) Use the

alphanumeric keys to select

a park location.

then

Refer to 9.23

Use the alphanumeric keys to

change the retract speed,

retract height and feed

on/feed off delay.

Press
