9.19.4 Creating Array Pattern Inside the Points List – Single Point Element

Reference Section 9.2

From the Insert screen,

select option 1.

Change the move speed

with the key.

Press at the dot

location

Press

START

Set Feed on delay

(dispensing time)

Set retract height and

speed.

Press

6 x 6 array to be

created from a

single dot

element,

showing start

position and

“Y” travel

direction.

Press 2 – Teach Params

Ensure F2 is highlighted.

Press

Continue editing or…

Press twice.

Press

Continue editing or…

Press to download.

Press to start.

Press

Input number of rows and

columns. Order cannot be

changed. Set “Mode” –

dispensing direction.

Press either or

Input row and column

distances.

Press twice.

9.19.5 Creating Array Pattern Inside the Points List – Pattern Element

This is the 2 x 2 array

to be created from the

pattern element

showing start position

and “X” travel

direction.

This is the pattern

element to be created.

START

Reference Section 9.2

From the Insert screen,

select option 1.

Create the pattern

element.

All co-ordinates are listed

in the Points List.

Press

Use up/down arrow keys

to select all co-ordinates.

When all co-ordinates are

selected press

Press

Input number of rows and

columns. Order cannot be

changed. Set “Mode” –

dispensing direction.

Press either or

Input row and column

distances.

Press twice.

Press

Continue editing or…

Press twice.

Press to start.

Continue editing or…

Press to download.

9.19.6 Creating Array Pattern Inside the Points List – 2 Point or 2 Pattern Element Method

Advantage: Full Mode/Order directional

movement as per section 9.19.1 – not suitable for

an array with an odd number of elements,

example 5 x 5 (25 positions), 7 x 7 (49 positions).

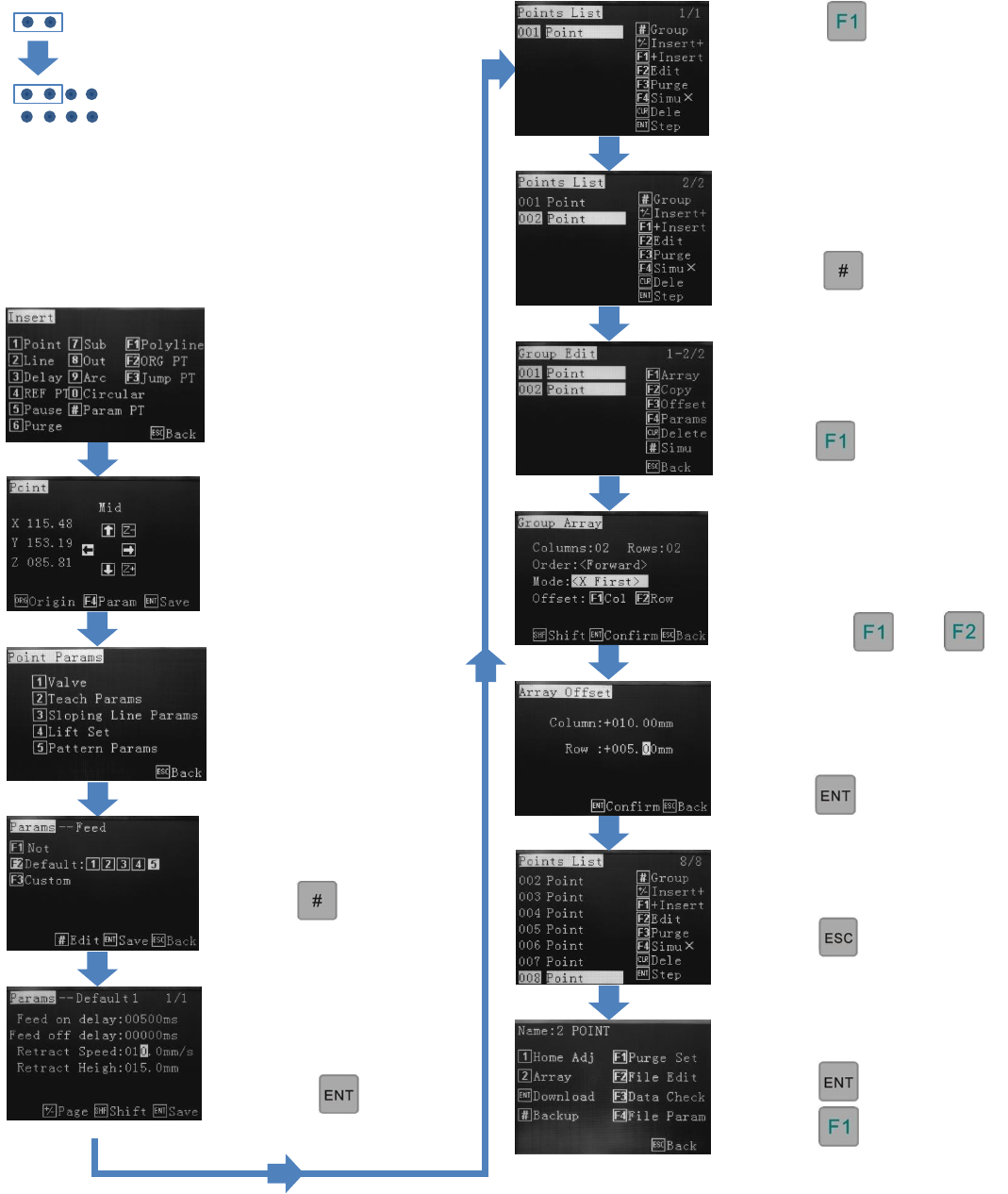

The Points List is made up of

2 dots. When applying row

and column values the 2 dots

will be arraying 2 dots by a 2

x 2 array the result will be a

total of 8 dots.

Reference Section 9.2

From the Insert screen,

select option 1.

Insert the first dot co-

ordinates

Press 2 – Teach Params

Ensure F2 is highlighted.

Press

Set Feed on delay

(dispensing time)

Set retract height and

speed.

Press

Insert the second dot co-

ordinates (as in the

illustration.

All co-ordinates are listed

in the Points List.

Press

Use up/down arrow keys to

select all co-ordinates.

Press

Input row and column

distances, based on the

pattern elelment.

Press twice.

Input number of rows and

columns. Order cannot be

changed. Set “Mode” –

dispensing direction.

Press either or

Continue editing or…

Press twice.

Continue editing or…

Press to download.

Press to start.
