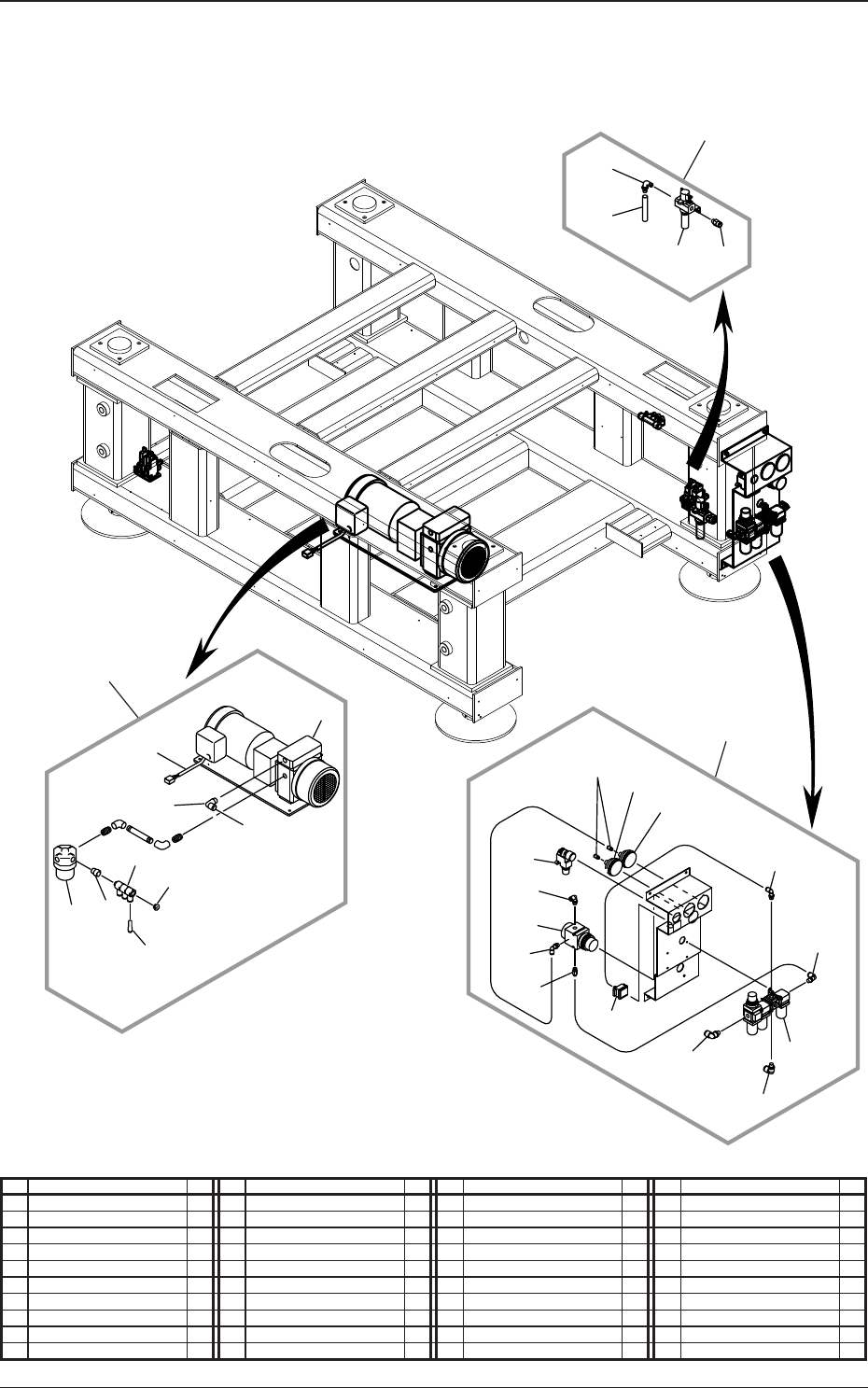

5OM-1602 1-5 气路图及实际贴装图 1 103-002-(01200) 主机 ( 实际贴装图 ) 5-1 5-1 5-5 5-3 5-5 5-5 5-6 5-3 5-7 5-4 4-3 4-7 4-1 4-1 4-3 4-5 4-4 4-6 4-5 4-5 7-3 7-1 7-4 7-2 6-3 6-1 6-2 4 5 6 7 No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name…
5OM-1602
1-4
气路图及实际贴装图
1103-002-(01200)
主机 ( 实际贴装图 )
1-4
1-1
1-3
1-2
2-3
2-10
2-7
2-6
2-12
2-7
2-9
2-1
2-4
2-13
2-14
2-14
2-2
2-12
3-6
3-5
3-4
3-1
3-1
3-8
3-7
3
1
2
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Air Supply Unit 1 2-6 Regulator 1 3-4 Bush 1
1-1 Combination Unit 1 2-7 Regulator 1 3-5 Universal Quick 3
1-2 Female/Male Elbow 1 2-9 Half Union 2 3-6 Plug 1
1-3 Single-Ended Hose Nipple 1
2-10
Half Union 1 3-7 Elbow Union 1
1-4 Half Union 1
2-11
Elbow Union 1 3-8 Reducer 1
2 Air Supply Unit 1
2-12
Elbow Union 2
2-1 Vacuum Gauge 1
2-13
Elbow Union 1
2-2 Combination Unit 1
2-14
Elbow Union 2
2-3 Pressure Switch 1 3 Vacuum Pump Unit 1
2-4 Pressure Gauge 1 3-1 Vacuum Pump 1
5OM-1602
1-5
气路图及实际贴装图
1103-002-(01200)
主机 ( 实际贴装图 )
5-1
5-1
5-5
5-3
5-5
5-5
5-6
5-3
5-7
5-4
4-3
4-7
4-1
4-1
4-3
4-5
4-4
4-6
4-5
4-5
7-3
7-1
7-4
7-2
6-3
6-1
6-2
4
5
6
7
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
4 Solenoid Valve Unit 1 5-4 Half Union 1 7-2 Straight Elbow 2
4-1 Solenoid Valve 2 5-5 Half Union 3 7-3 Reducer Elbow 1
4-3 Half Union 2 5-6 Half Union 1 7-4 Plug 1
4-4 Half Union 1 5-7 Half Union 1
4-5 Half Union 3 6 Manifold Unit 1
4-6 Half Union 1 6-1 Manifold 1
4-7 Half Union 1 6-2 Straight Elbow 2
5 Solenoid Valve Unit 1 6-3 Reducer Elbow 1
5-1 Solenoid Valve 2 7 Manifold Unit 1
5-3 Half Union 2 7-1 Manifold 1
5OM-1602
1-6
气路图及实际贴装图
1103-002C(02300)
传送带 ( 气路图 )
(L300)
(L300)
(L70)
(L130)
(L275)
(L280)
(L240)(L250)
Pipe 6L440
Pipe 6L1000
Pipe 6L270
4
2
8
7
3.2Ｌ450
13
1
3.2Ｌ440
A
B
A
B
A
B
A
B
3.2Ｌ370
3.2Ｌ380
3.2Ｌ122
3.2Ｌ70
3.2Ｌ46
3.2Ｌ122
3.2Ｌ70
3.2Ｌ46
3.2Ｌ122
3.2Ｌ70
3.2Ｌ46
3.2Ｌ46
3.2Ｌ70
3.2Ｌ122
VBKHZ
VB3HZ
VB3HZ
B3HZ
B3HZ
VBKHZ
BKHZ
BKHZ
VBKMZ
VB3MZ
B3MZ
B3MZ
VB3MZ
VBKMZ
BKMZ
BKMZ
VBHSO
VBHSI
VBHSO
VBHSI
BHSI
BHSI
BHSI
BHSI
BHSO
BHSO
BHSO
BHSO
VBMSI
VBMSO
VBMSO
VBMSI
BMSI
BMSO
BMSO
BMSO
BMSI
BMSI
BMSI
BMSO
3.2Ｌ430
3.2Ｌ450
3.2Ｌ430
3.2Ｌ370
3.2Ｌ450
3.2Ｌ450
3.2Ｌ520
3.2Ｌ525
3.2Ｌ900
3.2Ｌ400
3.2Ｌ930
3.2Ｌ470
1
11
9
1
12
10
6
3
8
7
1
From Main Body
Movable Side Z-Clamp L
Fixed Side Z-Clamp L
PCB Stopper L
Movable Side Z-Clamp R
Fixed Side Z-Clamp R
PCB Stopper R
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
3.2 1 11 Speed Controller
2 Tube
φ
6 1 12 Speed Controller
3 Half Nipple 1 13 Flat Tube d4.1
4 Union Y 1
5 Solenoid Valve 1
6 Solenoid Valve 1
7 Fixed Chute Unit 1
8 Movable Chute Unit 1
9 PCB Stopper 1
10 PCB Stopper 1
