5OM-1602 1-16 气路图及实际贴装图 1 103-003 送料器安装台 ( 气路图 ) 5 1 2 3 4 6 From Main Body No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty 1 T ube φ 6 1 2 Solenoid V alve 2 3 Speed Controller 4 4 Cylinder 2 5 Modular Unit 2 6 A…
5OM-1602
1-15
气路图及实际贴装图
1103-003-(0320C)
安装头部 ( 实际贴装图 )
3
5
4
6
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Solenoid Valve 1
2 Rotary Joint 1
3 Solenoid Valve 15
4 Filter 15

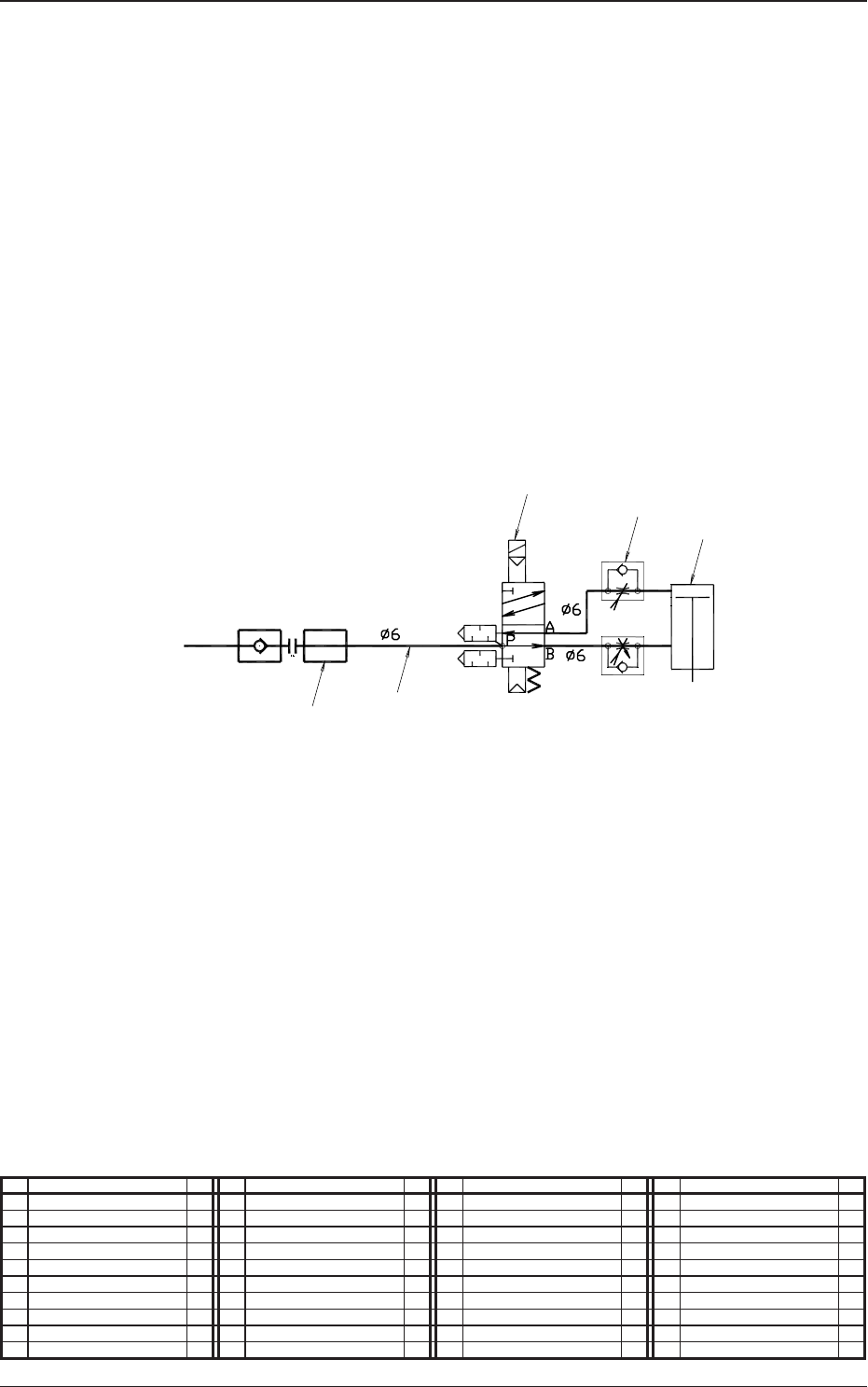

5OM-1602
1-16
气路图及实际贴装图
1103-003
送料器安装台 ( 气路图 )
5
1
2
3
4
6
From Main Body
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
6 1
2 Solenoid Valve 2
3 Speed Controller 4
4 Cylinder 2
5 Modular Unit 2
6 Air Connector Pin 2
5OM-1602
1-17
气路图及实际贴装图
1103-003
送料器安装台 ( 实际贴装图 )
3
4
2
6
5
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
2 Solenoid Valve 2
3 Speed Controller 4
4 Cylinder 2
5 Modular Unit 2
6 Air Connector Pin 2
