5OM-1602
2-14
传感器及负载配置图
1103-002

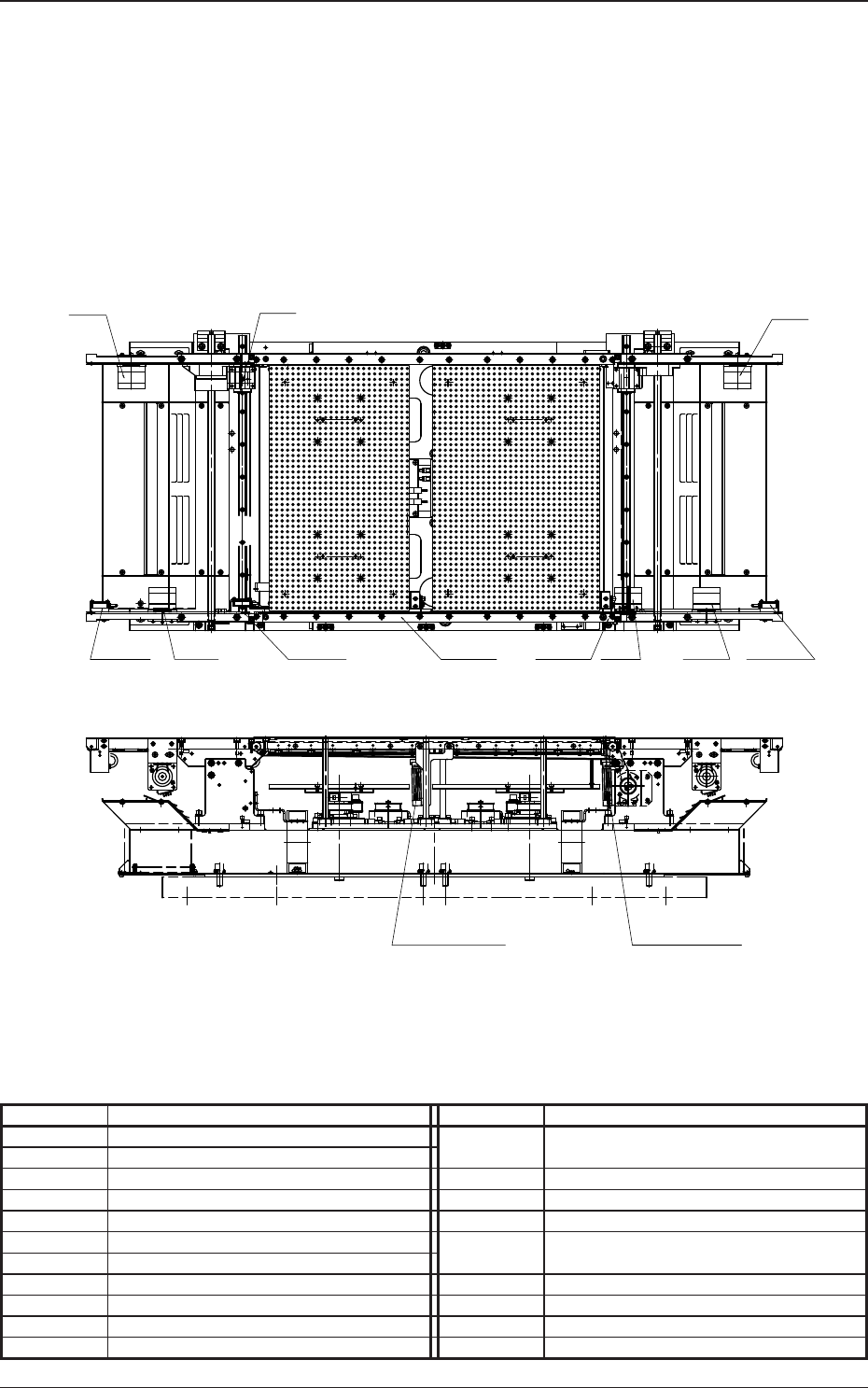

传送带部布局 ( 外侧 )
8
10
10
10
10
8
5
5
5 5
4 4
4 4
4
4
KL
KL
KR
KR
4
6
4
6
4
6
4
4
6
4
8
4
8
8
5
5
4 4
‰Â“®‚R‚k
Ø6.0
“dü
Ø4.8
“dü
Ø3.2
ƒtƒ@ƒCƒn??
Ø3.2
ƒGƒA
Ø3.2
ƒtƒ@ƒCƒn??
Ø6.0
“dü
Ø6.0
“dü
‰Â“®‚R‚q
Ø6.0
“dü
Ø3.2
ƒtƒ@ƒCƒn??
Ø3.2
ƒGƒA
Ø3.2
ƒtƒ@ƒCƒn??
4
4
4
4 4
4
5 5
B4501
M46
B4502
B4801
M48
M52
B5101
M51
M47
M45
B1414,B1415
B1416,B1417
B4701
Symbol Name Symbol Name
M45 NL-LA1 B4501 Lane A Deceleration Sensor (L Flow),
M46 NL-LA2 STOP Sensor (R Flow)
M47 NA-LA1 B4502 Lane A Stop Sensor (L Flow)
M48 NA-LA2 B4701 Lane A Stop Sensor Mounting Section 1
M51 NR-LA1 B4801 Lane A Stop Sensor Mounting Section 2
M52 NR-LA2 B5101 Lane A Stop Sensor (L Flow),
Deceleration Sensor (R Flow)
B1414 PCB Stopper AL Upper Sensor
B1415 PCB Stopper AL Origin Sensor
B1416 PCB Stopper AR Upper Sensor
B1417 PCB Stopper AR Origin Sensor
5OM-1602
2-15
传感器及负载配置图
1103-002

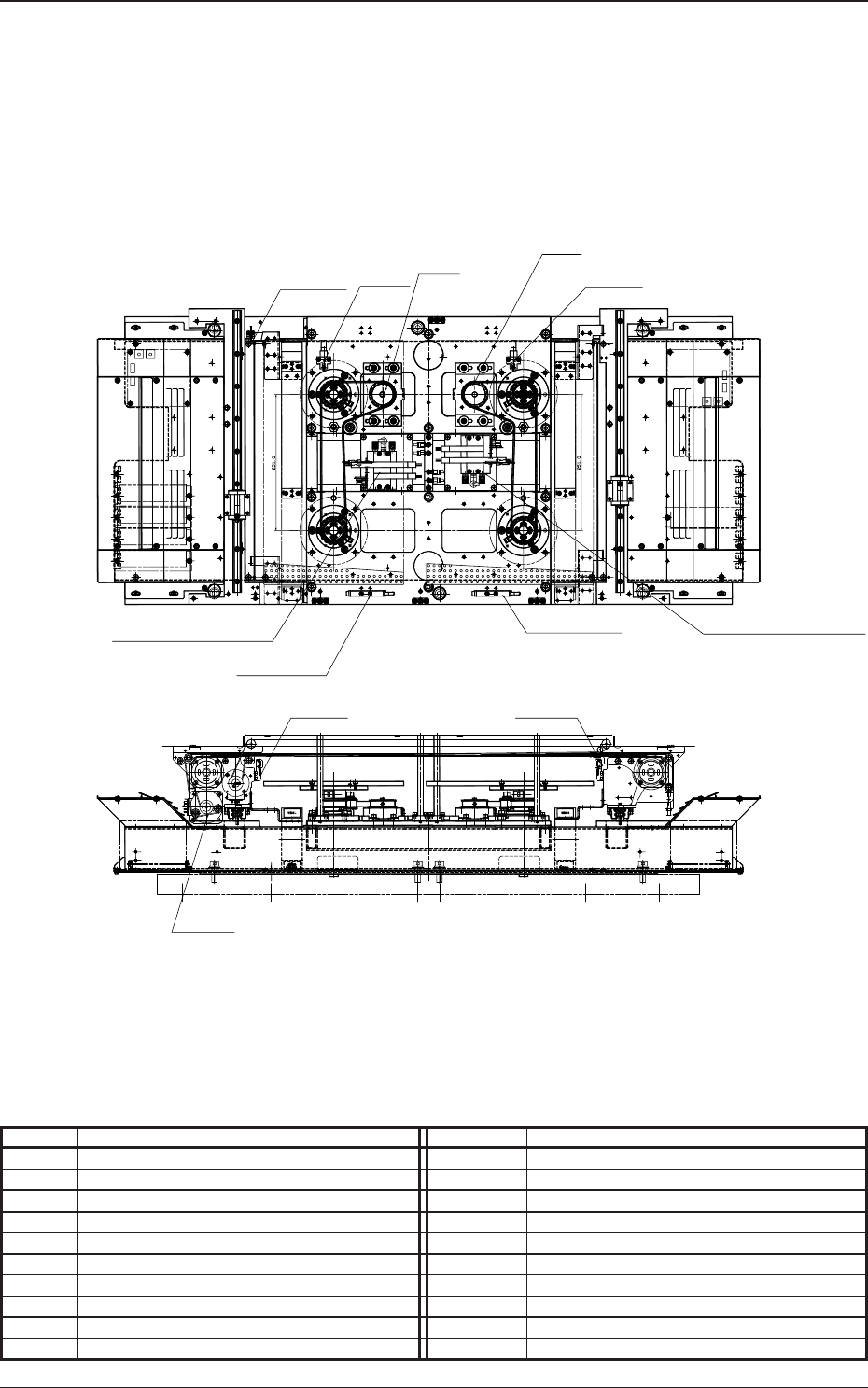

传送带部布局 ( 内侧 )
B16301
B5301
M53
M54
B5401
Y0836,Y0837,Y0839
B5301 Amp
B5401 Amp
Y1436,Y1437,Y1439
B0820 B0920T
M163
Symbol Name Symbol Name
M53 NA-BAL B5301
Backup Base 1 Origin Sensor Limit (+)
M54 NA-BAR B5301 Amp Amplier
M163 NA Chute Width Changeable (3) B5401
Backup Base 2 Origin Sensor Limit (+)
Y0836 Movable 3LZ Clamp Cylinder Valve (A: Descent) B5401 Amp Amplier
Y0837 Movable 3LZ Clamp Cylinder Valve (B: Ascent) B16301 Movable Chute 3 Origin Sensor
Y0839
PCB Stopper BL B0820
Movable Chute Support Pin Sensor 3 (Light Reception)
Y1436 Movable 3RZ Clamp Cylinder Valve (A: Descent) B0820T
Movable Chute Support Pin Sensor 3 (Light Emission)
Y1437 Movable 3RZ Clamp Cylinder Valve (B: Ascent)
Y1439 PCB Stopper BR
5OM-1602
2-16
传感器及负载配置图
1103-002

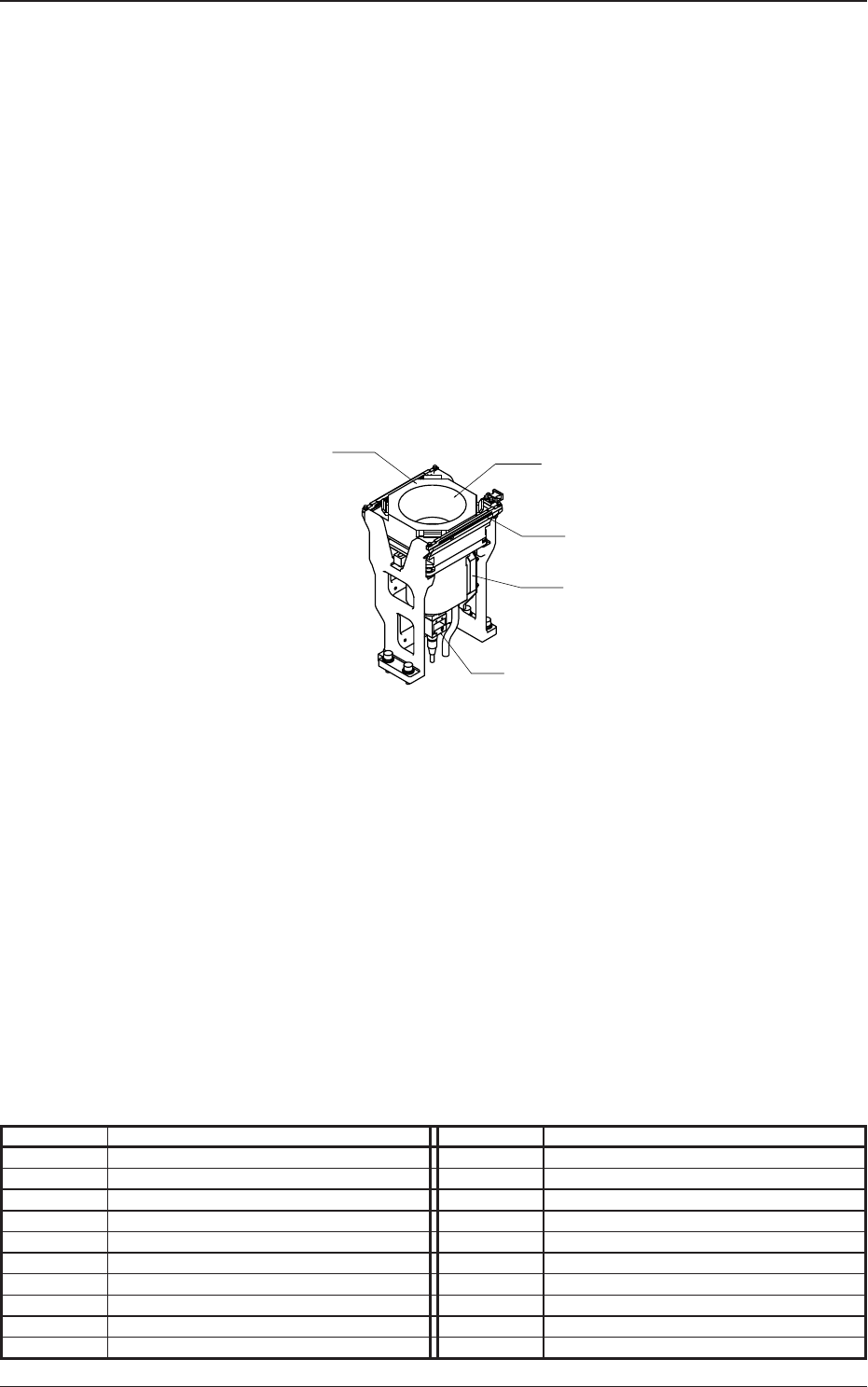

元件识别照相机布局
E194
E191
E193
E192
B61
Symbol Name Symbol Name
B61 Component Recognition Camera
E191 Component Recognition Ring Lighting
E192 Component Recognition Coaxial Lighting
E193 Standard Mark Lighting A
E194 Standard Mark Lighting
B
