5OM-1602 2-18 传感器及负载配置图 1 103-001 Y1719 M142(1L,2L,3L) M141(1Z,2Z,3Z) B02 B04 B01 B05 NOZZLE1 NOZZLE2 NOZZLE3 B07 Y1718 多功能安装头部布局 Symbol Name Symbol Name M141 Nozzle Z-Axis Motor B01 L-Axis + Limit M142 Nozzle L-Axis Mot…
5OM-1602
2-17
传感器及负载配置图
1201-003

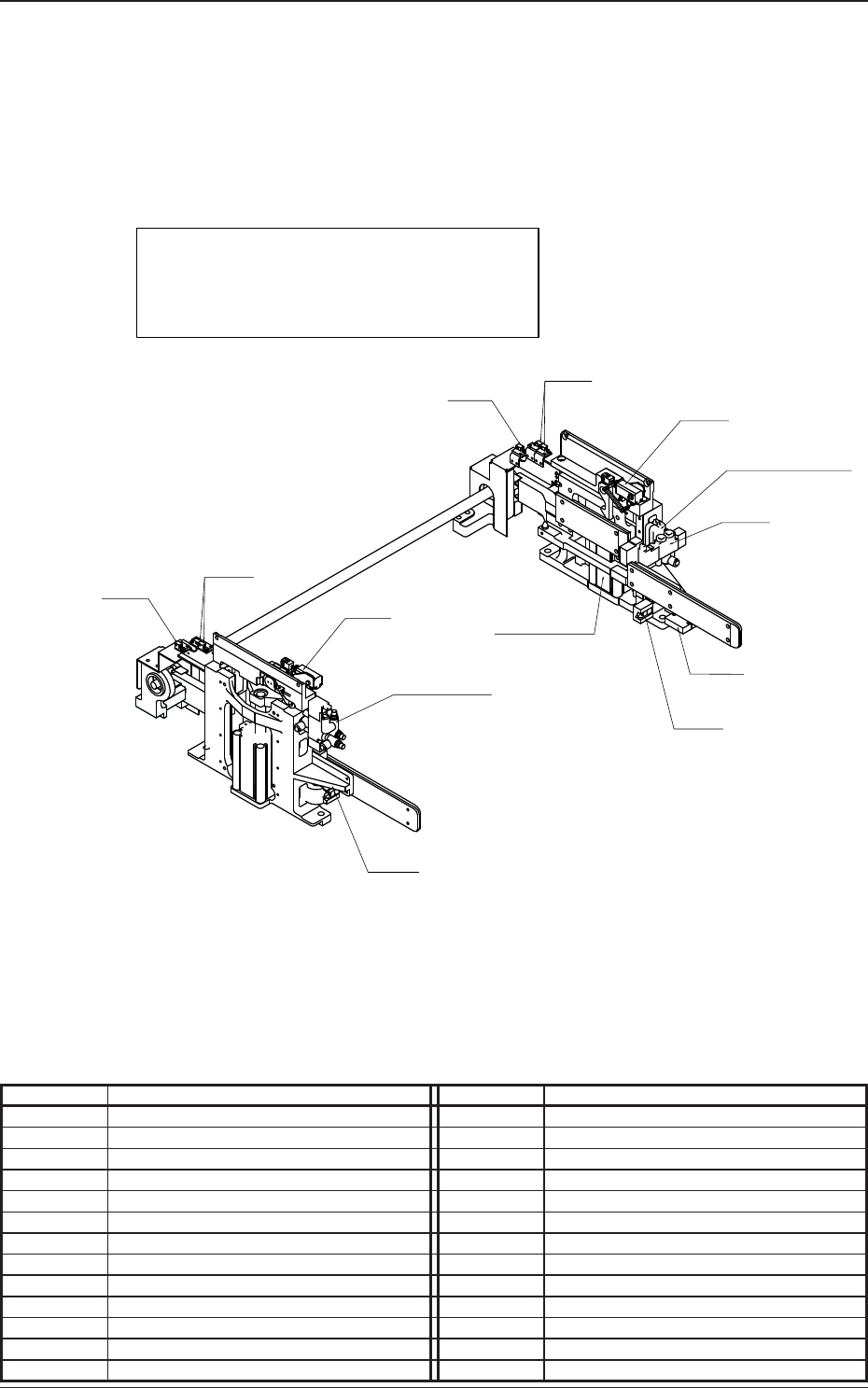

定位部布局
B0521
B0520
B0515
B0514
B0612
B0912
Y0632,Y0633
Y0932,Y0933
B0614,B0615
B0914,B0915
B0611
B0911
B0613
B0913
B0515,0521 Amp
B0514,0520 Amp
Y0642
Y0942
B0610
B0910
S151F
S151R
B0521
B0921
B0515
B0915
Upper Stage: Front View
Lower Stage: Rear View
Symbol Name Symbol Name
Y0632 Feeder Base 2 Ascending Y0932 Feeder Base 1 Ascending
Y0633 Feeder Base 2 Descending Y0933 Feeder Base 1 Descending
Y0642
PCB Positioning Unit Drop Prevention Stopper 2
Y0942
PCB Positioning Unit Drop Prevention Stopper 1
B0515 Pick-up Error Detection (Front) B0514 Pick-up Error Detection (Rear)
B0521 Feeder Disengaged Latch Detection (Front) B0520 Feeder Disengaged Latch Detection (Rear)
B0515,0521Amp
Amplier
B0514,0520Amp
Amplier
B0610
Feeder Base 2 Y Direction Positioning Check 1
B0910
Feeder Base 1 Y Direction Positioning Check 1
B0611
Feeder Base 2 Y Direction Positioning Check 2
B0911
Feeder Base 1 Y Direction Positioning Check 2
B0612
Positioning Unit Drop Prevention Lock Check 2 (L)
B0912
Positioning Unit Drop Prevention Lock Check 1 (L)
B0613
Positioning Unit Drop Prevention Lock Check 2 (R)
B0913
Positioning Unit Drop Prevention Lock Check 1 (R)
B0614 Cylinder Upper Limit Detection (Front) B0914 Cylinder Upper Limit Detection (Rear)
B0615 Cylinder Lower Limit Detection (Front) B0915 Cylinder Lower Limit Detection (Rear)
S151F Feeder Cart Detection (Front) S151R Feeder Cart Detection (Rear)
5OM-1602
2-18
传感器及负载配置图
1103-001
Y1719
M142(1L,2L,3L)
M141(1Z,2Z,3Z)
B02
B04
B01
B05
NOZZLE1 NOZZLE2 NOZZLE3
B07
Y1718
多功能安装头部布局
Symbol Name Symbol Name
M141 Nozzle Z-Axis Motor B01 L-Axis + Limit
M142 Nozzle L-Axis Motor B02 L-Axis - Limit
Y1719 Vacuum Valve B04 L-Axis Pass Line
Y1718 Vacuum Break Valve B05 Excesive Pushing Detection
B07 Vacuum Sensor
5OM-1602
2-19
传感器及负载配置图
1103-001

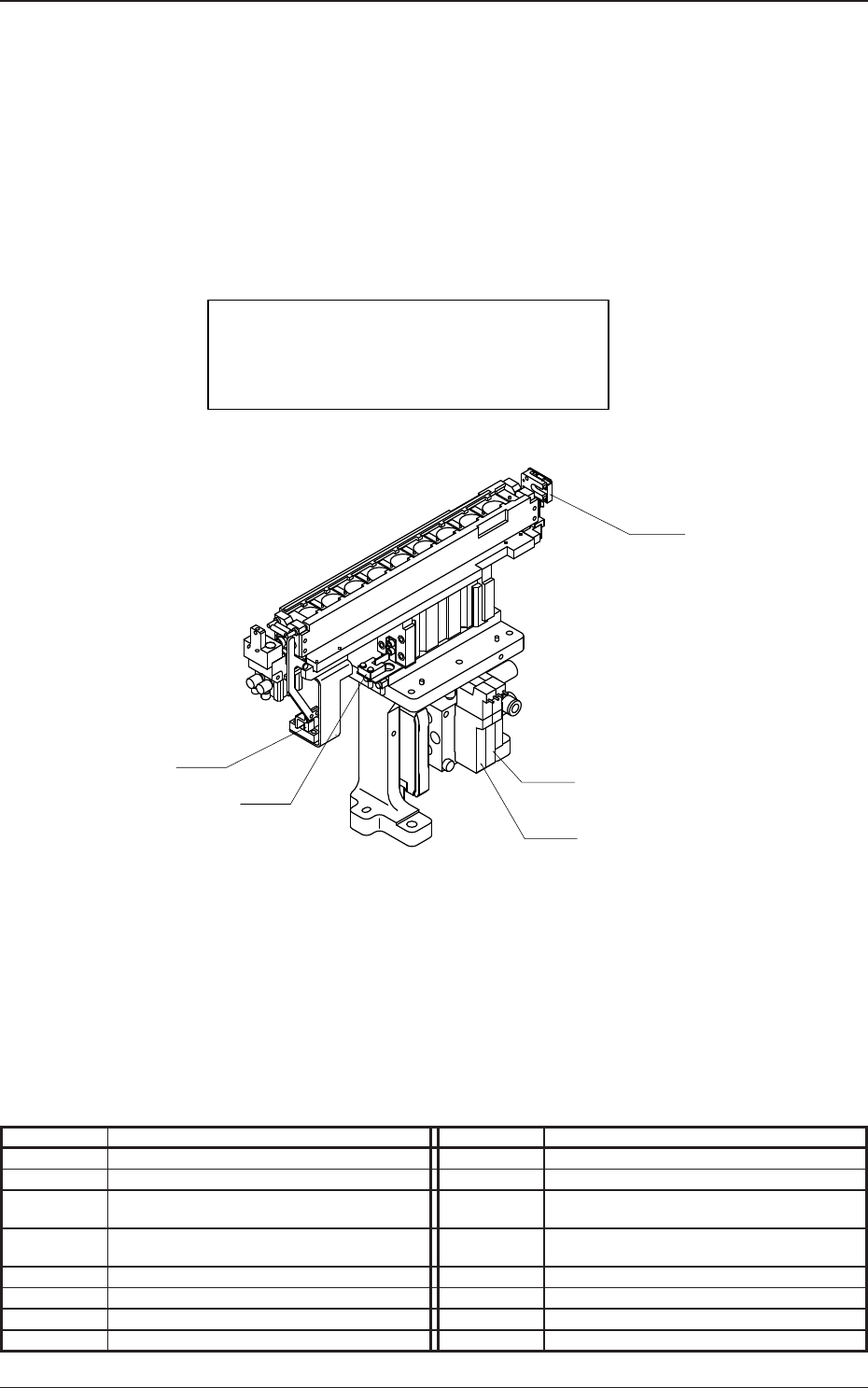

Upper Stage : Left View
Lower Stage : Right View
B0618
B0918
B0620
B0920
Y0636
Y0936
Y0635
Y0935
B0622
B0922
Symbol Name Symbol Name
Y0635 Nozzle Stocker 2 Shutter Open/Close 1 Y0935 Nozzle Stocker 1 Shutter Open/Close 1
Y0636
Multi Function Nozzle Stocker 2 Ascending 1 Y0936 Multi Function Nozzle Stocker 1 Ascending 1
B0618 Multi Function Nozzle Stocker 2
Unit Lower Limit Detection 1
B0918 Multi Function Nozzle Stocker 1
Unit Lower Limit Detection 1
B0620 Multi Function Nozzle Stocker 2
Shutter Close Check 1
B0920 Multi Function Nozzle Stocker 1
Shutter Close Check 1
B0622
Multi Function Nozzle Stocker 2 Clamp Check 1
B0922
Multi Function Nozzle Stocker 1 Clamp Check 1
多功能吸嘴储料器部布局
