5OM-1602 2-4 传感器及负载配置图 0910-001 横梁 Y 轴布局 M22 U22 U23 M23 Y2 U23 U22 Y1 U23 U22 M22 U22 U23 M23 Y2 Y1 B2203 B2202 B2201 Symbol Name Symbol Name M22 Y1-Axis Motor M23 Y2-Axis Motor U22 Y1 Linear Scale Head (Converter) U23 …
5OM-1602
2-3
传感器及负载配置图
1008-002
机盖布局
M102
H11F
H1
S132 (Rear Side)
H11B
S112B
M101
S132 (Front Side)
S112F
S111B
S111F
Symbol Name Symbol Name
H1 Light Tower
H11F Material Indicator (Front) H11B
Material Indicator (Rear)
S112F STAGE READY (Front) S112B STAGE READY (Rear)
S132 COVER LOCK (Front Side) S132 COVER LOCK (Rear Side)
M101 Ceiling Cooling Fan (Left) M102 Ceiling Cooling Fan (Right)
S111F READY (Front) [Feeder Ready] S111B READY (Rear) [Feeder Ready]
5OM-1602
2-4

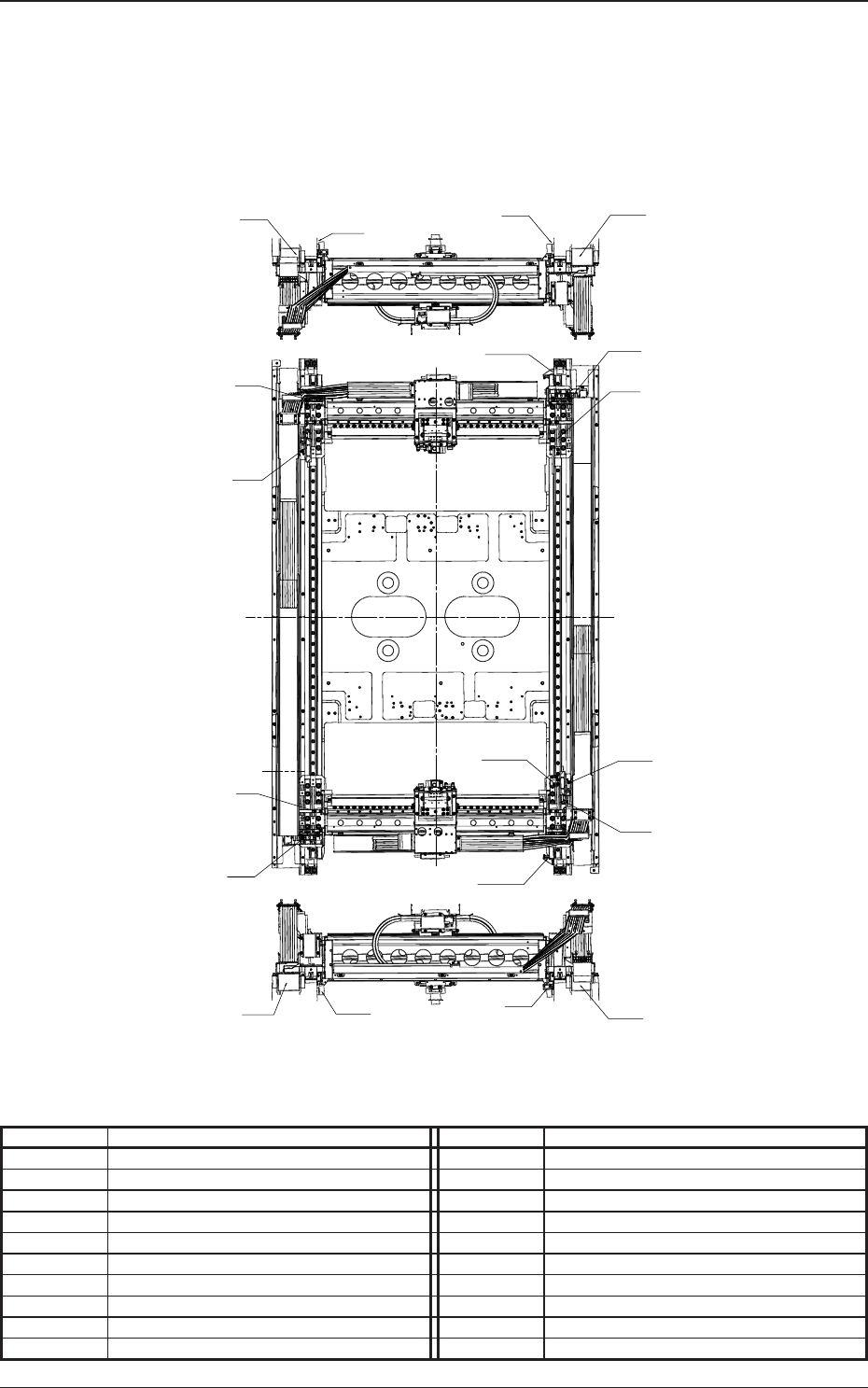

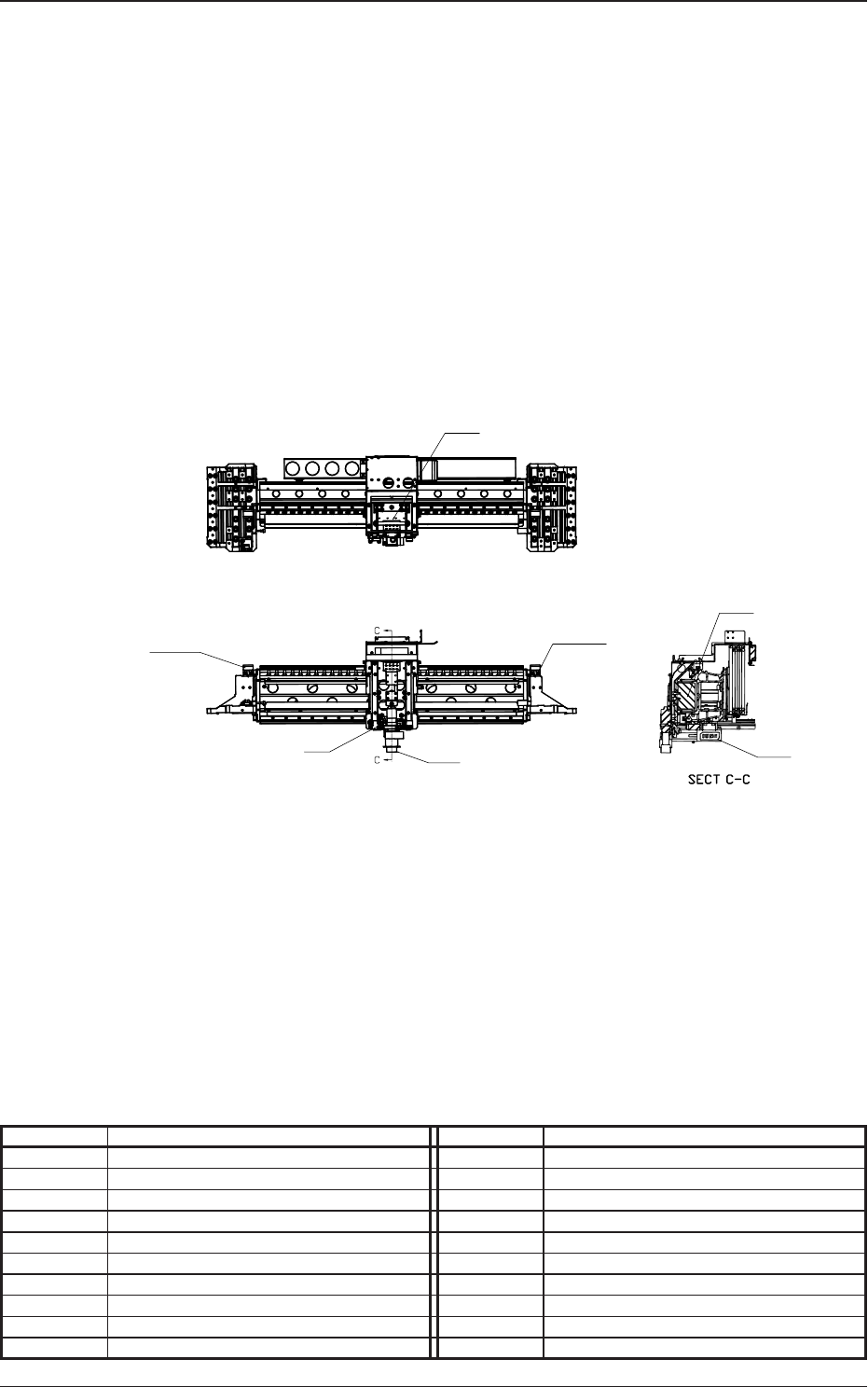

传感器及负载配置图
0910-001
横梁 Y 轴布局
M22
U22
U23
M23
Y2
U23
U22
Y1
U23
U22
M22
U22
U23
M23
Y2
Y1
B2203
B2202
B2201
Symbol Name Symbol Name
M22 Y1-Axis Motor
M23
Y2-Axis Motor
U22 Y1 Linear Scale Head (Converter)
U23 Y2 Linear Scale Head (Converter)
B2201 Y-Axis Limit (+)
B2202 Y-Axis Approach Detection
B2203 Y-Axis Limit (-)
5OM-1602
2-5
传感器及负载配置图
0910-001
横梁 X 轴布局
U21
B2101
B2102
B36
E39
U21
M21
Symbol Name Symbol Name
M21 X1-Axis Motor
U21 Linear Scale Head (Converter)
B2101 X-Axis Limit (+)
B2102
X-Axis Limit (-)
B36 PEC Recognition Camera
E39 PEC Recognition Lighting
