5OM-1602 2-2 传感器及负载配置图 1 103-003 操作台布局 S101F S101B S103F S103B S102F H102F S102B H102B S105F S105B S104F H104AF S104B H104AB H104BF H104BB Upper Stage: Front View Lower Stage: Rear View Symbol Name Symbol Name S101F POWE…
5OM-1602
2-1
传感器及负载配置图
1103-002

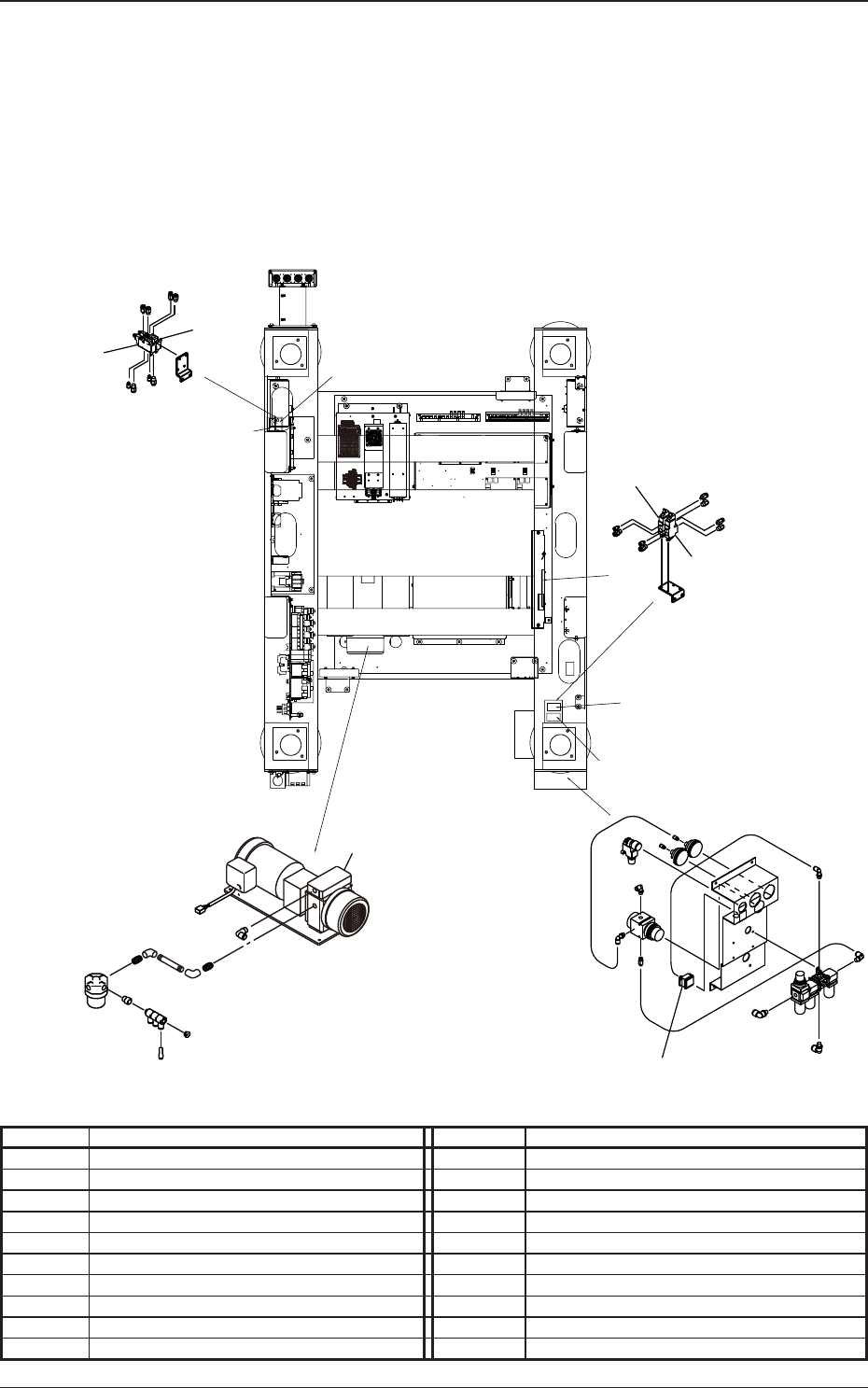

架台下布局
Ｓ144
Ｙ939
Ｙ0938
Ｙ939
Ｙ0938
Ｍ66
Ｙ0938
Ｙ939
Ｙ0938
Ｙ939
Front View
Image Changer
Symbol Name Symbol Name
M66 Vacuum Pump
Y0638 Vacuum/Collective Disposal Change-Over Y0938 Vacuum/Collective Disposal Change-Over
Y0639 High-Speed/Multi-Functional Head Change-Over Y0939 High-Speed/Multi-Functional Head Change-Over
S141 Air Pressure Drop Detection
5OM-1602
2-2
传感器及负载配置图
1103-003

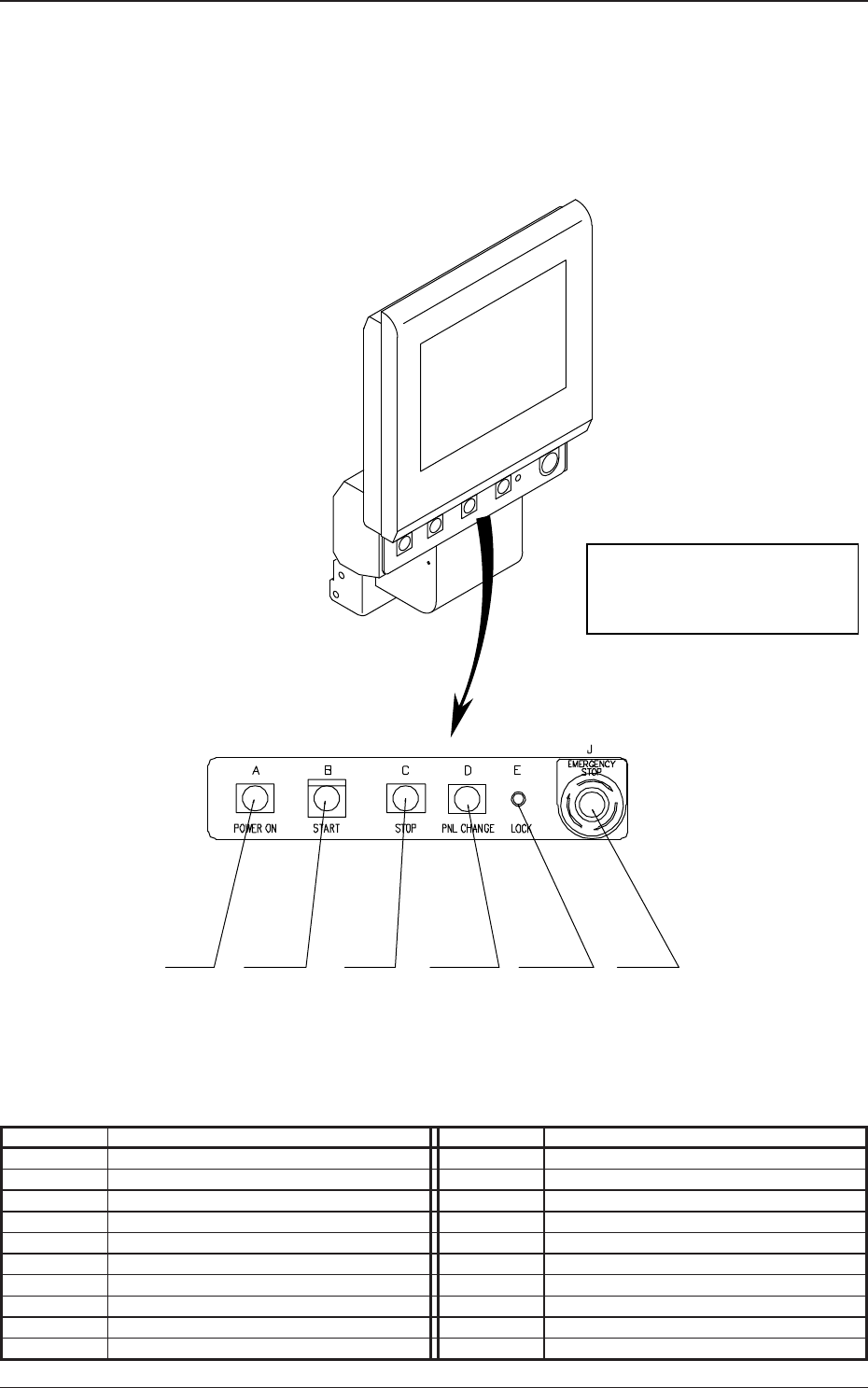

操作台布局
S101F
S101B
S103F
S103B
S102F
H102F
S102B
H102B
S105F
S105B
S104F
H104AF
S104B
H104AB
H104BF
H104BB
Upper Stage: Front View
Lower Stage: Rear View
Symbol Name Symbol Name
S101F POWER ON PB (Front) S101B POWER ON PB (Rear)
S102F
START (Front) S102B START (Rear)
H102F START (Front) LED H102B START (Rear) LED
S103F STOP (Front) S103B STOP (Rear)
H104BF LOCK (Front) LED H104BB LOCK (Rear) LED
S104F PNL CHANGE (Front) S104B PNL CHANGE (Rear)
H104AF PNL CHANGE (Front) LED H104AB PNL CHANGE (Rear) LED
S105F Emergency Stop Operation Switch (Front) S105B Emergency Stop Operation Switch (Front)
5OM-1602
2-3
传感器及负载配置图
1008-002
机盖布局
M102
H11F
H1
S132 (Rear Side)
H11B
S112B
M101
S132 (Front Side)
S112F
S111B
S111F
Symbol Name Symbol Name
H1 Light Tower
H11F Material Indicator (Front) H11B
Material Indicator (Rear)
S112F STAGE READY (Front) S112B STAGE READY (Rear)
S132 COVER LOCK (Front Side) S132 COVER LOCK (Rear Side)
M101 Ceiling Cooling Fan (Left) M102 Ceiling Cooling Fan (Right)
S111F READY (Front) [Feeder Ready] S111B READY (Rear) [Feeder Ready]
