4-27
4
■10.RearLeft(IN)
地址 位数 名称
0000h 0 Device No. Bit0
0000h 1 Device No. Bit1
0000h 2 Device No. Bit2
0000h 3 Device No. Bit3
0000h 4 Device Added Information Bit0
0000h 5 Device Added Information Bit1
0000h 6 Device Added Information Bit2
0000h 7 Output Register Value Bit0
0001h 0 Output Register Value Bit1
0001h 1 Output Register Value Bit2
0001h 2 Output Register Value Bit3
0001h 3 Output Register Value Bit4
0001h 4 Input Register Value Bit0
0001h 5 Input Register Value Bit1
0001h 6 Input Register Value Bit2
0001h 7 Input Register Value Bit3
0002h 0 BOARD (Left Rear) ID0
0002h 1 BOARD (Left Rear) ID1
0002h 2 BOARD (Left Rear) ID2
0002h 3 BOARD (Left Rear) ID3
0002h 4 BOARD (Left Rear) ID4
0002h 5 BOARD (Left Rear) ID5
0002h 6 BOARD (Left Rear) ID6
0002h 7 BOARD (Left Rear) ID7
0003h 0 BOARD (Left Rear) ID8
0003h 1 BOARD (Left Rear) ID9
0003h 2 BOARD (Left Rear) ID10
0003h 3 BOARD (Left Rear) ID11
0003h 4 BOARD (Left Rear) ID12
0003h 5 BOARD (Left Rear) ID13
0003h 6 BOARD (Left Rear) ID14
0003h 7 BOARD (Left Rear) ID15
0004h 0 CTF(Left Rear) Elevator-axis ORG/OR-
0004h 1 CTF(Left Rear) Elevator-axis OR+
0004h 2 CTF(Left Rear) Pallet Transfer Area Sensor
0004h 3 CTF(Left Rear) Shutter Open
0004h 4 CTF(Left Rear) Shutter Close
0004h 7 CTF(Left Rear) Pallet Check in Stocker
0005h 1 CTF(Left Rear) Pallet Check on Elevator
0005h 2 CTF(Left Rear) Pallet Middle Position Sensor
0005h 4 CTF(Left Rear) Cover Close
0005h 5 CTF(Left Rear) Cover Lock
0005h 6 CTF(Left Rear) Setup Switch
0005h 7
CTF(Left Rear) Regenerative Resistor Thermal Sensor
0006h 0 CTF(Left Rear) Hook-axis ORG/OR-
0006h 1
CTF(Left Rear) Hook axis Advanced End Position Sensor
0006h 2 CTF(Left Rear) Servo ON State
0006h 6 CTF(Left Rear) Pallet Height Detection Sensor(L)
0006h 7 CTF(Left Rear) Pallet Height Detection Sensor(R)
地址 位数 名称
0007h 0
CTF(Left Rear) Barcode Reader Receive Counter Bit0
0007h 1
CTF(Left Rear) Barcode Reader Receive Counter Bit1
0007h 2
CTF(Left Rear) Barcode Reader Receive Counter Bit2
0007h 3
CTF(Left Rear) Barcode Reader Receive Counter Bit3
0007h 4
CTF(Left Rear) Barcode Reader Receive Counter Bit4
0007h 5 CTF(Left Rear) Barcode Reader is Sending Data
0007h 6 CTF(Left Rear) Barcode Reader Found No Barcode
0007h 7 CTF(Left Rear) Barcode Reader Receive Complete
■11.RearRight(OUT)
地址 位数 名称
0000h 0 CTF(Right Rear) Cover Lock
0000h 1 CTF(Right Rear) Shutter Open
0000h 2 CTF(Right Rear) Setup Switch
0000h 3 CTF(Right Rear) Safety Relay Reset
0000h 4 CTF(Right Rear) Servo ON Permission
0000h 5
CTF(Right Rear) Pallet Height Detection Sensor(L)
Permit
0000h 7
CTF(Right Rear) Pallet Height Detection Sensor(R)
Permit
0001h 0 CTF(Right Rear) Barcode Reader Trigger On
0001h 1 CTF(Right Rear) Barcode Reader Timeout Set Bit0
0001h 2 CTF(Right Rear) Barcode Reader Timeout Set Bit1
0001h 3 CTF(Right Rear) Barcode Reader Timeout Set Bit2
0001h 4
CTF(Right Rear) Barcode Reader Receive Counter
Clear
4-28
4
■12.RearRight(IN)
地址 位数 名称
0000h 0 Device No. Bit0
0000h 1 Device No. Bit1
0000h 2 Device No. Bit2
0000h 3 Device No. Bit3
0000h 4 Device Added Information Bit0
0000h 5 Device Added Information Bit1
0000h 6 Device Added Information Bit2
0000h 7 Output Register Value Bit0
0001h 0 Output Register Value Bit1
0001h 1 Output Register Value Bit2
0001h 2 Output Register Value Bit3
0001h 3 Output Register Value Bit4
0001h 4 Input Register Value Bit0
0001h 5 Input Register Value Bit1
0001h 6 Input Register Value Bit2
0001h 7 Input Register Value Bit3
0002h 0 BOARD (R) ID0
0002h 1 BOARD (R) ID1
0002h 2 BOARD (R) ID2
0002h 3 BOARD (R) ID3
0002h 4 BOARD (R) ID4
0002h 5 BOARD (R) ID5
0002h 6 BOARD (R) ID6
0002h 7 BOARD (R) ID7
0003h 0 BOARD (R) ID8
0003h 1 BOARD (R) ID9
0003h 2 BOARD (R) ID10
0003h 3 BOARD (R) ID11
0003h 4 BOARD (R) ID12
0003h 5 BOARD (R) ID13
0003h 6 BOARD (R) ID14
0003h 7 BOARD (R) ID15
0004h 0 CTF(Right Rear) Elevator-axis ORG/OR-
0004h 1 CTF(Right Rear) Elevator-axis OR+
0004h 2 CTF(Right Rear) Pallet Transfer Area Sensor
0004h 3 CTF(Right Rear) Shutter Open
0004h 4 CTF(Right Rear) Shutter Close
0004h 7 CTF(Right Rear) Pallet Detect in Stocker
0005h 1 CTF(Right Rear) Pallet Detect on Elevator
0005h 2 CTF(Right Rear) Pallet Middle Position Sensor
0005h 4 CTF(Right Rear) Cover Close
0005h 5 CTF(Right Rear) Cover Lock
0005h 6 CTF(Right Rear) Setup Switch
0005h 7
CTF(Right Rear) Regenerative Resistor Thermal
Sensor
0006h 0 CTF(Right Rear) Hook-axis ORG/OR-
0006h 1
CTF(Right Rear) Hook axis Advanced End Position
Sensor
0006h 2 CTF(Right Rear) Servo ON State
0006h 6 CTF(Right Rear) Pallet Height Detection Sensor(L)
地址 位数 名称
0006h 7 CTF(Right Rear) Pallet Height Detection Sensor(R)
0007h 0
CTF(Right Rear) Barcode Reader Receive Counter Bit0
0007h 1
CTF(Right Rear) Barcode Reader Receive Counter Bit1
0007h 2
CTF(Right Rear) Barcode Reader Receive Counter Bit2
0007h 3
CTF(Right Rear) Barcode Reader Receive Counter Bit3
0007h 4
CTF(Right Rear) Barcode Reader Receive Counter Bit4
0007h 5 CTF(Right Rear) Barcode Reader is Sending Data
0007h 6 CTF(Right Rear) Barcode Reader Found No Barcode
0007h 7 CTF(Right Rear) Barcode Reader Receive Complete
4-29
4

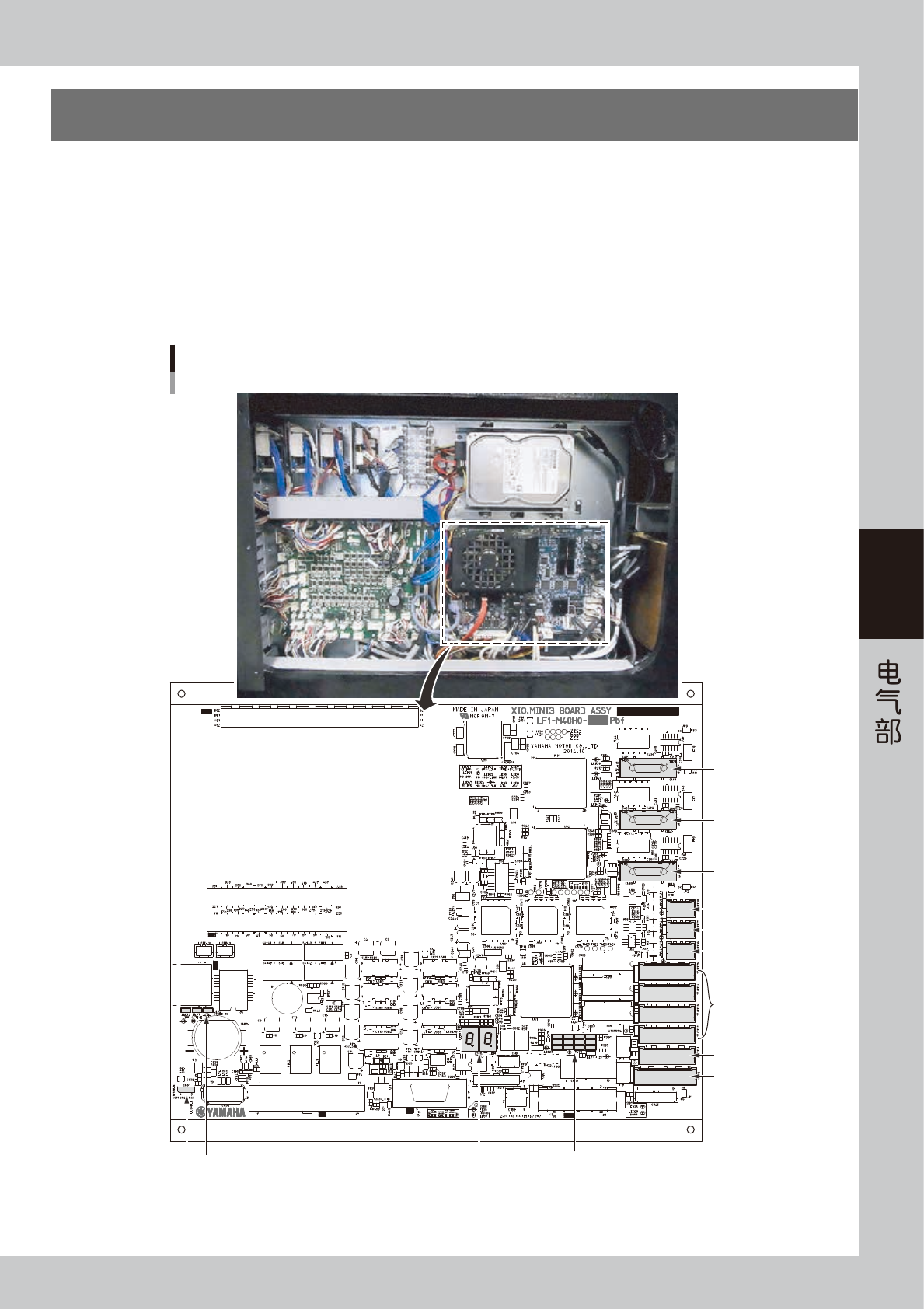

2.主控板
S10、S20 所使用的控制板配备包含贴片机所有控制系统的全数字多功能 I/F。
■ 控制板的操作注意事项
操作贴片机的控制板时，请注意以下事项 ：
•
请勿用湿手触摸。
•
请勿在可能粘附金属片的场所操作。
•
请务必佩戴防静电腕带，将其连接到本机的金属部分以起到防静电的作用。
•
请勿置于可能发生短路的场所。
主控板
LAN动作确认用LED
CN51：使用短路插座短接1和2
7段LED
动作确认用LED
固定相机 (后部)
固定相机 (前部)
检测相机
伺服放大器 (CTF)
伺服放大器 (Z、T)
伺服放大器 (X、Y)
I/O (Feeder or CTF)
I/O (XIO.HI基板)
I/O (XIO.MI11基板)
45401-LF3-00
