4-36 4 2.5 LAN 动作确认用 LED LAN动作确认用LED LED 12 LED 1 LED 2 45406-LF3-00 Ref.No 名称 LED 亮灯条件 LED1 GBE ACT 绿色 LAN 处于 ACTIVE 状态时亮灯 LED2 GBE LINK1000 黄色 LAN 以 1Gbps 运行时亮灯 LED12 GBE LINK 黄色 LAN 链接时亮灯
4-35
4
诊断 代码诊断内容
A7 Platform PCI
A8 Platform CSM
A9 Platform HII Advanced
AA Platform Setup
AC Always on always connected (AOAC)
B4 Intel Fast Flash Standby (iFFS)
B5 Integrated Clock Controller (ICC)
BA
Intel vPro
BB
BC
BD
BE
BF
C0
C1
C2
Processor
C3
C4
C5
C6
C7
C8
C9
Chipset
CA
CB
CC
CD
CE
CF
F0 Reset vector.
F1 Leaving SEC/Going to PEI.
F2 Entering PEI Dispatch.
F3 Exiting PEI Dispatch.
F4 Entering DXE IPL's normal boot path.
F5 Entering DXE IPL's S3 boot path.
F6 Exiting S3 boot path back to the OS.
F7 Entering DXE IPL's recovery boot path.
F8 Exiting DXE IPL to enter the DXE phase.
F9 Entering DXE Dispatch.
FA Exiting DXE Dispatch.
FB No permanent memory found at the end of PEI.
FC No DXE IPL found at the end of PEI.
FD No DXE found at end of DXE IPL.
FE Couldn't find the PPIs needed by DXE.
FF
Missing one or more architectural protocols at the end of
DXE.
4-36
4

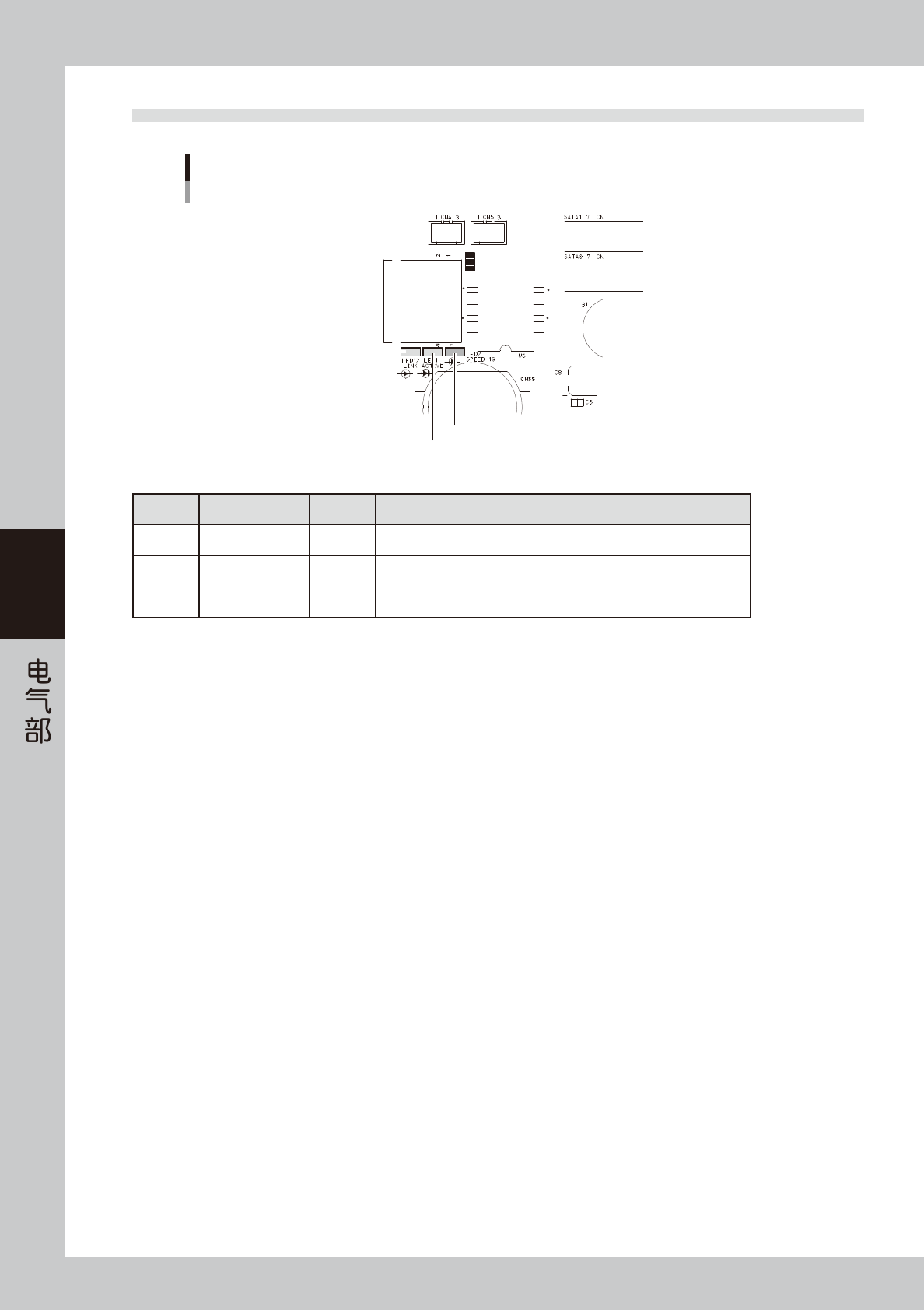

2.5 LAN 动作确认用 LED
LAN动作确认用LED
LED 12
LED 1
LED 2
45406-LF3-00
Ref.No
名称
LED
亮灯条件
LED1 GBE ACT
绿色 LAN 处于 ACTIVE 状态时亮灯
LED2 GBE LINK1000
黄色 LAN 以 1Gbps 运行时亮灯
LED12 GBE LINK
黄色 LAN 链接时亮灯
4-37
4
3.I/O 控制板
I/O 控制板除了各种 I/O 以外，还对固定相机照明驱动及传送带马达进行控制。该控制板还包含系统安全回路。
可通过下表中的 LED 确认通信、FPGA、DC 电源的状态。
名称
LED
亮灯条件 备注
D1
黄色 通信正常时亮灯 D2 灭灯
D2
红色 通信异常时亮灯 D1 灭灯
D3
黄色 FPGA 的初始化结束后亮灯
D4
绿色 供给＋ 5v 电源时亮灯
D5
绿色 供给送料器用＋ 24v 电源时亮灯
D11
绿色 供给送料器用＋ 5v 时亮灯
I/O控制板
TP3
(GND)
TP12
放大图
TP10
TP11
TP7
TP8
TP9
45407-LF3-00
