4-4 4 1.3.1 串行 DI/DO 表 (S10) c 注意 如果执行 DO 操作，指定的机构将运行。请确认安全之后再执行操作。 ■1.Mi11(OUT) 地址位数名称 0000h 0 READY SW (F) 0000h 1 RESET SW (F) 0000h 2 ST ART SW (F) 0000h 3 STOP SW (F) 0000h 4 CLEAR SW (F) 0000h 7 DOCKING SW (…

4-3

1.3 串行 I/O

串行 I/O 画面上设有以下输入 (IN) 和输出 (OUT) 选项卡。

■串行 I/O 编排表

串行 DO:(1.Mi11(OUT)～3.Hi11(OUT)～7.FrontLeft(OUT)～9.RearLeft(OUT)～11.RearRight(OUT))

串行 DI:(2.Mi11(IN)～4.Hi11(IN)～6.FrontRight(IN)～8.FrontLeft(IN)～10.RearLeft(IN)12.RearRight(IN))

选择输出 (OUT) 选项卡，点击要操作的机构所在的单元格，显示 1(ON) 时切换为 0(OFF)、显示 0(OFF) 时切换为 1(ON)，

使所选机构运行。

 将光标移至待操作机构的状态栏单元格并点击。

显示 1(ON) 时切换为 0(OFF)，显示 0(OFF) 时切换为 1(ON)，同时机构开始运行。

■以上下移动顶板为例

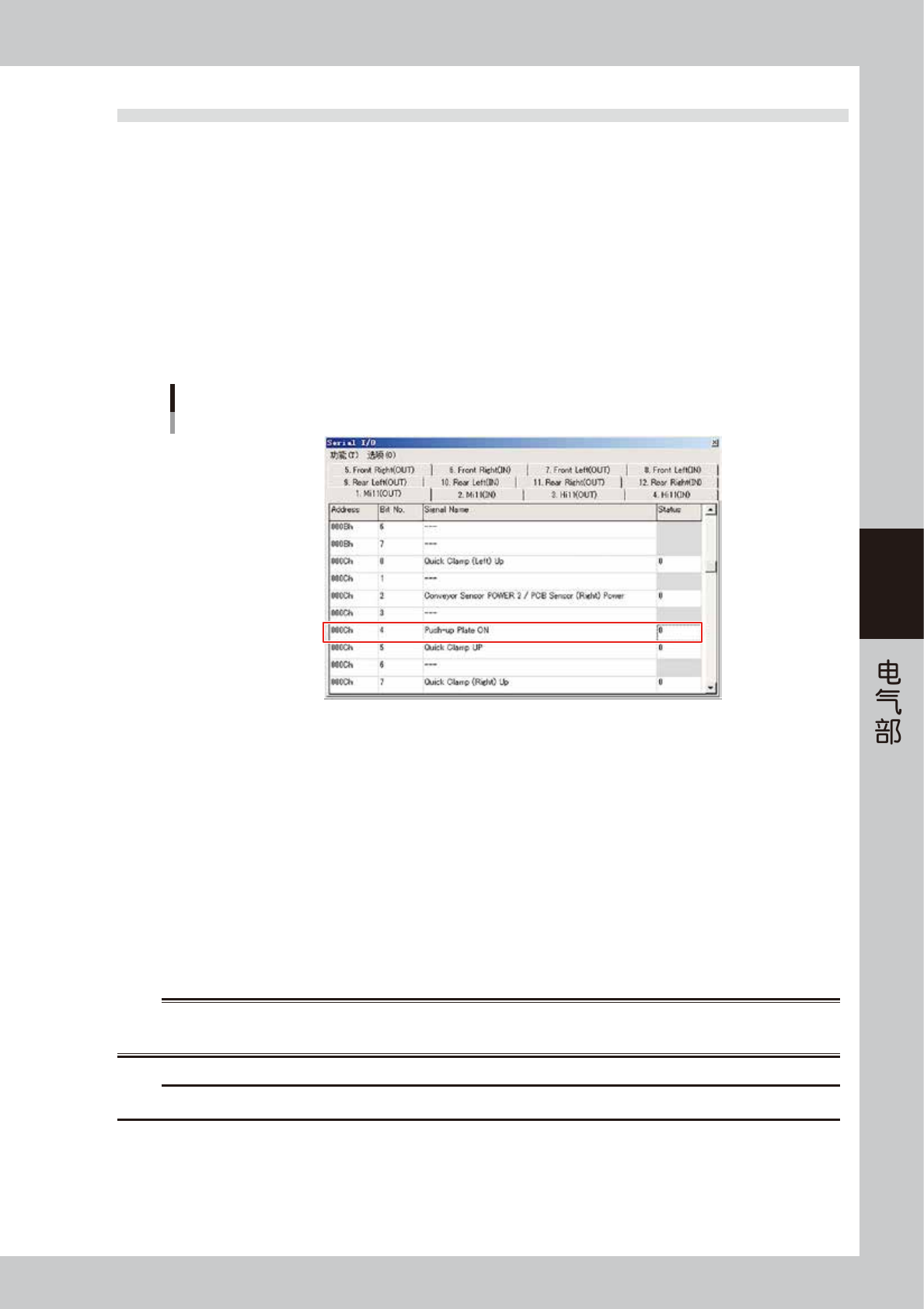

Serial I/O

46404-LF3-10

点击主菜单的 [ 手动 ] 按钮 >“DI/DO 信号”，打开“SerialI/O”画面。

点击“1.Mi11(OUT)”选项卡。

使顶板上升。

点击“Push-upPlateON”的状态栏后，画面上的“0”变为“1”，顶板上升 (ON)。

此时，确认“2.Mi11(IN)”选项卡的“MainClampUp/Push-upPlateUp”状态栏也从“0”变为“1”。

使顶板下降。

如需使顶板下降，再次点击“1.Mi11(OUT)”选项卡的“Push-upPlateON”状态栏。

此时，“2.Mi11(IN)”选项卡的“MainClampUp/Push-upPlateUp”状态栏也从“1”恢复为“0”。

警告

如果执行 DO 操作，指定的机构将运行。执行 DO 操作时，请勿将头部或手部等身体部位伸入贴片机或矩阵盘送料器内。否则容易

受伤。为避免人员受伤，请确认贴片机或矩阵盘送料器周围无人。

注意

执行 DO 操作时，请勿在贴片机或矩阵盘送料器内放置障碍物。否则可能导致贴片机或矩阵盘送料器损坏。

4-4

1.3.1 串行 DI/DO 表 (S10)

注意

如果执行 DO 操作，指定的机构将运行。请确认安全之后再执行操作。

■1.Mi11(OUT)

地址位数名称

0000h 0 READY SW (F)

0000h 1 RESET SW (F)

0000h 2 START SW (F)

0000h 3 STOP SW (F)

0000h 4 CLEAR SW (F)

0000h 7 DOCKING SW (F)/(Right Front)

0001h 1 SSI DI Port Check

0002h 0 READY SW (R)

0002h 1 RESET SW (R)

0002h 2 START SW (R)

0002h 3 STOP SW (R)

0002h 4 CLEAR SW (R)

0002h 7 DOCKING SW (R)/(Right Rear)

0003h 3 CTF (R)/(Right Rear) Servo Power Supply

0004h 0 Signal Tower 1 On

0004h 1 Signal Tower 2 On

0004h 2 Signal Tower 3 On

0004h 3 Signal Tower 4 On

0004h 5 WARNING SOUND

0004h 6 HAZARD SOUND

0004h 7 UPS Shutdown

0005h 0 READY Output

0005h 1 BOARD AVAILABLE Output

0005h 6 Trigger1 Output Place Bit0

0005h 7 Trigger1 Output Place Bit1

0006h 0 Safety Relay Reset

0006h 1 Front Cover Lock

0006h 2 Rear Cover Lock

0006h 5 Internal Illumination ON

0006h 6 SERVO ON Permission1

0006h 7 SERVO ON Permission2

0008h 1

Feeder Bank Board Power Supply(F)/(Right Front) ON

0008h 3 Feeder Bank Power (Right Front) 5V ON

0008h 5 Feeder Bank Power Supply(F)/(Right Front) 24V ON

0008h 6

Feeder Bank Board Power Supply(R)/(Right Rear) ON

0008h 7 Feeder Bank Board Power Supply(Left Rear) ON

0009h 0 Feeder Bank Power (Right Rear) 5V ON

0009h 1 Feeder Bank Power (Left Rear) 5V ON

0009h 2 Feeder Bank Power Supply(R)/(Right Rear) 24V ON

0009h 3 Feeder Bank Power (Left Rear) 24V ON

0009h 4 Tape Cutter Open (F)

0009h 5 AMF Vacuum Stage / Tape Cutter Close (F)

0009h 6 Tape Cutter Open (R)

0009h 7 Tape Cutter Close (R)

地址位数名称

000Ah 1 CFB(F)/(Right Front) Unlock

000Ah 2 CFB(R)/(Right Rear) Unlock

000Ah 4 ACTIVE SW (F)

000Ah 6

ACTIVE SW (R) / CTF(Right Rear) Draw-in Cylinder ON

000Ch 0 Quick Clamp (Left) Up

000Ch 1 PCB S Stopper

000Ch 2

Conveyor Sensor POWER 2 / PCB Sensor (Right) Power

000Ch 3 PCB L Stopper

000Ch 4 Push-up Plate ON

000Ch 5 Quick Clamp UP

000Ch 7 Quick Clamp (Right) Up

000Dh 0 ANC A Open

000Dh 1

Conveyor1 Sensor POWER / PCB Sensor (Left) Power

000Dh 3 START SW (U-turn Conveyor Left)

000Dh 4 PCB Vacuum

000Dh 5 PCB Vacuum Break

000Dh 6 START SW (U-turn Conveyor Right)

000Eh 0 Conveyor1 Alarm Reset

000Eh 1 Conveyor2 Alarm Reset

000Eh 2 Conveyor3 Alarm Reset

000Eh 5 Conveyor1 Rotation Direction

000Eh 6 Conveyor2 Rotation Direction

000Eh 7 Conveyor3 Rotation Direction

000Fh 2 Conveyor1 Rotation

000Fh 3 Conveyor2 Rotation

000Fh 4 Conveyor3 Rotation

0010h 0 Conveyor1 Speed Data Bit0

0010h 1 Conveyor1 Speed Data Bit1

0010h 2 Conveyor1 Speed Data Bit2

0010h 3 Conveyor1 Speed Data Bit3

0010h 4 Conveyor1 Speed Data Bit4

0010h 5 Conveyor1 Speed Data Bit5

0010h 6 Conveyor1 Speed Data Bit6

0010h 7 Conveyor1 Speed Data Bit7

0011h 0 Conveyor2 Speed Data Bit0

0011h 1 Conveyor2 Speed Data Bit1

0011h 2 Conveyor2 Speed Data Bit2

0011h 3 Conveyor2 Speed Data Bit3

0011h 4 Conveyor2 Speed Data Bit4

0011h 5 Conveyor2 Speed Data Bit5

0011h 6 Conveyor2 Speed Data Bit6

0011h 7 Conveyor2 Speed Data Bit7

0012h 0 Conveyor3 Speed Data Bit0

0012h 1 Conveyor3 Speed Data Bit1

4-5

<S10_1. Mi11 (OUT)>

地址位数名称

0012h 2 Conveyor3 Speed Data Bit2

0012h 3 Conveyor3 Speed Data Bit3

0012h 4 Conveyor3 Speed Data Bit4

0012h 5 Conveyor3 Speed Data Bit5

0012h 6 Conveyor3 Speed Data Bit6

0012h 7 Conveyor3 Speed Data Bit7

0016h 0 Side Light for Fixed Camera: Start Delay Time Bit0

0016h 1 Side Light for Fixed Camera: Start Delay Time Bit1

0016h 2 Side Light for Fixed Camera: Start Delay Time Bit2

0016h 3 Side Light for Fixed Camera: Start Delay Time Bit3

0016h 4 Side Light for Fixed Camera: Start Delay Time Bit4

0016h 5 Side Light for Fixed Camera: Start Delay Time Bit5

0016h 6 Side Light for Fixed Camera: Start Delay Time Bit6

0016h 7 Side Light for Fixed Camera: Start Delay Time Bit7

0017h 0 Side Light for Fixed Camera: Start Delay Time Bit8

0017h 1 Side Light for Fixed Camera: Start Delay Time Bit9

0017h 2 Side Light for Fixed Camera: Start Delay Time Bit10

0017h 3 Side Light for Fixed Camera: Start Delay Time Bit11

0017h 4 Side Light for Fixed Camera: Start Delay Time Bit12

0017h 5 Side Light for Fixed Camera: Start Delay Time Bit13

0017h 6 Side Light for Fixed Camera: Start Delay Time Bit14

0017h 7 Side Light for Fixed Camera: Start Delay Time Bit15

0018h 0

Diffuse Light for Fixed Camera: Start Delay Time Bit0

0018h 1

Diffuse Light for Fixed Camera: Start Delay Time Bit1

0018h 2

Diffuse Light for Fixed Camera: Start Delay Time Bit2

0018h 3

Diffuse Light for Fixed Camera: Start Delay Time Bit3

0018h 4

Diffuse Light for Fixed Camera: Start Delay Time Bit4

0018h 5

Diffuse Light for Fixed Camera: Start Delay Time Bit5

0018h 6

Diffuse Light for Fixed Camera: Start Delay Time Bit6

0018h 7

Diffuse Light for Fixed Camera: Start Delay Time Bit7

0019h 0

Diffuse Light for Fixed Camera: Start Delay Time Bit8

0019h 1

Diffuse Light for Fixed Camera: Start Delay Time Bit9

0019h 2

Diffuse Light for Fixed Camera: Start Delay Time Bit10

0019h 3

Diffuse Light for Fixed Camera: Start Delay Time Bit11

0019h 4

Diffuse Light for Fixed Camera: Start Delay Time Bit12

0019h 5

Diffuse Light for Fixed Camera: Start Delay Time Bit13

0019h 6

Diffuse Light for Fixed Camera: Start Delay Time Bit14

0019h 7

Diffuse Light for Fixed Camera: Start Delay Time Bit15

001Ah 0

Coaxial Light for Fixed Camera: Start Delay Time Bit0

001Ah 1

Coaxial Light for Fixed Camera: Start Delay Time Bit1

001Ah 2

Coaxial Light for Fixed Camera: Start Delay Time Bit2

001Ah 3

Coaxial Light for Fixed Camera: Start Delay Time Bit3

001Ah 4

Coaxial Light for Fixed Camera: Start Delay Time Bit4

001Ah 5

Coaxial Light for Fixed Camera: Start Delay Time Bit5

001Ah 6

Coaxial Light for Fixed Camera: Start Delay Time Bit6

001Ah 7

Coaxial Light for Fixed Camera: Start Delay Time Bit7

001Bh 0

Coaxial Light for Fixed Camera: Start Delay Time Bit8

001Bh 1

Coaxial Light for Fixed Camera: Start Delay Time Bit9

001Bh 2

Coaxial Light for Fixed Camera: Start Delay Time Bit10

001Bh 3

Coaxial Light for Fixed Camera: Start Delay Time Bit11

地址位数名称

001Bh 4

Coaxial Light for Fixed Camera: Start Delay Time Bit12

001Bh 5

Coaxial Light for Fixed Camera: Start Delay Time Bit13

001Bh 6

Coaxial Light for Fixed Camera: Start Delay Time Bit14

001Bh 7

Coaxial Light for Fixed Camera: Start Delay Time Bit15

001Ch 0 Side Light for Fixed Camera 1: Time Bit0

001Ch 1 Side Light for Fixed Camera 1: Time Bit1

001Ch 2 Side Light for Fixed Camera 1: Time Bit2

001Ch 3 Side Light for Fixed Camera 1: Time Bit3

001Ch 4 Side Light for Fixed Camera 1: Time Bit4

001Ch 5 Side Light for Fixed Camera 1: Time Bit5

001Ch 6 Side Light for Fixed Camera 1: Time Bit6

001Ch 7 Side Light for Fixed Camera 1: Time Bit7

001Dh 0 Side Light for Fixed Camera 1: Time Bit8

001Dh 1 Side Light for Fixed Camera 1: Time Bit9

001Dh 2 Side Light for Fixed Camera 1: Time Bit10

001Dh 3 Side Light for Fixed Camera 1: Time Bit11

001Dh 4 Side Light for Fixed Camera 1: Time Bit12

001Dh 5 Side Light for Fixed Camera 1: Time Bit13

001Dh 6 Side Light for Fixed Camera 1: Time Bit14

001Dh 7 Side Light for Fixed Camera 1: Time Bit15

001Eh 0 Side Light for Fixed Camera 1: PWM Bit0

001Eh 1 Side Light for Fixed Camera 1: PWM Bit1

001Eh 2 Side Light for Fixed Camera 1: PWM Bit2

001Eh 3 Side Light for Fixed Camera 1: PWM Bit3

001Eh 4 Side Light for Fixed Camera 1: PWM Bit4

001Eh 5 Side Light for Fixed Camera 1: PWM Bit5

001Eh 6 Side Light for Fixed Camera 1: PWM Bit6

001Eh 7 Side Light for Fixed Camera 1: PWM Bit7

0020h 0 Diffuse Light for Fixed Camera 1: Time Bit0

0020h 1 Diffuse Light for Fixed Camera 1: Time Bit1

0020h 2 Diffuse Light for Fixed Camera 1: Time Bit2

0020h 3 Diffuse Light for Fixed Camera 1: Time Bit3

0020h 4 Diffuse Light for Fixed Camera 1: Time Bit4

0020h 5 Diffuse Light for Fixed Camera 1: Time Bit5

0020h 6 Diffuse Light for Fixed Camera 1: Time Bit6

0020h 7 Diffuse Light for Fixed Camera 1: Time Bit7

0021h 0 Diffuse Light for Fixed Camera 1: Time Bit8

0021h 1 Diffuse Light for Fixed Camera 1: Time Bit9

0021h 2 Diffuse Light for Fixed Camera 1: Time Bit10

0021h 3 Diffuse Light for Fixed Camera 1: Time Bit11

0021h 4 Diffuse Light for Fixed Camera 1: Time Bit12

0021h 5 Diffuse Light for Fixed Camera 1: Time Bit13

0021h 6 Diffuse Light for Fixed Camera 1: Time Bit14

0021h 7 Diffuse Light for Fixed Camera 1: Time Bit15

0022h 0 Diffuse Light for Fixed Camera 1: PWM Bit0

0022h 1 Diffuse Light for Fixed Camera 1: PWM Bit1

0022h 2 Diffuse Light for Fixed Camera 1: PWM Bit2

0022h 3 Diffuse Light for Fixed Camera 1: PWM Bit3

0022h 4 Diffuse Light for Fixed Camera 1: PWM Bit4

0022h 5 Diffuse Light for Fixed Camera 1: PWM Bit5
