4.3.3 Machine Verification – Keeping Programs Stored on the Station
Downloaded programs for machine verification and placement force can be stored permanently on
the station. Thus, only one download is necessary and the programs can be recalled for further
measurements. If the configuration changes (= new ACT programm name), the programs can be
removed manually from the station and the current ones downloaded from SIPLACE Pro. If the
same program is downloaded again, it will be overwritten at the station.
The respective board has to be accordingly marked in SIPLACE Pro. For such boards a lock icon is
then displayed in a separate column in the Select Board dialog on the station software GUI. There
is also a button with which the board can be deleted from the station.
Figure 4-10: Permanent program type
Additionally, a filter can be set to display all items or only non-permanent or permanent items.
4.3.4 Placement Head Verification
Additionally to the C&P20 A, C&P20 M, C&P20 P and CPP placement heads, the Twin Head can
now also be verified within the Placement head verification.
4.3.5 Camera Verification – New Term
Camera verification has been introduced as a new term. The camera verification is performed
with the FCCS (Field Camera Calibration System) tool.
The entry point for the camera verification has been moved from the Service tool to the
Verification view and can be accessed at the Machine service activity level. The button is also
visible for lower activity levels.
Station Software 709.1 / Version Description Ausgabe 05/2016 Edition
18
4.3.6 Camera Connections – Checking Gig E Interface
A new GUI dialog will provide information about the current health states of permanently installed
Gig E cameras and all intermediate stations.

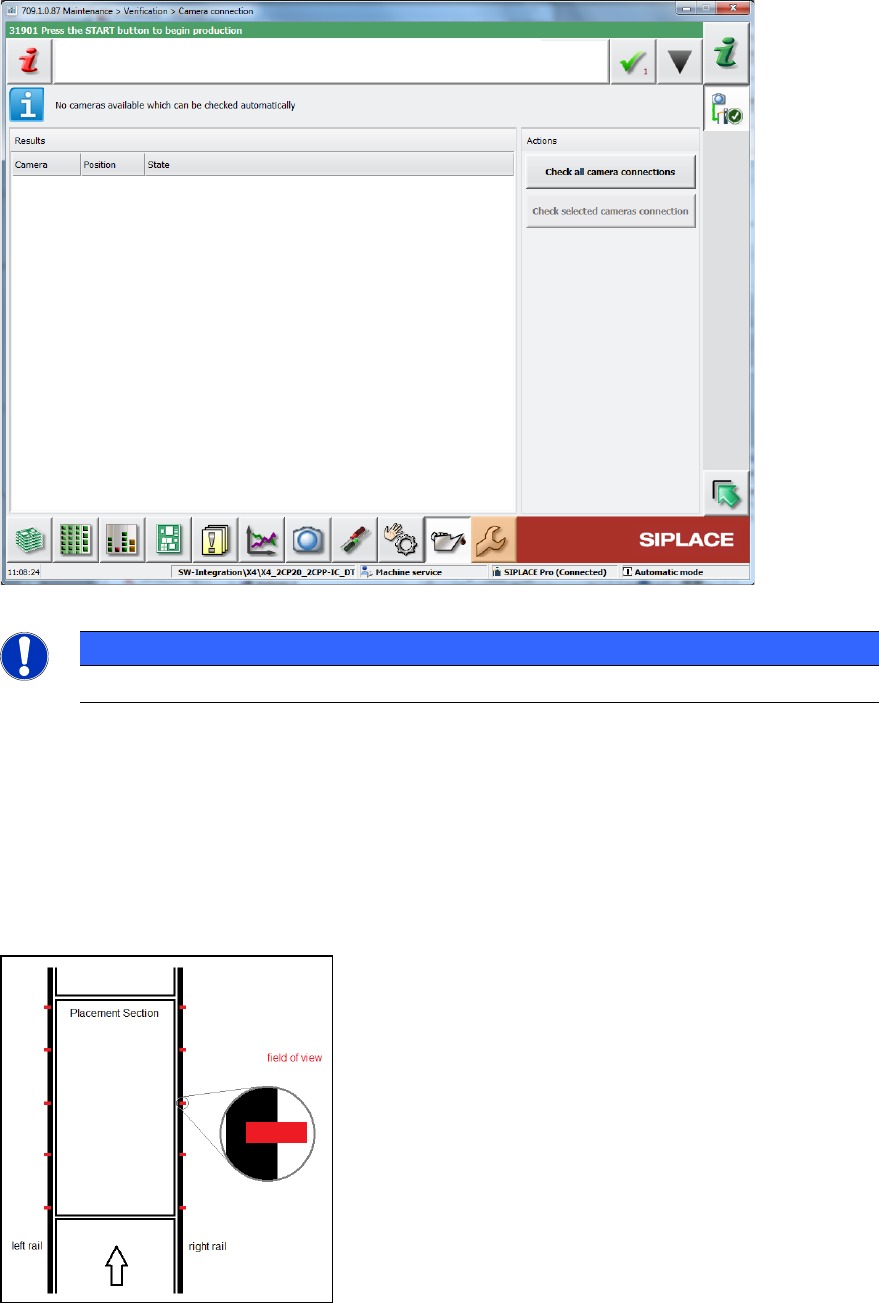

Figure 4-11: Checking camera connections
NOTICE
This feature does not support checking Coplan sensors.
4.3.7 Conveyor Rail Verification
Compatible mode: Complete
With the Conveyor rail verification button in the Verification view, the parallellism of the
conveyor rails can be checked. For this, several X positions per processing area (currently 5) are
displayed at the outer edges of the rails.
Figure 4-12: Displayed X positions
Station Software 709.1 / Version Description Ausgabe 05/2016 Edition
19
With the Capture images button, pictures are taken of the positions by the board camera.
The measurement is performed for one lane only and the results are displayed on the GUI. For
dual conveyors, there will be two independent measurements and result views. The pictures have
to be inspected by the operator.
It is possible to perform the measurements with boards in the conveyor, but not during production.
The machine must be stopped before the measurements can be started.
With the Generate report button, a report can be created that contains a screenshot of the page.

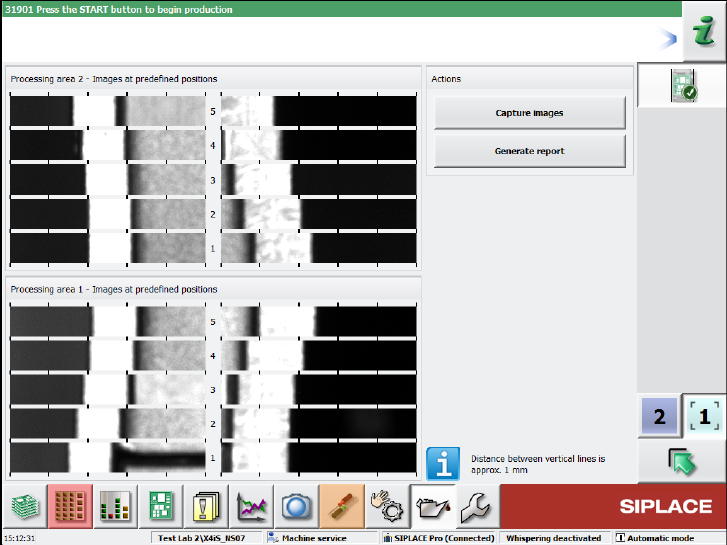

Figure 4-13: Result view of a machine with two processing areas
The report is stored at the station.
