Station Software 709.1 / Version Description Ausgabe 05/2016 Edition
21
4.3.9 Power Supplies
The SMPS (Switched Mode Power Supply) diagnosis has been moved to the Maintenance –
Verification view.

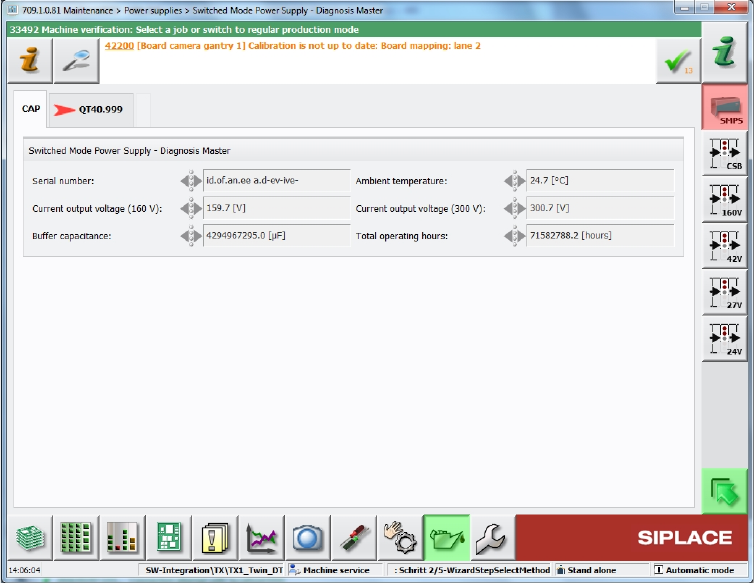

Figure 4-15: SMPS diagnosis
Station Software 709.1 / Version Description Ausgabe 05/2016 Edition
22
4.3.10 Feeder Verification
The pickup position of a tape feeder in the machine can be checked in the new Feeder
verification dialog. This check can be accessed in the Verification view from the Advanced
production activity level. The machine must have been calibrated.
After the Feeder verification button has been pressed, the following dialog box is displayed.

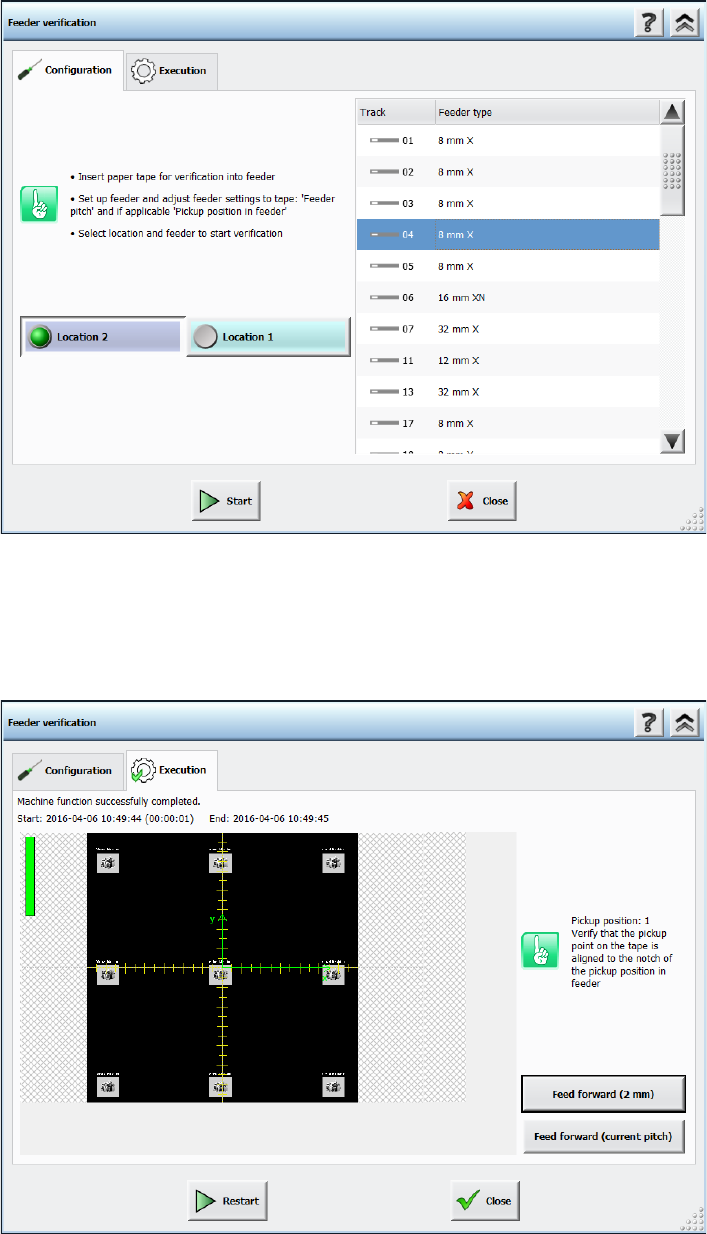

Figure 4-16: Preparing feeder verification
The operator has to prepare the feeder according to the instructions in the dialog box before
starting the verification.
After start, an image is taken by the camera at the pickup point of the feeder and displayed on the
GUI.
Figure 4-17: Verifying result
Station Software 709.1 / Version Description Ausgabe 05/2016 Edition
23
The operator has to verify the result. The center of the image (yellow cross hair) marks the pickup
point as seen from the coordinate system of the machine. It is supposed to align with the notch of
the pickup position on the feeder.
The operator can perform Feed forward (current pitch) and – if supported by the feeder – Feed
forward (2 mm) of the tape in the feeder. Thereafter a new image is triggered automatically.
If this adjustment is triggered via the feeder hardware button, the operator has to press the Restart
button to get a new image.
The operator can change back to the Configuration tab and select another feeder for verification
without exiting the function.
4.3.11 Verification Reports
The verification reports are stored as PDF files to the predefined
C:\Sirio\Work\MaintenanceReports directory from where they can be collected by SIPLACE Pro
Line Diagnostics. There is no Save to … file selection box when generating the reports any more.
The station software deletes maintenance reports of the same type that are older than 90 days
automatically.
4.3.12 Preventive Maintenance – Tape Cutter
With the Check tape cutters button in the Maintenance – Preventive Maintenance view, tape
cutter operation times and limits are displayed, evaluated and reported.
Under Tape cutters in the Manual operations, min/max limit values will be displayed in addition to
the measured values.
4.3.13 Preventive Maintenance – Nozzles
A new button Prepare for nozzle maintenance has been added. All actions then apply to the
selected placement heads. After this button has been pressed, the nozzles of the selected heads
will be returned to the nozzle changer, selected heads will be moved to the service position.
The Pickup nozzles button will be extended by a confirmation dialog if the Prepare for nozzle
maintenance button was pressed before. Here, the operator can confirm that all nozzles have
been cleaned or not. In both cases the nozzles will be picked up.
These actions will not lead to an entry in the report list.
Please also refer to section 4.4.
4.3.14 Preventive Maintenance – Improved Usability
If a function cannot be performed, the corresponding button has been disabled, e.g.:
Check tape cutters button
If all locations are deselected, the Start button is disabled.
Pick up nozzle button
Disabled if no nozzles are preset or nozzles are completely on the head.
